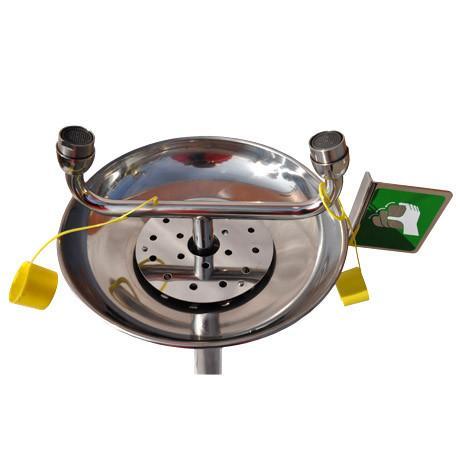

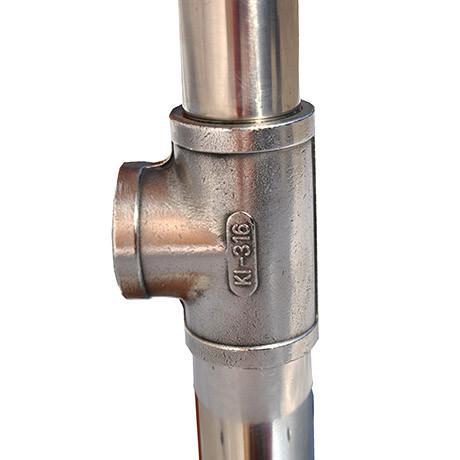

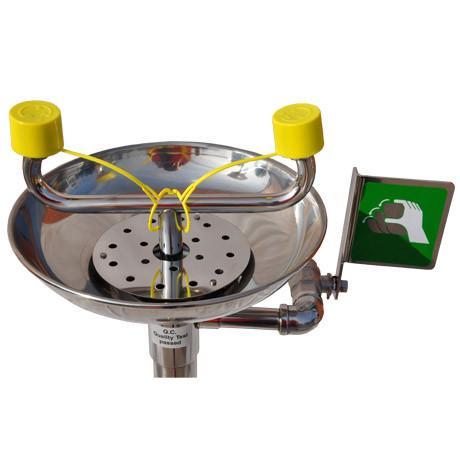

All the pipe work and fittings are manufactured from stainless steel as are the eyewash assembly and eyewash bowl. The bowl is fitted with two high flow aerated low pressure outlets fitted with automatic opening dust covers.

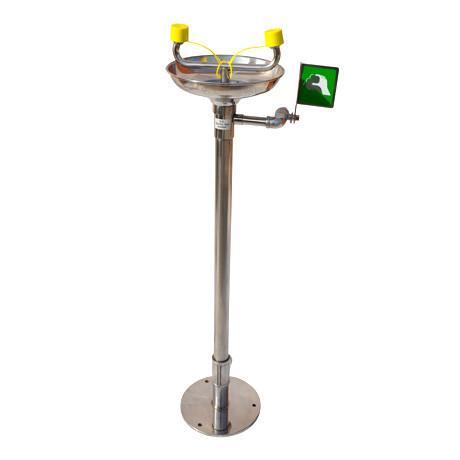

This pedestal mounted eyewash has been designed to meet and exceed the internationally recognised standards: EN15154 parts 1 & 2, DIN12899.3 and ANSI Z358.1.
|Water inlet pressure:
||Recommended 2 bar with a maximum of 8 bar - please notify us prior to ordering if your water pressure is below 1.5 bar
|Eyewash flow rate:
||Full bore ½”
||80 x 27 x 13cm
Download a datasheet for PMEW-SS
Download a technical drawing for PMEW-SS
