The galvanised steel pipe work and brass fittings are protected with an anti-corrosive polyamide 11 high visibility yellow plastic coating which provides good resistance to acids, bases, seawater and oils.

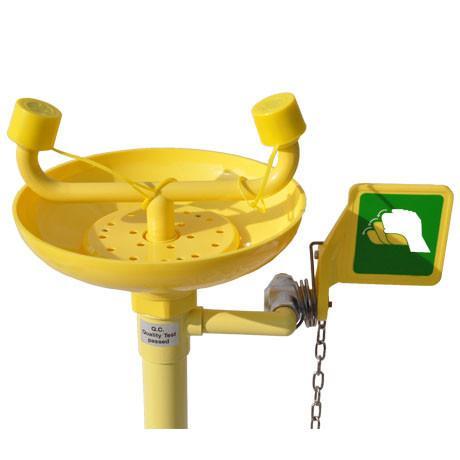

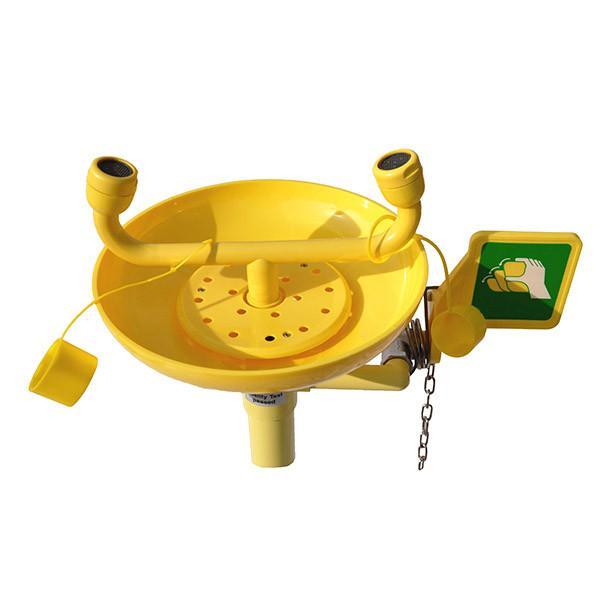

The eye wash assembly and eye wash bowl are manufactured from ABS reinforced plastic and the bowl is fitted with two high flow, aerated low pressure outlets fitted with automatic opening dust covers.

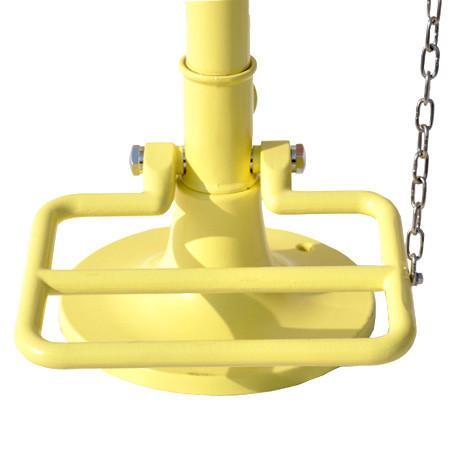

Activation of this eye wash is by means of either pushing the hand paddle or standing on the foot treadle.

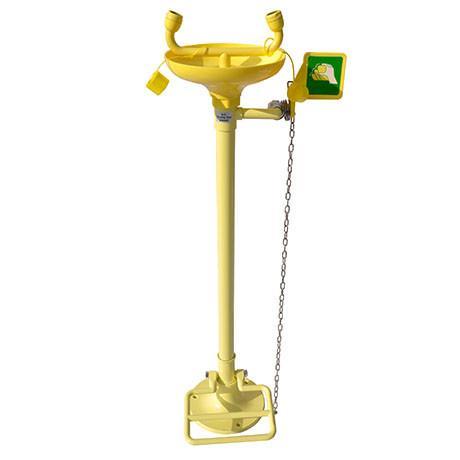

This pedestal mounted dual control eye wash has been designed to meet and exceed the internationally recognised standards: EN15154 parts 1 & 2, DIN12899.3 and ANSI Z358.1.
|Water inlet pressure:
||Recommended 2 bar with a maximum of 8 bar - please notify us prior to ordering if your water pressure is below 1.5 bar
|Eyewash flow rate:
||Push paddle & foot treadle
||Full bore ½”
||80 x 27 x 13cm
Download a datasheet for PMEW-DC
Download a technical drawing for PMEW-DC
Explore our Eye Wash range
