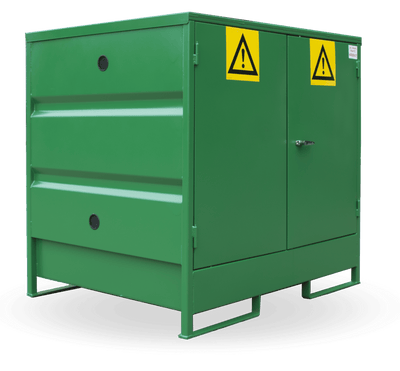

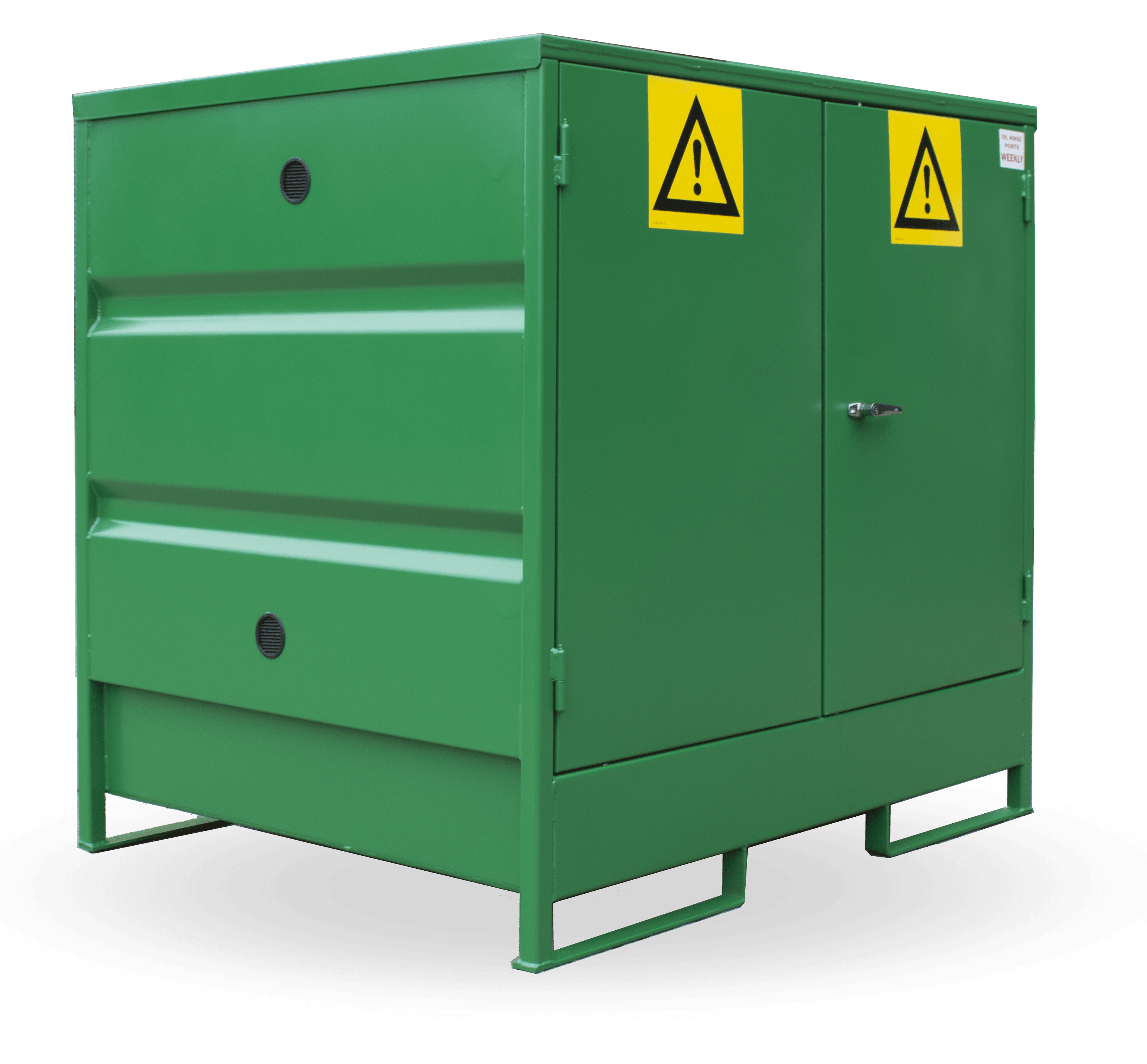

Vertical Bunded Store - VD4D
For 4 Drums

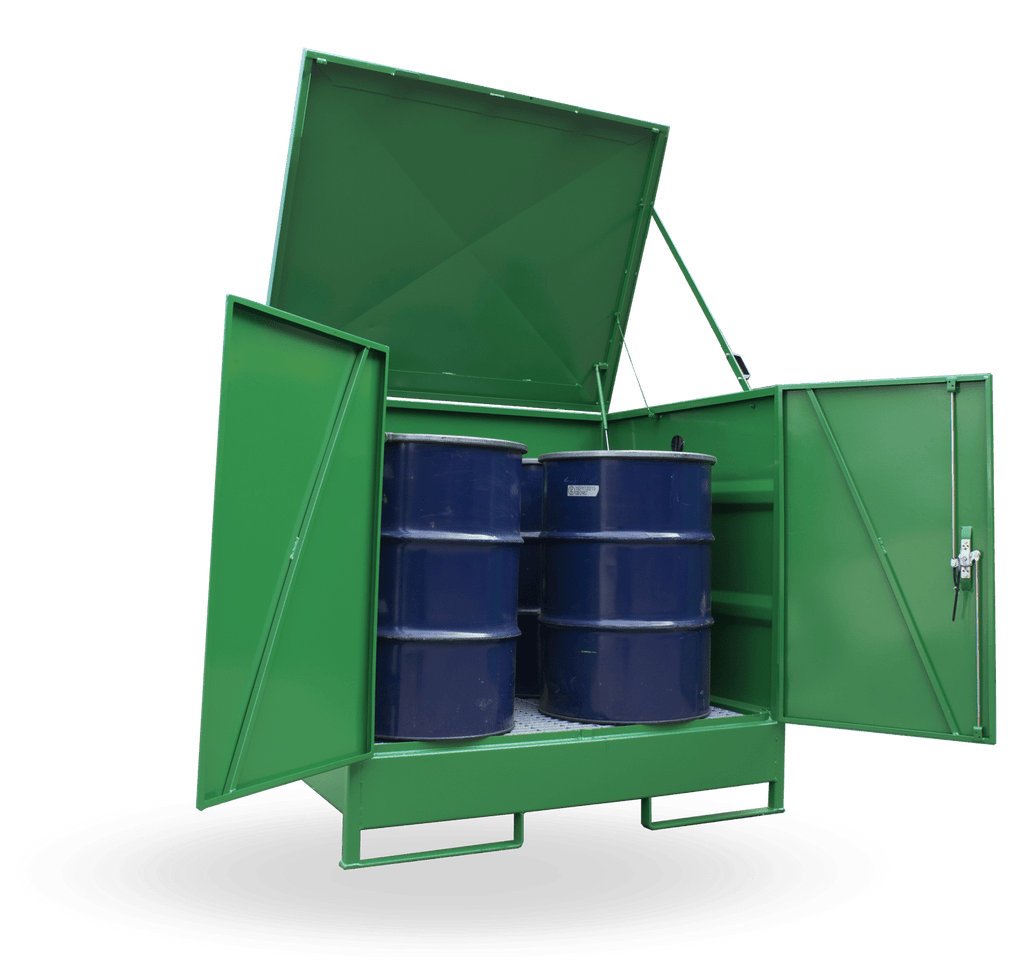

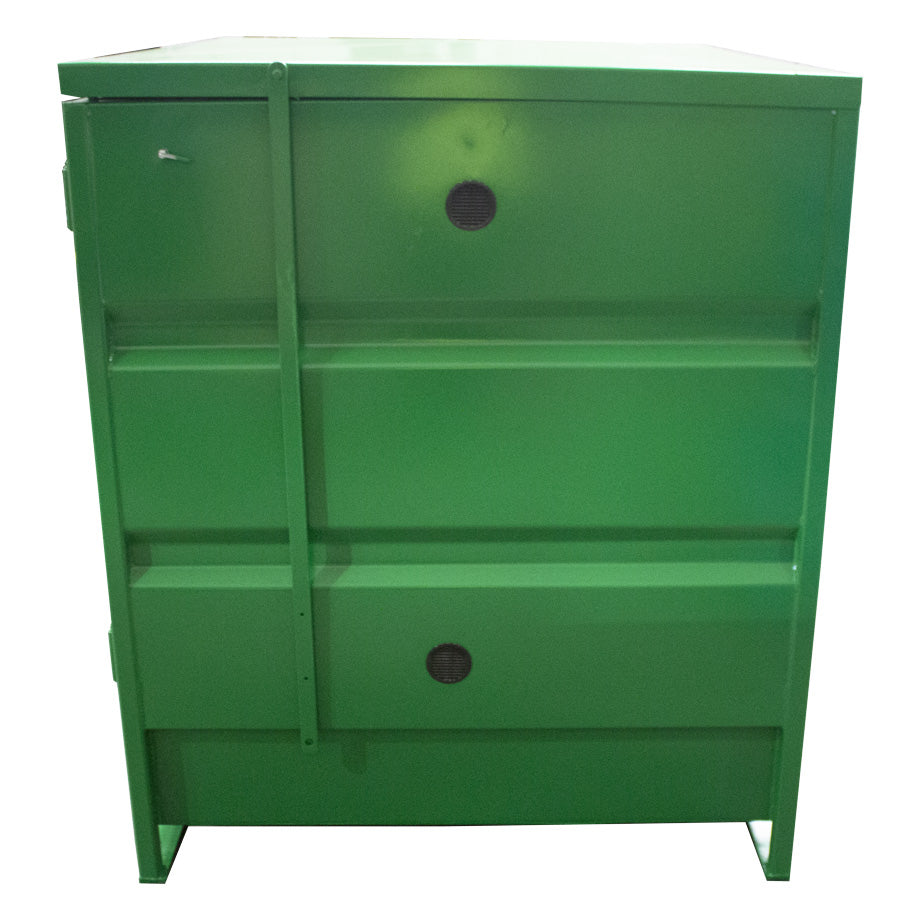

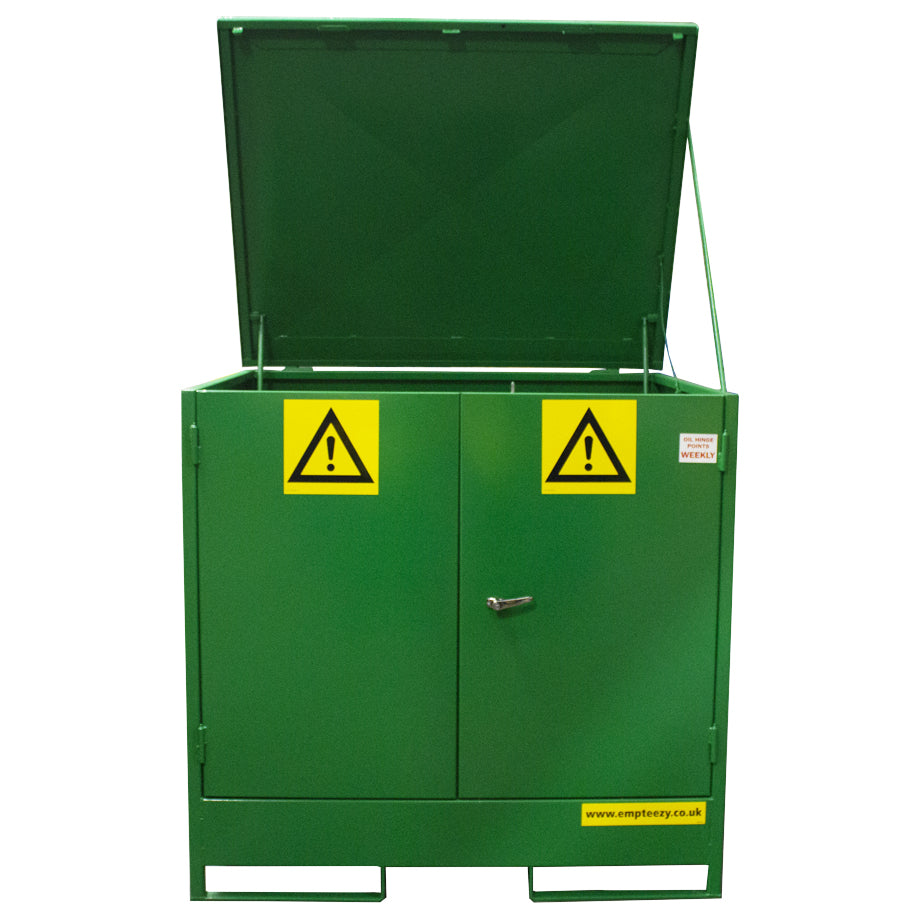

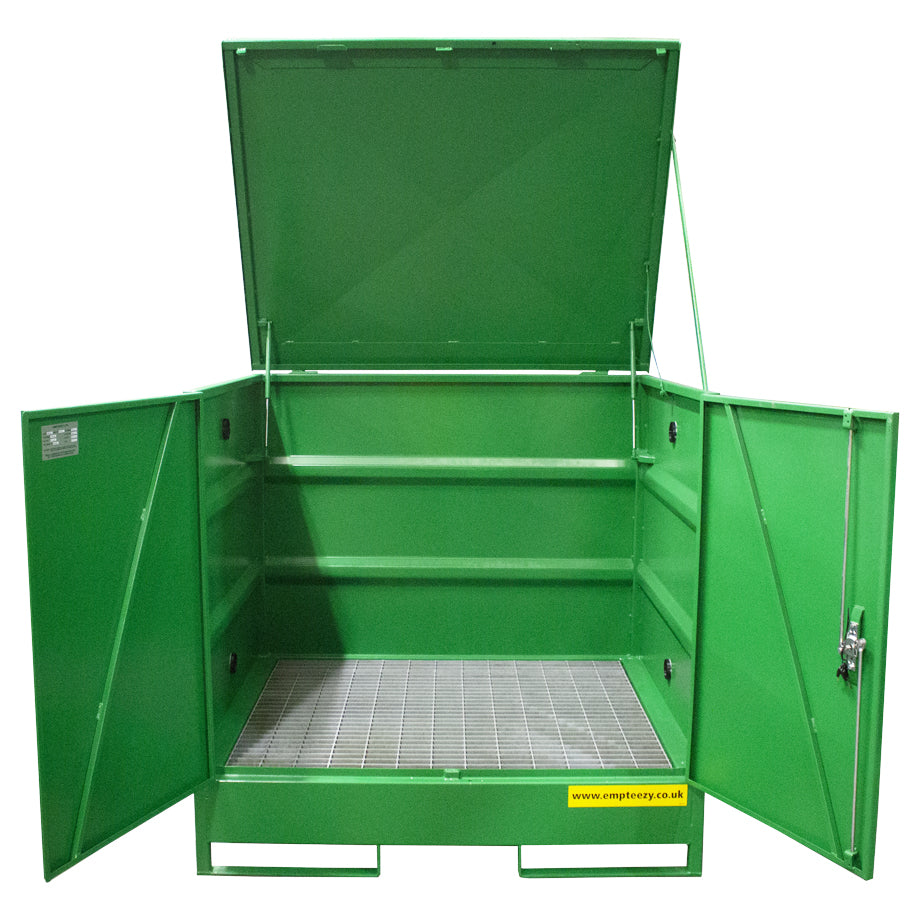

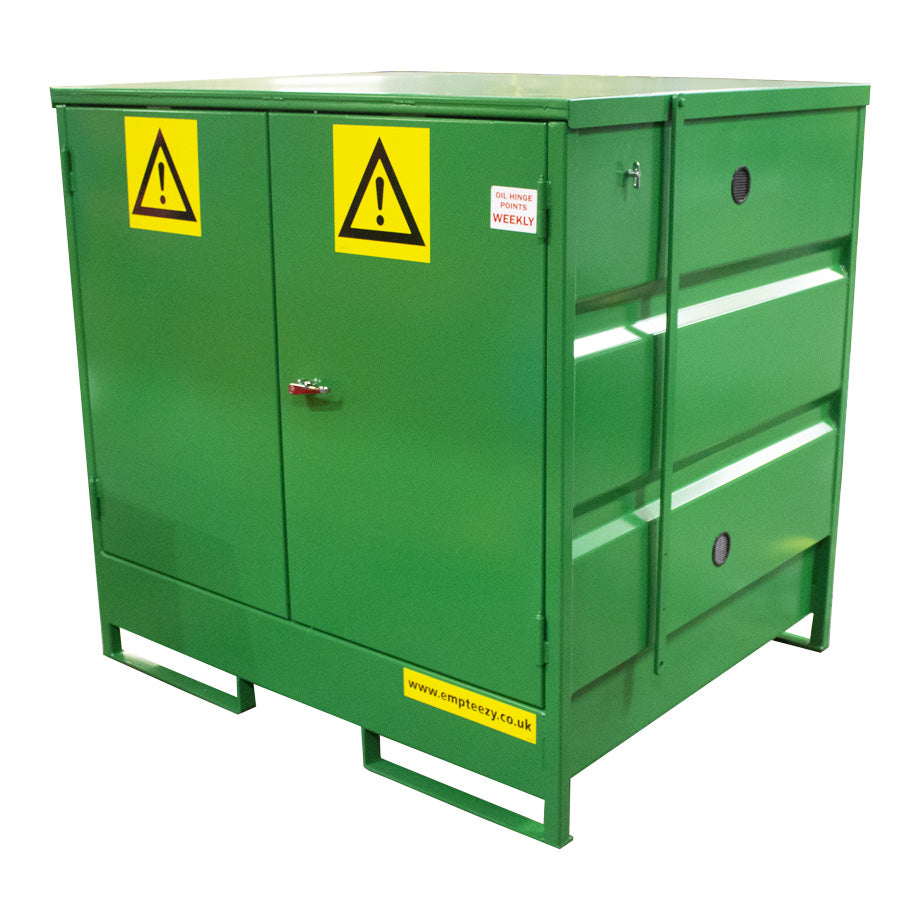

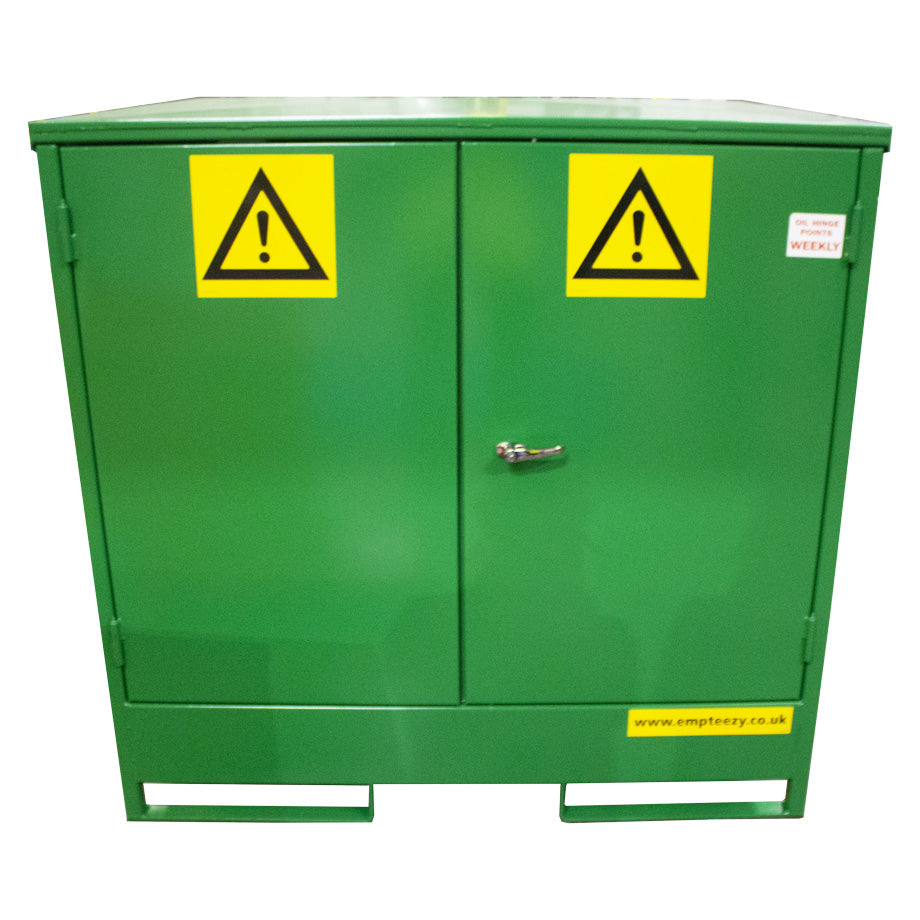

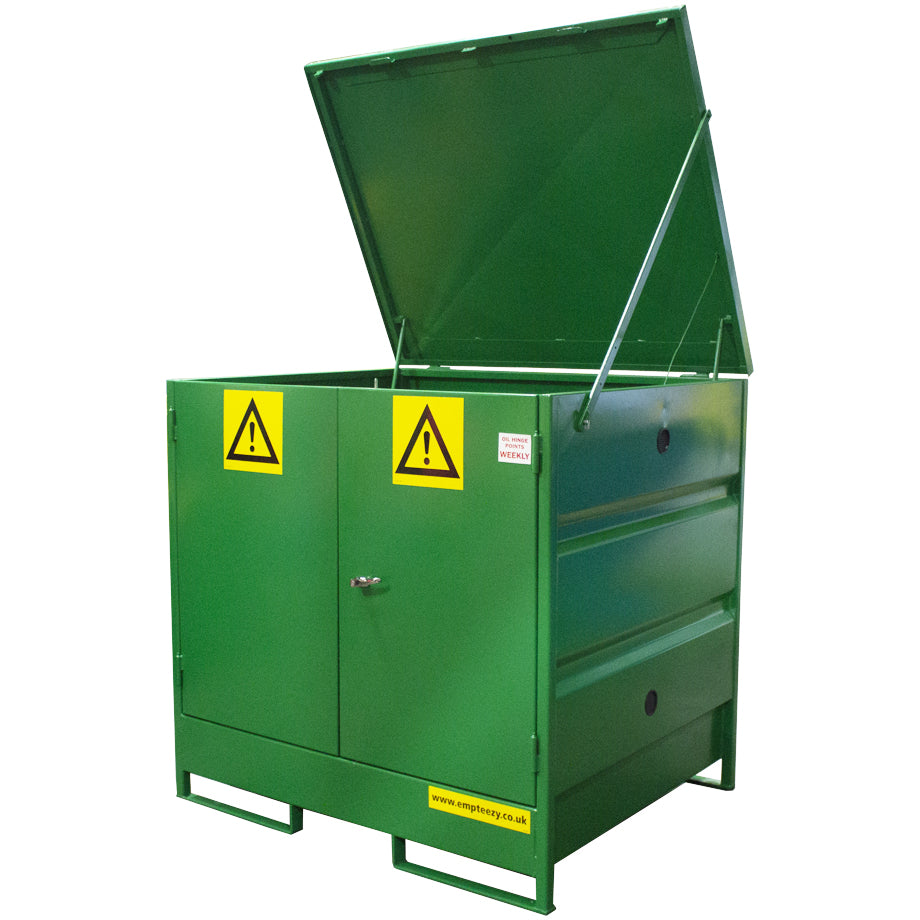

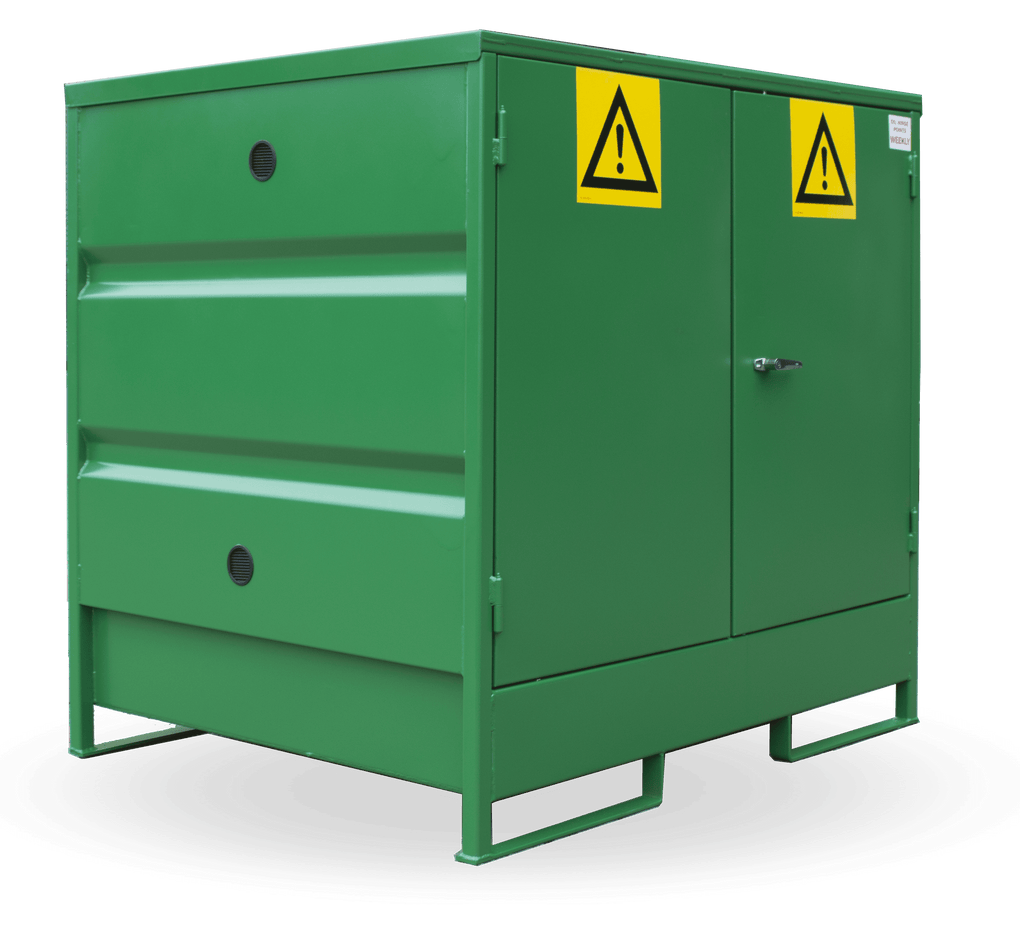

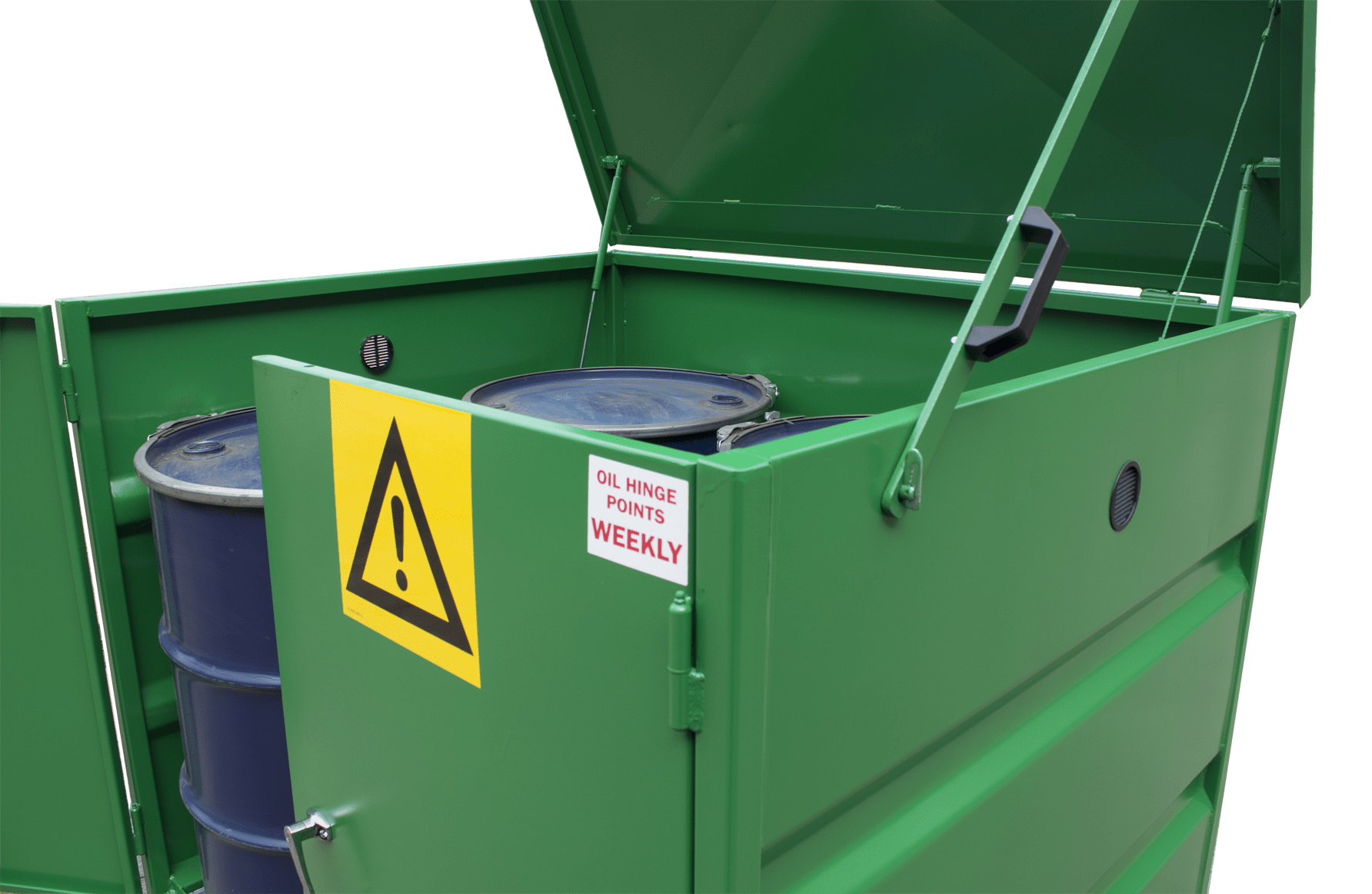

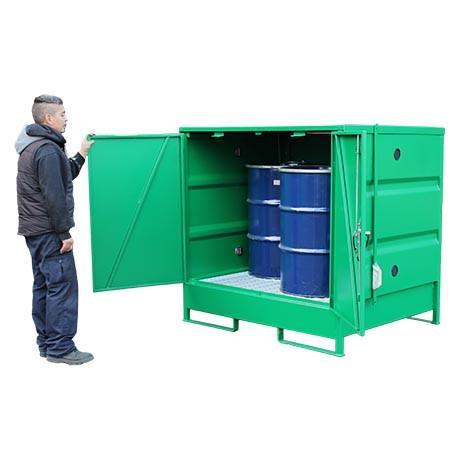

Manufactured from 2mm and 3mm steel plate with a fully seam welded sump which fully complies with all the current UK regulations relating to sump capacities the four drums sit on galvanised steel removable grid mesh panels and access to the storage area is via a pair of hinged doors (fitted with vents) and a lift-up lid fitted which is fitted with a gas strut to assist with opening and closing. To aid movement by fork lift truck and keep the underside of the sump off the floor and reduce the risk of corrosion the unit is fitted with forklift truck hoops and prior to painting the unit is fully shot blasted to provide a clean and keyed surface.
This model can hold 4 x 205ltr drum.
This unit will be delivered by an HGV, possibly articulated therefore please ensure that a vehicle of this type can access your premises before ordering and advise us accordingly.
You will require an appropriate size/capacity fork lift truck to offload this item from the delivery vehicle. Our standard delivery doesn’t include any offloading.
|External size:||L1500 x W1250 x H1470mm|
|Number of containers:||Four 205ltr drums|
|Colour:||Green RAL 6029|
|Type of doors:||2 hinged & a lift-up lid|
|Type of door lock:||Rod & lever with keyed handle|
|Access aperture:||1430mm wide|
A high build, quick drying primer/topcoat paint specifically designed for use directly on to metal or bare steel, this paint contains zinc phosphate anti-corrosive pigments and is applied with a minimum dry film thickness of 75 microns.
