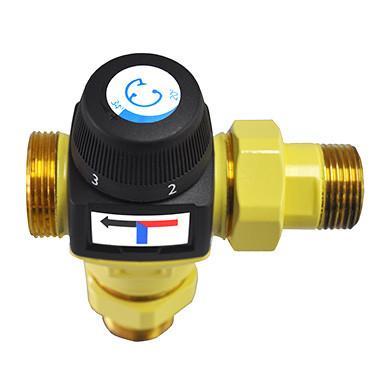

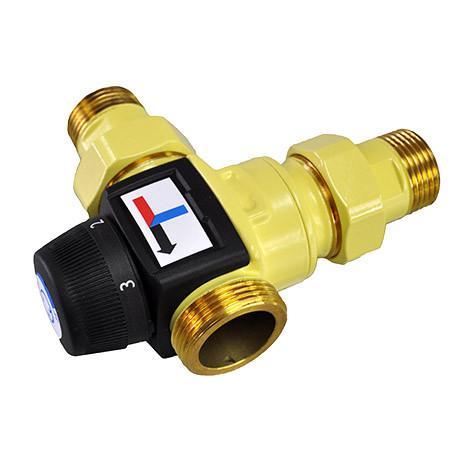

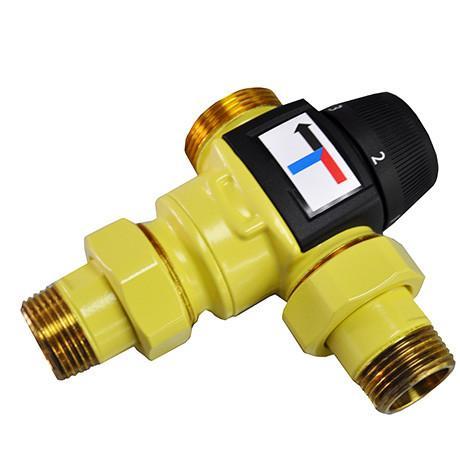

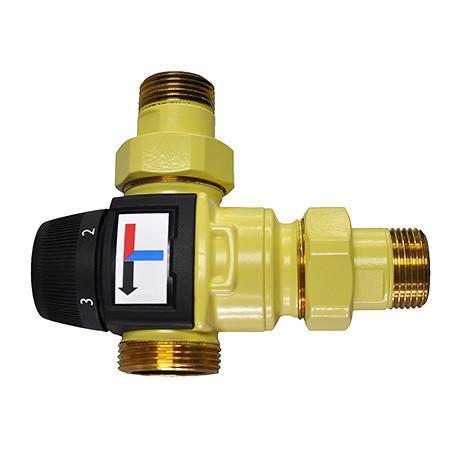

A hot and cold water mixing valve providing tepid water from 20°C to 43°C (adjustable) at a minimum rate of 122lpm at 2 bar. Should the hot water supply fail the systems internal by-pass continues to deliver cold water at a minimum of 105lpm at 2 bar. If the cold water supply fails the system shuts the hot water supply off to prevent scalding.
||1½” Male with optional kit including two 1” male adapters with check valves on the inlets.
|Water inlet pressure (hot & cold):
||Recommended 2 bar with a maximum of 8 bar - please notify us prior to ordering if your water pressure is below 1.5 bar.
|Hot water supply temperature:
||Optimum 50-70°C (Maximum 100°C)
|Cold water supply temperature:
||5-10°C (Maximum 23°C)
|Fully closed temperature:
