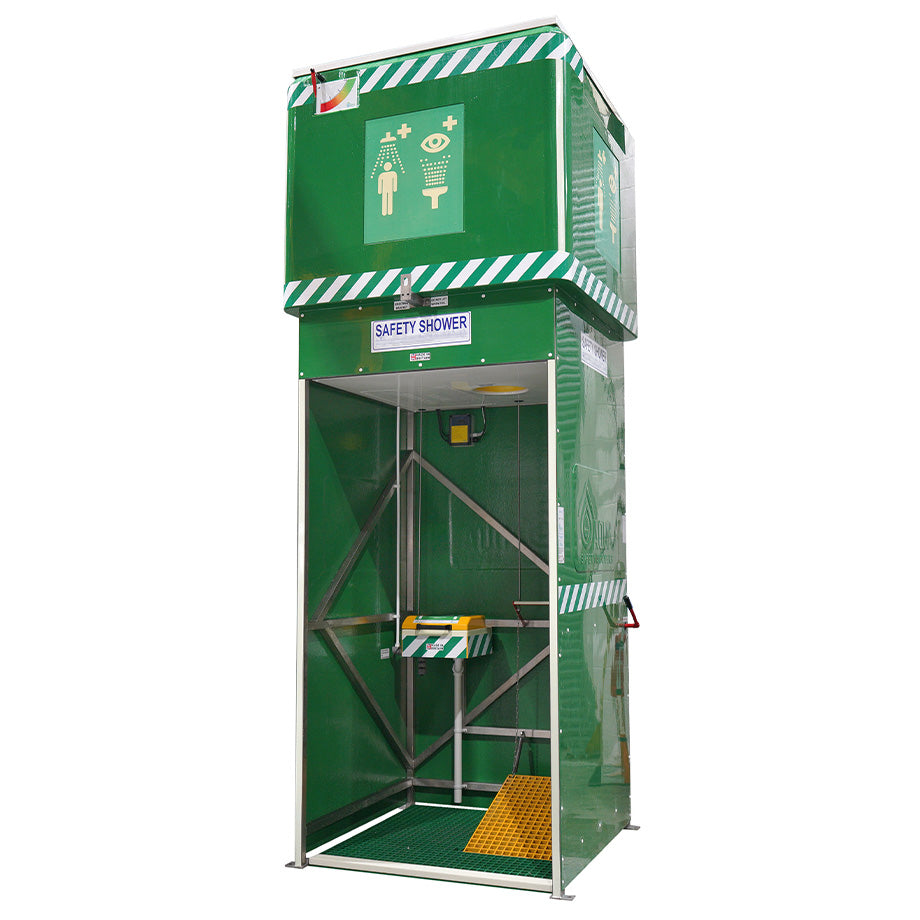

2000ltr Vertical Emergency Tank Shower - SE-VTS-1
1590mm x 1480mm x 3930mm H
Thanks for getting in touch. We will get back to you as soon as possible
An emergency tank shower for use where a constant water supply or adequate water pressure is unavailable, this emergency safety shower is fully compliant with ANSI Z358.1 providing a guaranteed 15 minutes of water flow.
ANSI Z358.1 requires that shower valves be of simple operation, turning from off, to on in one second or less, and providing hands-free operation once activated. Self-closing shower valves do not meet the ANSI standard and should be replaced.
Supported on a 40mm x 40mm x 3mm hot dip galvanised (provides corrosion protection) carbon steel, square tubular frame with bolt down fixing brackets, the moulded polyethylene 2000ltr water tank is covered in 40mm reflective Kingspan Thermapitch® TP10 rigid polyurethane foam, insulation board (0.022Wm.k thermal conductivity) and the tank structure is further protected by a shroud complete with warning signage. The heating element sits in a sump to ensure it is covered even if the tank is completely empty and the unit is fitted with a test activation handle which is accessed from outside the shower area.
Why not explore our range of water treatment chemicals?
|Dimensions:||1590mm x 1480mm x 3930mm H (overall height)|
|Weights:||672kg un-laden & 2,872kg filled|
|Heating:||2.25" BSP, 230v 3kw rated, wired to rotary isolation switch|
|Flow rate:||75.7lpm over 15 minute duration|
|Shower head:||Polished stainless steel|
|Wetted parts:||Manufactured from non-ferrous materials|
|Test activation handle:||Fitted outside the shower area|
|Visual water level indicator:||Fitted on front face of tank shroud|
Tank Shower Accessories
Additional Tank Shower Accessories
|Stainless Steel Frame||Polished stainless steel safari roof|
|Bunded collection bund with 2" BSP outlet available in galvansided or stainless steel||Water level graphic display|
|Treadle activator for main shower||Treadle activator for eyewash basin|
|6kW heater for areas where ambient temperature is below freezing||Chiller unit for areas with high ambient temperatures|
|Shower area lighting complete with PIR activation|
