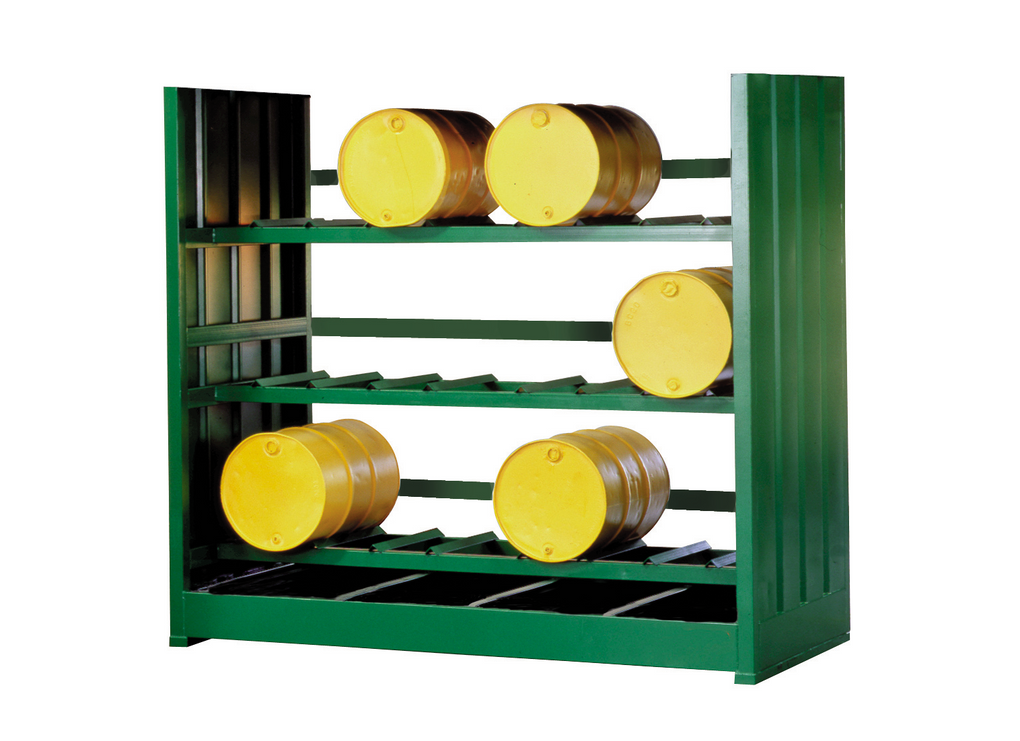

Designed for the safe and fully bunded indoor storage of horizontal 205ltr drums across three levels, the base of this model is manufactured from 3mm steel sheet with RHS cross members, pressed ribs and a heavy duty RHS end frame with 2mm corrugated panels. Above the fully seam welded sump, which fully complies with all the current UK regulations relating to sump capacities are three levels of drum racks (four horizontal drum per level) which are fitted across the back with safety “stop rails” to stop drums from being pushed through and falling off. The underside of the unit is fitted with base plinths to eliminate contact with the ground and reduce the risk of corrosion and prior to painting the unit is fully shot blasted to provide a clean and keyed surface.
This model can hold 12 x 205ltr drums.
This unit will be delivered by an HGV, possibly articulated therefore please ensure that a vehicle of this type can access your premises before ordering and advise us accordingly.
You will require an appropriate size/capacity fork lift truck to offload this item from the delivery vehicle. Our standard delivery doesn’t include any offloading.
L3000 x W1500 x H2875mm at the highest point on the unit
|Number of containers:
||Twelve 205ltr drums - horizontal
||Green RAL 6029
|Load capacity per level:
||1000kg (3 levels)
||A high build, quick drying primer/topcoat paint specifically designed for use directly on to metal or bare steel, this paint contains zinc phosphate anti-corrosive pigments and is applied with a minimum dry film thickness of 75 microns.
Download a datasheet for IS12H
