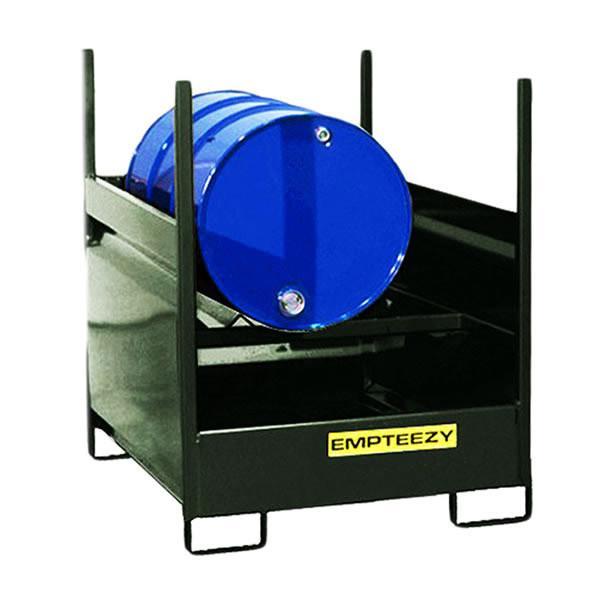

Designed to accommodate a single horizontal 205ltr drum this spill pallet is manufactured from 2mm steel plate, which is corrugated for additional strength, has a fully seam welded sump that is fully compliant with all the current UK regulations relating to sump capacities and is fitted with fork hoops to aid movement and keep the underside of the sump off the floor. The drum sits on a cradle above the sump and is further protected by raised back and side walls. Prior to painting the unit is fully shot blasted to provide a clean and keyed surface.
This model can hold 1 x 205ltr drum.
||L1300 x W880 x H1220mm
|Number of containers:
||1 x 205ltr horizontally
||Green RAL 6029
A high build, quick drying primer/topcoat paint specifically designed for use directly on to metal or bare steel, this paint contains zinc phosphate anti-corrosive pigments and is applied with a minimum dry film thickness of 75 microns.
- Sliding carriage to aid loading and unloading (Unit must not be stacked if this option is fitted).
Please notify us at the time of ordering if you require this option.
This unit will be delivered by an HGV, possibly articulated therefore please ensure that a vehicle of this type can access your premises before ordering and advise us accordingly.
You will require an appropriate size/capacity fork lift truck to offload this item from the delivery vehicle. Our standard delivery doesn’t include any offloading.
Download a datasheet for HD1
