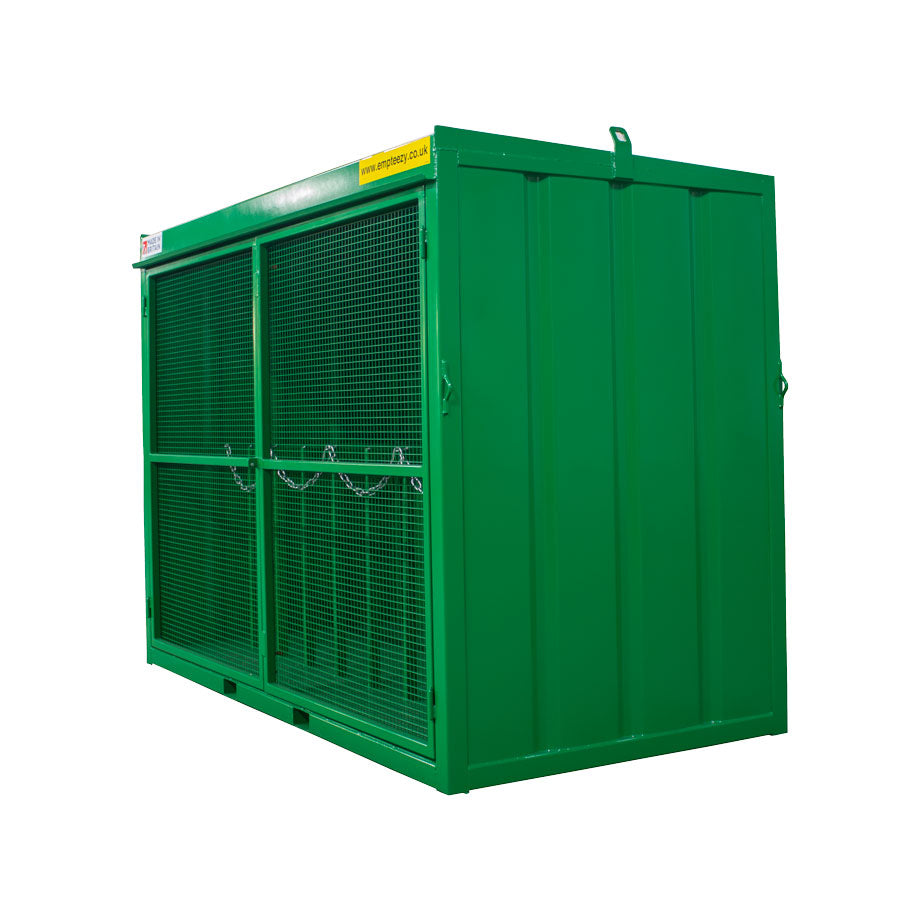

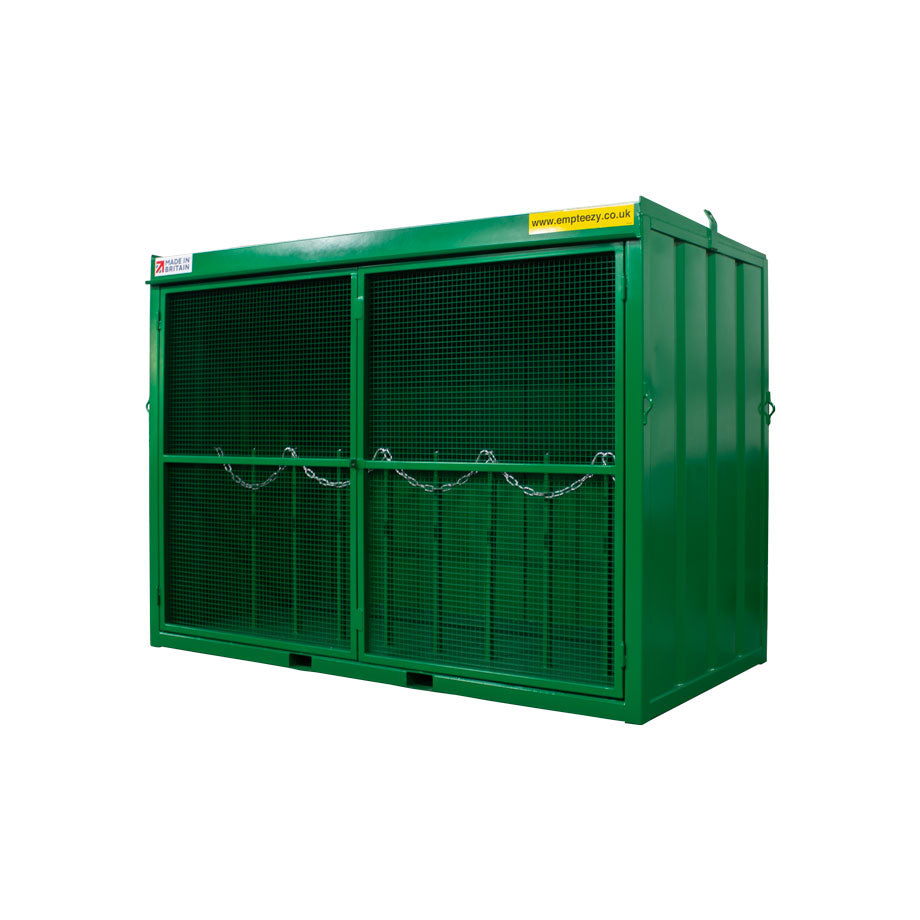

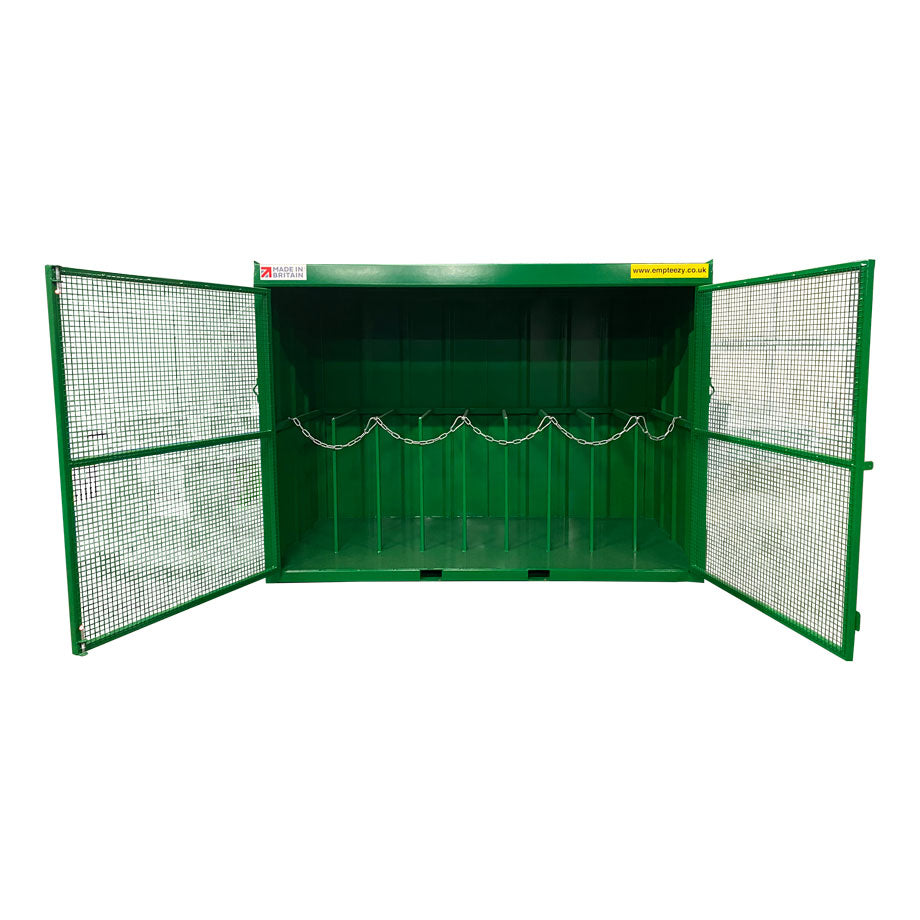

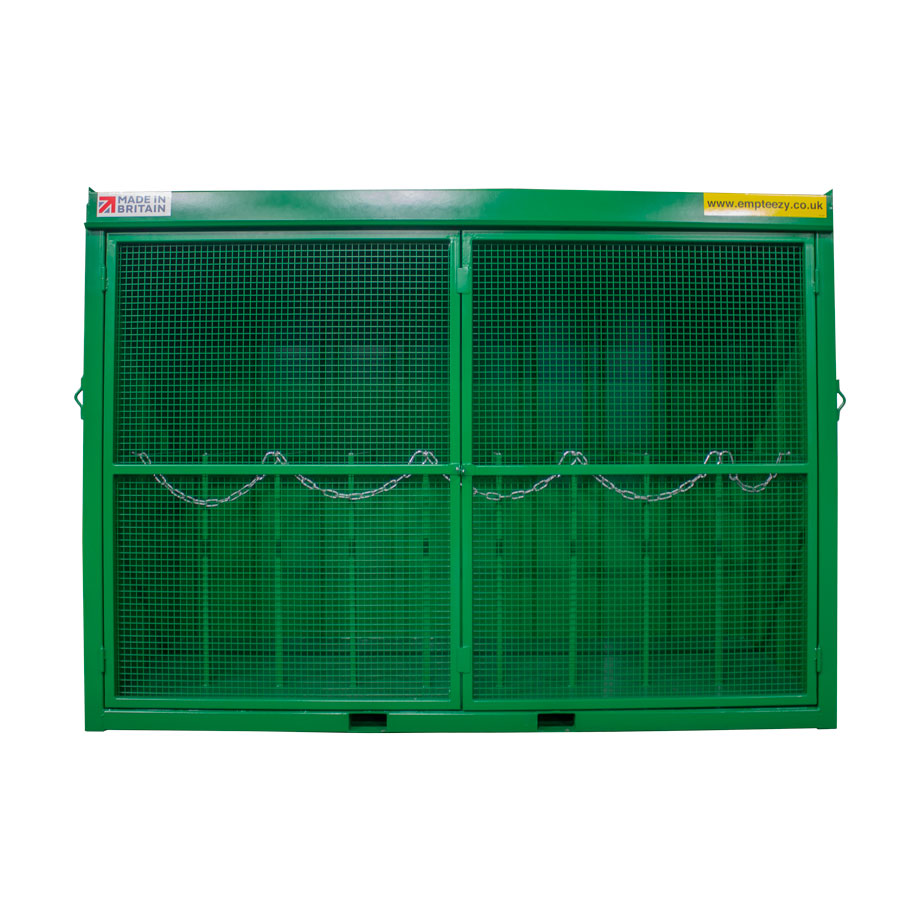

The base of this gas cylinder store is 3mm mild steel sheet, with RHS cross members and pressed ribs. The corner posts and mains rails are from rolled hollow section and the back and side panels are 2mm mild steel sheet, corrugated where needed.
The sloping roof has been fitted with bracing and fully welded around the perimeter. The unit has crane-lifting points with a maximum gross weight of 2000kg, base plinths and a separate ramp to aid loading and unloading.
To finish the unit has been shot blasted and painted to approximately 100 microns.
L3000 x W1500 x H2177mm at the highest point on the unit
||Green RAL 6029
Download a datasheet for GB30
