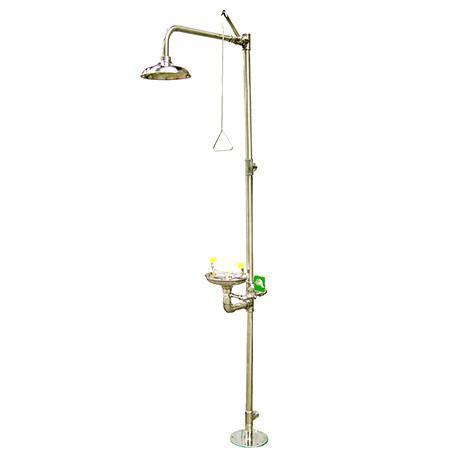

Manufactured using stainless steel pipe work and fittings; including the 250mmØ shower head and eye wash bowl making it ideal for harsh environments and industries such as food and pharmaceutical. The eye wash has two high flow, aerated low pressure outlets fitted with automatic opening dust covers.

This combination safety shower and eye wash has been designed to meet and exceed the internationally recognised standards: EN15154 parts 1 & 2, DIN12899.3 and ANSI Z358.1.

Water inlet:	1¼” BSP
Water inlet pressure:	Recommended 2 bar with a maximum of 8 bar - please notify us prior to ordering if your water pressure is below 1.5 bar
Shower flow rate:	Regulated at 110lpm
Shower operation:	Pull handle
Shower valve:	Full bore 1”
Eyewash flow rate:	22lpm
Eyewash operation:	Push paddle
Eyewash valve:	Full bore ½”
Waste:	1¼” BSP
Total weight:	20kg
Dimensions:	76 x 26 x 22cm

Download a datasheet for FSCS-SS

Download a technical drawing for FSCS-SS
