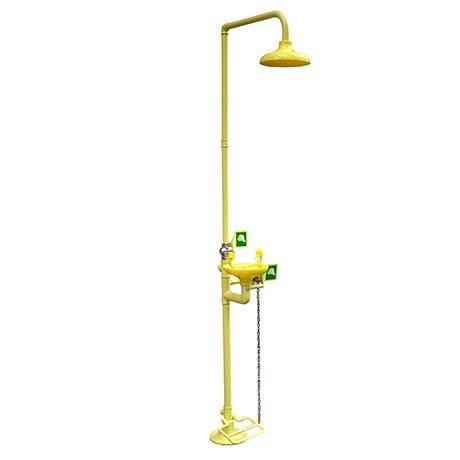

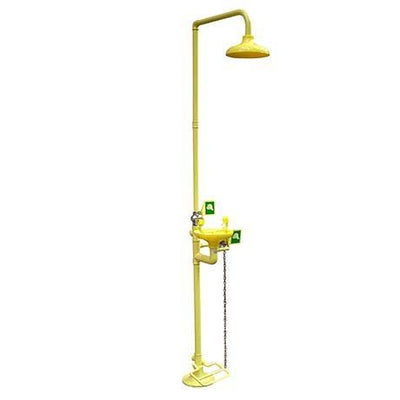

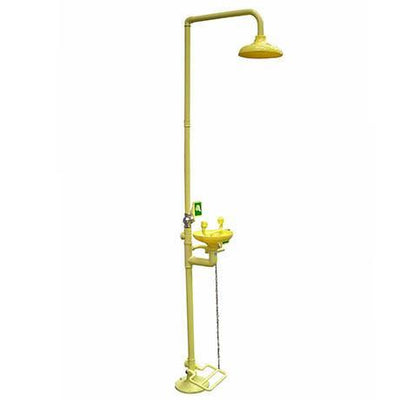

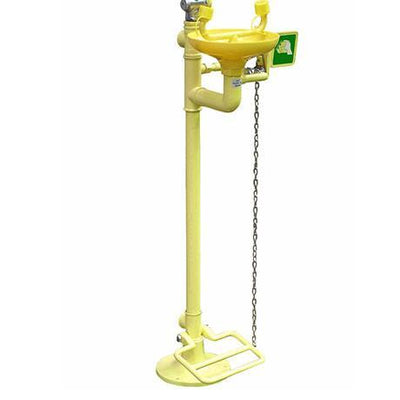

Manufactured using galvanised pipe work which is protected with an anti-corrosive Polyamide 11 high visibility yellow plastic coating to give good resistance to acids, bases, seawater and oils, all fittings are brass and the 250mmØ shower head and eyewash bowl are manufactured from ABS reinforced plastic. The eye wash has two high flow, aerated low pressure outlets fitted with automatic opening dust covers.

This combination safety shower and eye wash is fitted with an automatic drain system to remove residual water after use and has been designed to meet and exceed the internationally recognised standards: EN15154 parts 1 & 2, DIN12899.3 and ANSI Z358.1.

Water inlet:	1¼” BSP
Water inlet pressure:	Recommended 2 bar with a maximum of 8 bar - please notify us prior to ordering if your water pressure is below 1.5 bar
Shower flow rate:	Regulated at 110lpm
Shower operation:	Pull handle
Shower valve:	Automatic drain & full bore 1¼”
Eyewash flow rate:	22lpm

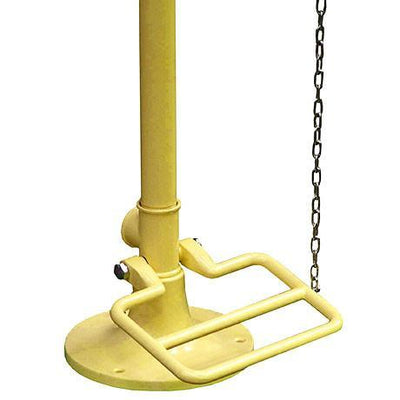

Eyewash operation:	Push paddle & foot treadle
Eyewash valve:	Automatic drain & full bore ½”
Waste:	1¼” BSP
Total weight:	21kg
Dimensions:	76 x 25 x 20cm

Download a datasheet for FSCS-SD

Download a technical drawing for FSCS-SD
