Combination Shower With ABS Plastic Shower Head & Basin
Combination Shower With ABS Plastic Shower Head & Basin - FSCS
FSCS
Combination Shower With ABS Plastic Shower Head & Basin - FSCS
Please note: Prices do not include VAT
Price shown includes delivery to mainland UK address only*

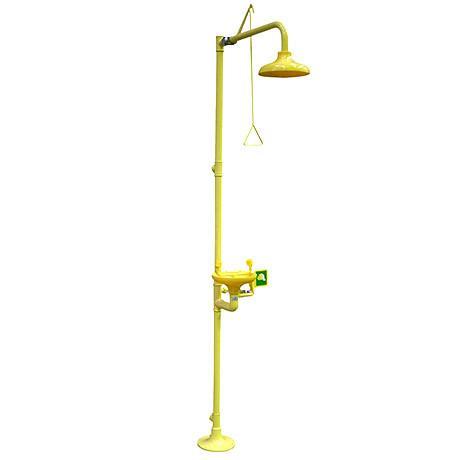

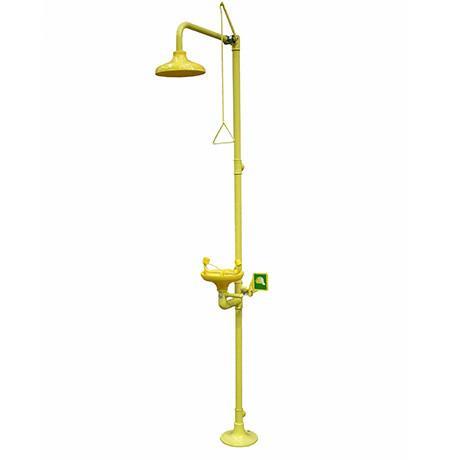

Manufactured using galvanised pipe work which is protected with an anti-corrosive Polyamide 11 high visibility yellow plastic coating to give good resistance to acids, bases, seawater and oils, all fittings are brass and the 250mmØ shower head and eyewash bowl are manufactured from ABS reinforced plastic. The eyewash has two high flow, aerated low pressure outlets fitted with automatic opening dust covers.
This combination safety shower and eyewash has been designed to meet and exceed the internationally recognised standards: EN15154 parts 1 & 2, DIN12899.3 and ANSI Z358.1.
| Water inlet: | 1¼” BSP |
| Water inlet pressure: | Recommended 2 bar with a maximum of 8 bar - please notify us prior to ordering if your water pressure is below 1.5 bar |
| Shower flow rate: | Regulated at 110lpm |
| Shower operation: | Pull handle |
| Shower valve: | Full bore 1” |
| Eyewash flow rate: | 22lpm |
| Eyewash operation: | Push paddle |
| Eyewash valve: | Full bore ½” |
| Waste: | 1¼” BSP |
| Total weight: | 18kg |
| Dimensions: | 76 x 26 x 22cm |
Download a technical drawing for FSCS
*For deliveries to all other destinations please do not order on line, contact our customer services team on 01506 430309 who will assist you.
