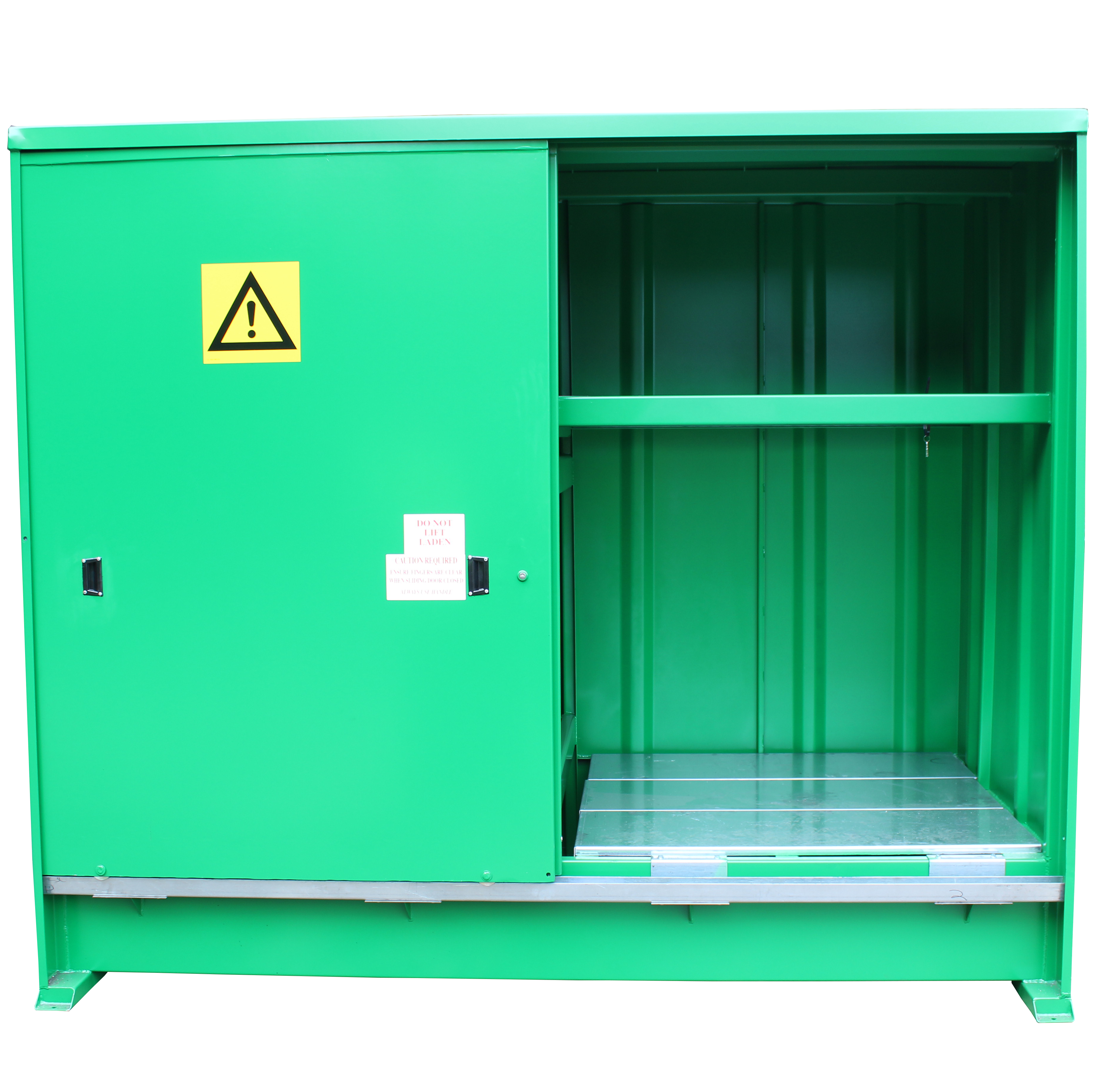

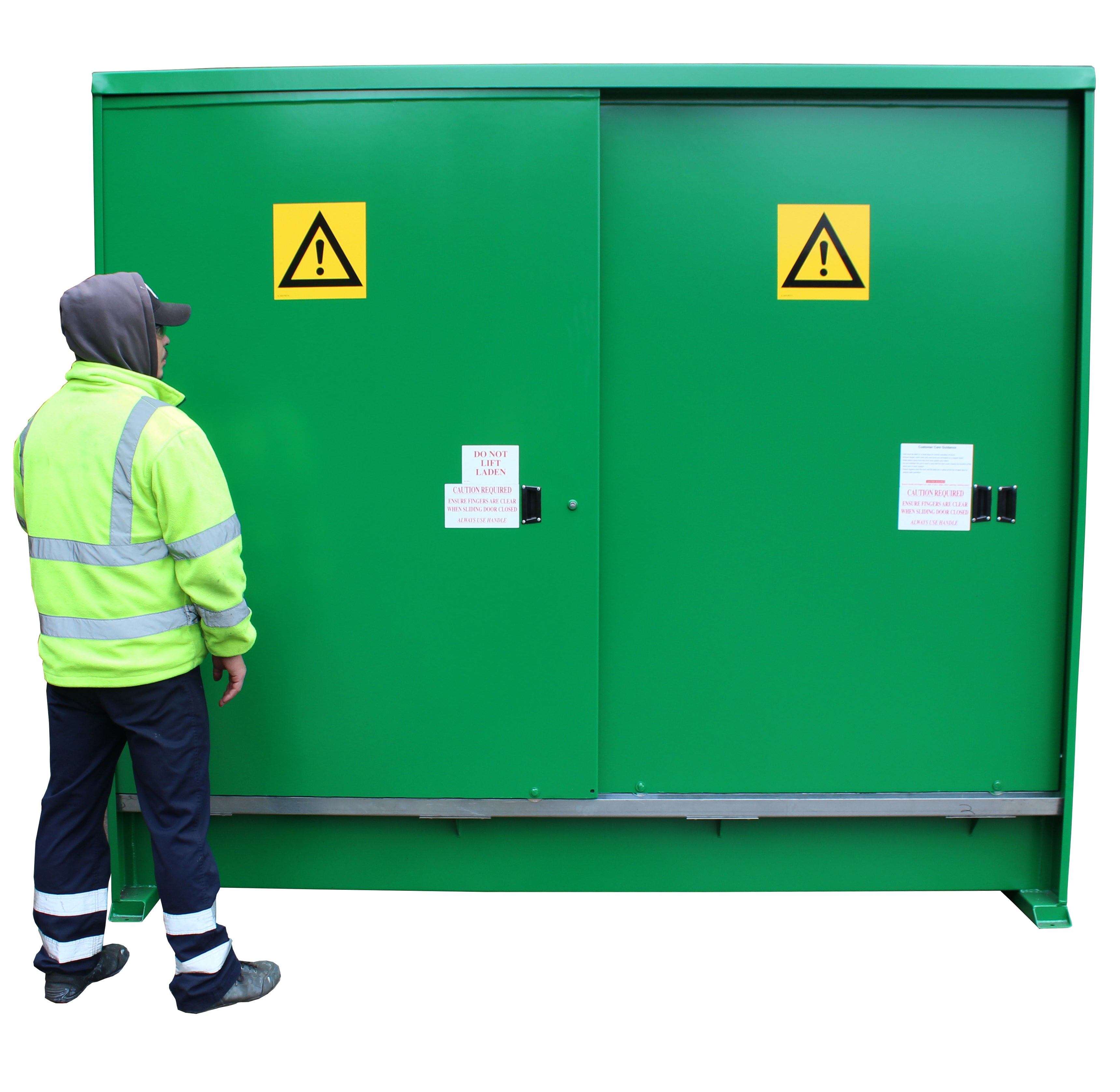

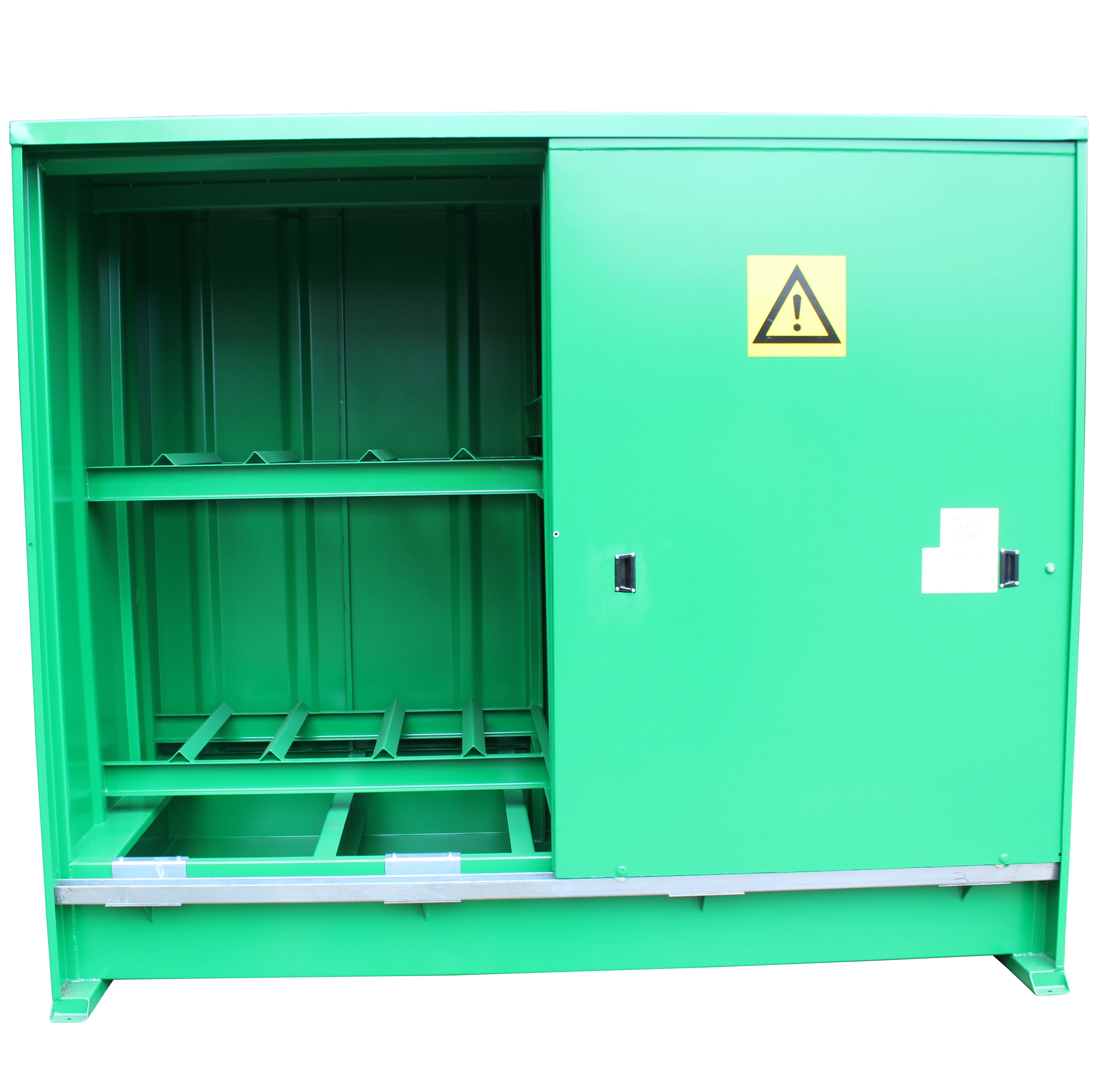

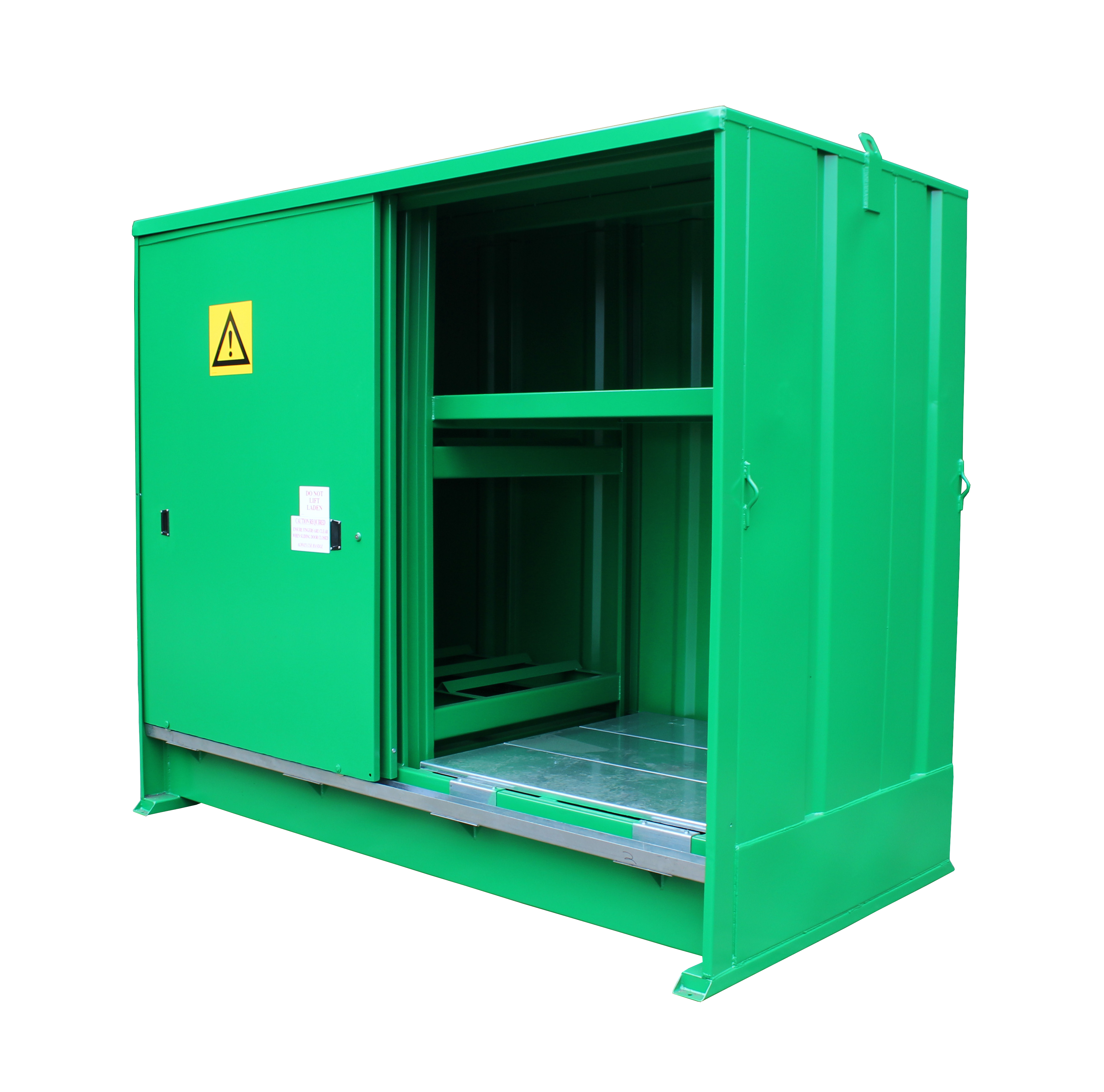

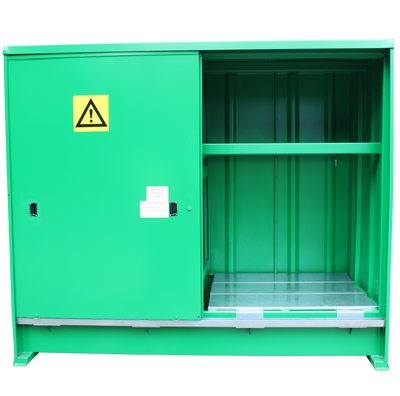

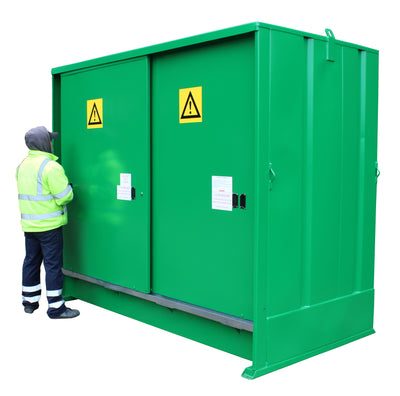

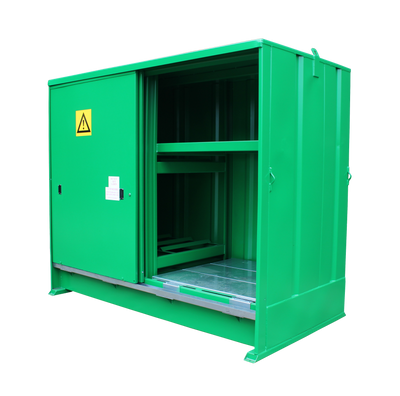

Drum Store - DS8VH
To Hold 8 Drums
Thanks for getting in touch. We will get back to you as soon as possible
Backed by our 20 year structural guarantee*
A 2mm pressed steel welded body construction provides the structural strength for this unit, while the roof which is fitted with lifting eyes is manufactured from 3mm mild steel. The two easy glide sliding doors are constructed from 2mm mild steel and are fitted with a central lock and padlock points (padlocks not supplied).

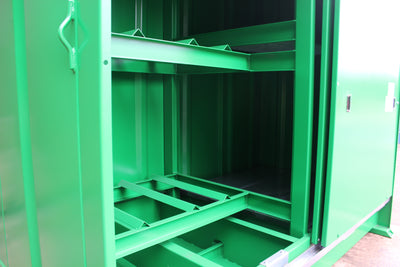

Constructed from 3mm mild steel, the sump is fully seam welded and is as you would expect fully compliant with all current UK regulations relating to sump capacities and the underside is fitted with plinths to eliminate contact with ground and reduce the risk of corrosion. This model holds four 205ltr drums horizontally in cradles on two levels, four 205ltr drums vertically on pallet support beams and has a shelf fitted above the vertical drums for small containers. Prior to painting the unit is fully shot blasted to provide a clean and keyed surface.
This model can hold 4 x 205ltr drums in the vertical and 4 x 205ltr drums in the horizontal
*Full details available on request
- Air vents
- Galvanised steel grid mesh
- Galvanised steel pallet channels
Please notify us at the time of ordering if you require any of these options.
This unit will be delivered by an HGV, possibly articulated therefore please ensure that a vehicle of this type can access your premises before ordering and advise us accordingly.
You will require an appropriate size/capacity fork lift truck to offload this item from the delivery vehicle. Our standard delivery doesn’t include any offloading.
The unit must be positioned on a solid level surface, ideally concrete of circa 150mm in depth and 100mm bigger overall than the unit. The purpose of this is to ensure the unit does not settle unevenly when loaded.
|External size:||2930mm L x 1500mm W x 2445mm H at the highest point of the unit|
|Internal clear space:||N/A|
|Number of containers:||4 x 205ltr horizontal & 4 x 205ltr vertical + shelf for small containers above|
|Colour:||Green RAL 6029|
|Type of doors:||2 sliding|
|Type of door lock:||Keyed handle|
|Access aperture:||1295mm W x 1795mm H (each side)|
|Paint specification:||A high build, quick drying primer/topcoat paint specifically designed for use directly on to metal or bare steel, this paint contains zinc phosphate anti-corrosive pigments and is applied with a minimum dry film thickness of 75 microns.|
