Backed by our 20 year structural guarantee*

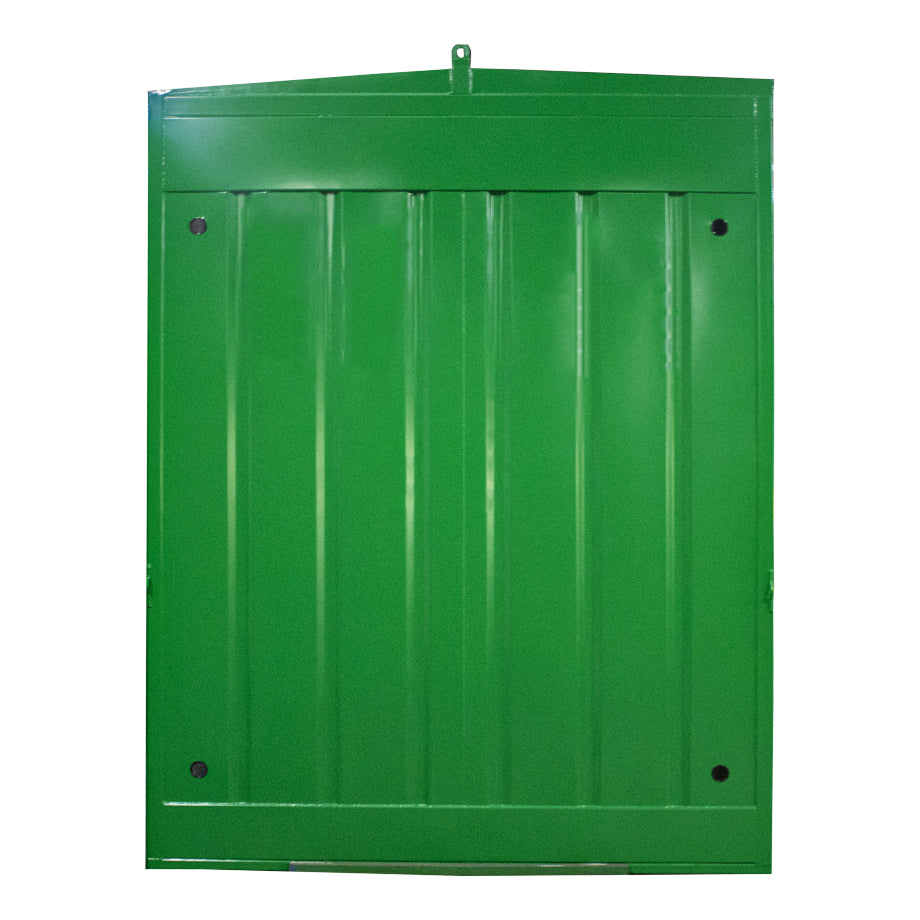

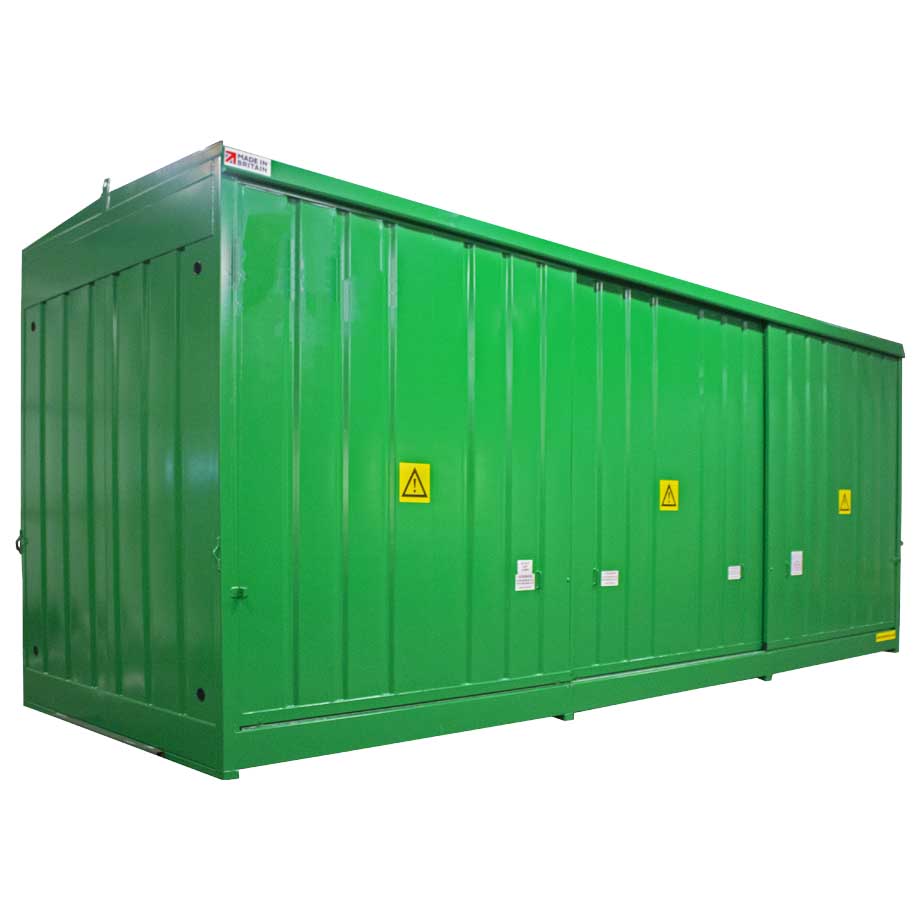

The base of this unit is manufactured from 3mm mild steel sheet and uses RHS cross members and pressed ribs for additional strength. All the corner posts and shelves, main rails and cross members are manufactured from rolled hollow section and the back, sides and door panels are pressed from 2mm mild steel sheet which is corrugated where required.

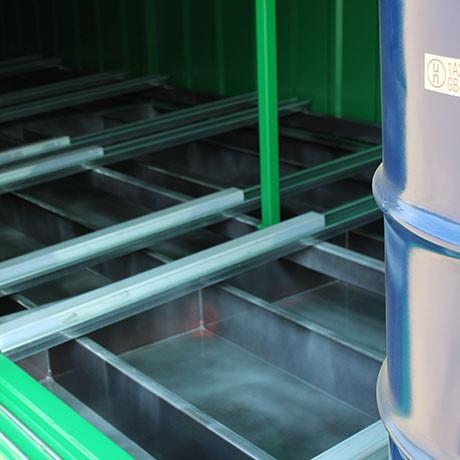

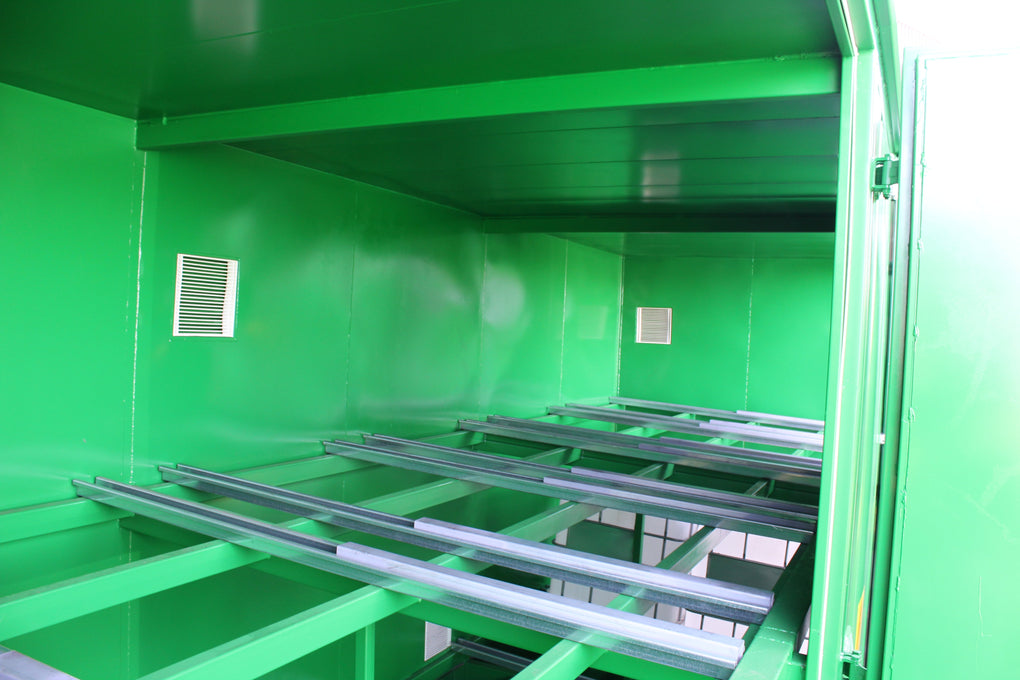

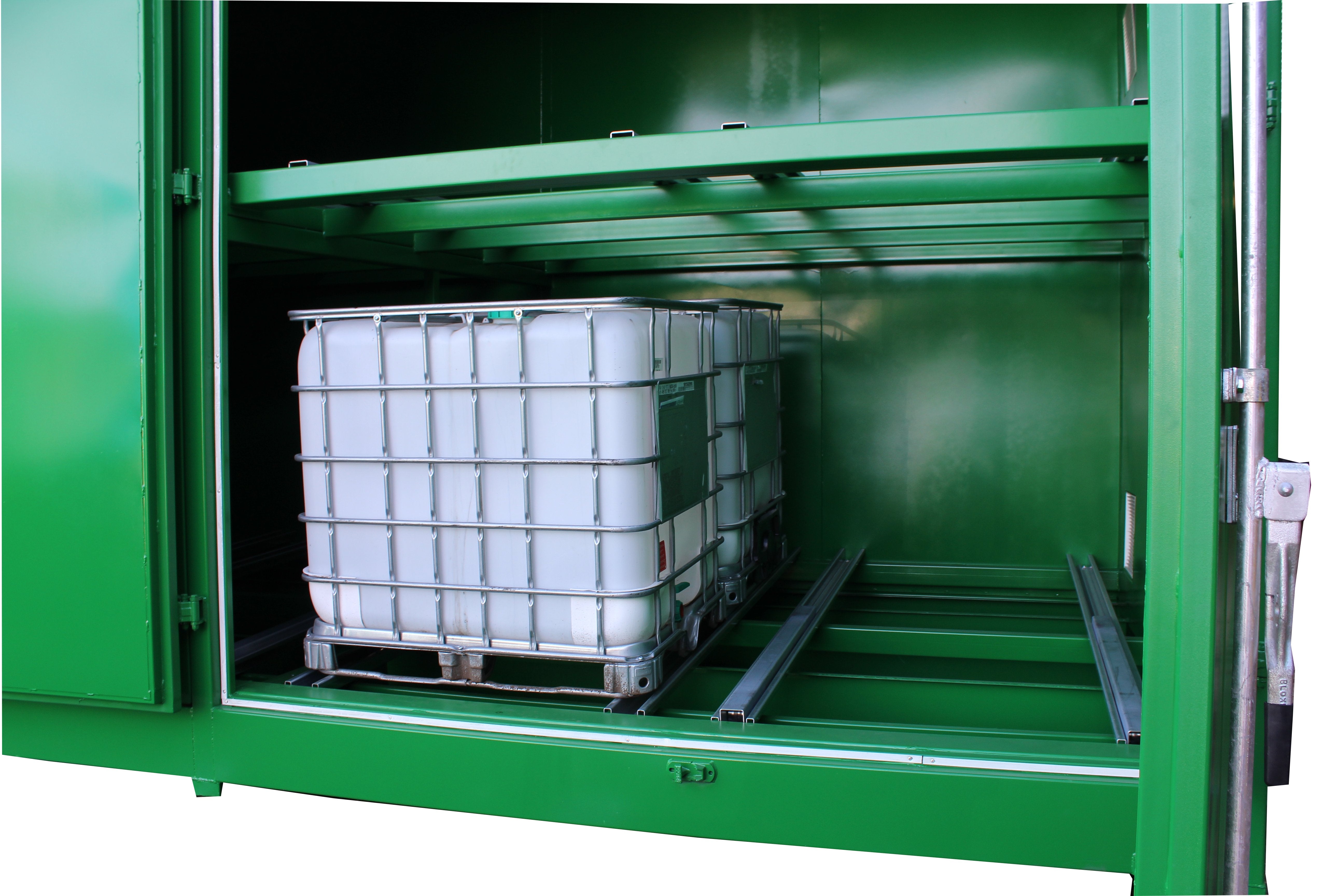

Constructed from 3mm mild steel, the sump is fully seam welded and fitted with a **pushback loading system which consists of a “sliding rail” device that allows the pallets to be pushed to the back of the unit and the front pallet used to control the movement of the back one. The sump as you would expect complies fully with all current UK regulations relating to sump capacities and the underside is fitted with plinths to eliminate contact with ground and reduce the risk of corrosion. Pallets on the upper level are also loaded on to a pushback loading system and prior to painting the unit is fully shot blasted to provide a clean and keyed surface.

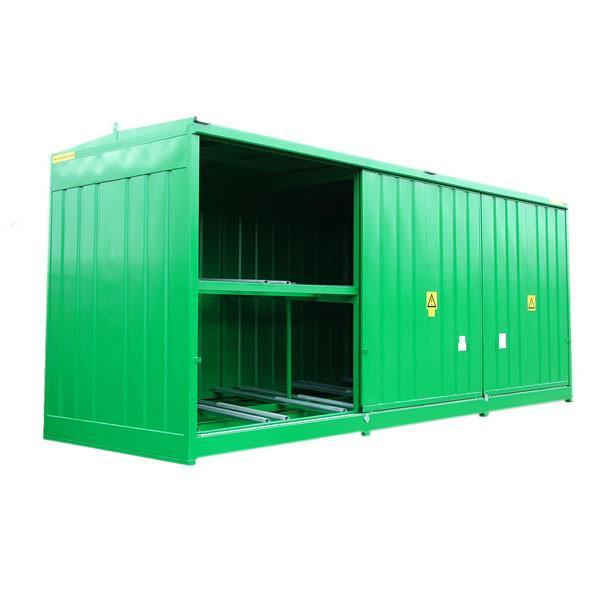

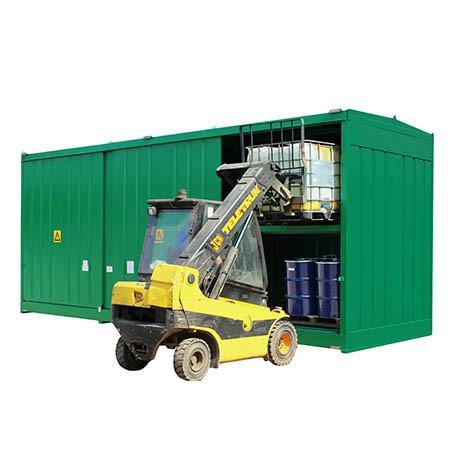

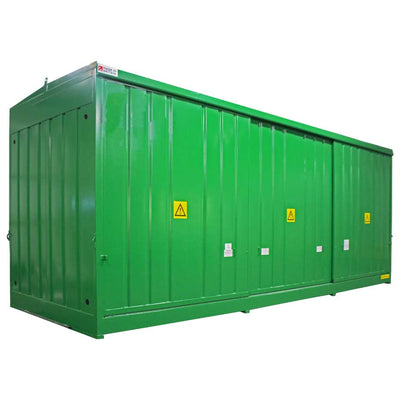

This model can hold up to 96 x 205ltr drums or 24 x 1000ltr IBC’s across two levels and will accommodate standard 1200mm x 1200mm, 1200mm x 1000mm and 1200mm x 800mm pallets.
*Full details available on request
Please notify us at the time of ordering if you require this option.
This unit will be delivered by an HGV, possibly articulated therefore please ensure that a vehicle of this type can access your premises before ordering and advise us accordingly.
You will require an appropriate size/capacity fork lift truck to offload this item from the delivery vehicle. Our standard delivery doesn’t include any offloading.
The unit must be positioned on a solid level surface, ideally concrete of circa 150mm in depth and 100mm bigger overall than the unit. The purpose of this is to ensure the unit does not settle unevenly when loaded.

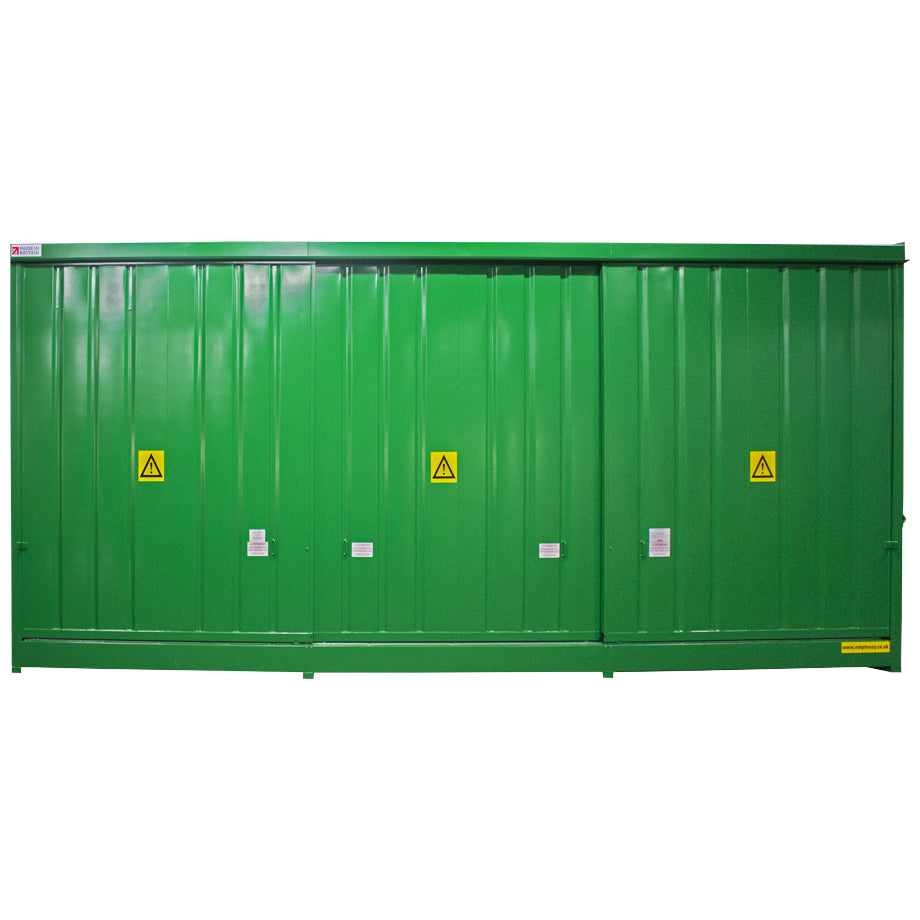

||8840mm L x 2800mm W x 3660mm H at the highest point of the unit
|Lower level clear space:
|Upper level clear space:
|Nº of containers:
||96 x 205ltr or 24 x 1000ltr
||Green RAL 6029
|Load capacity per level:
||10,000 kg (2 levels)
|Type of doors:
|Type of door lock:
||Padlock points (Padlocks not supplied) & keyed locks
||2810mm W x 3130mm H (x2) & 2840mm W x 3130mm H (x1)
||A high build, quick drying primer/topcoat paint specifically designed for use directly on to metal or bare steel, this paint contains zinc phosphate anti-corrosive pigments and is applied with a minimum dry film thickness of 75 microns.
