Backed by our 20 year structural guarantee*

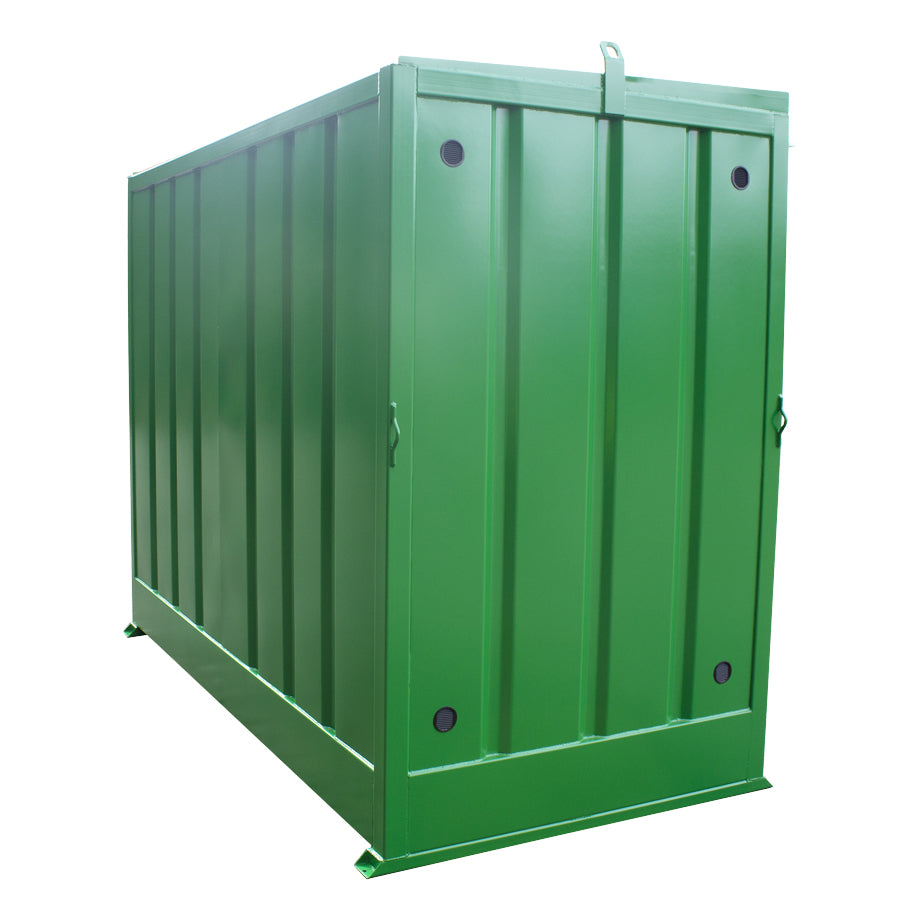

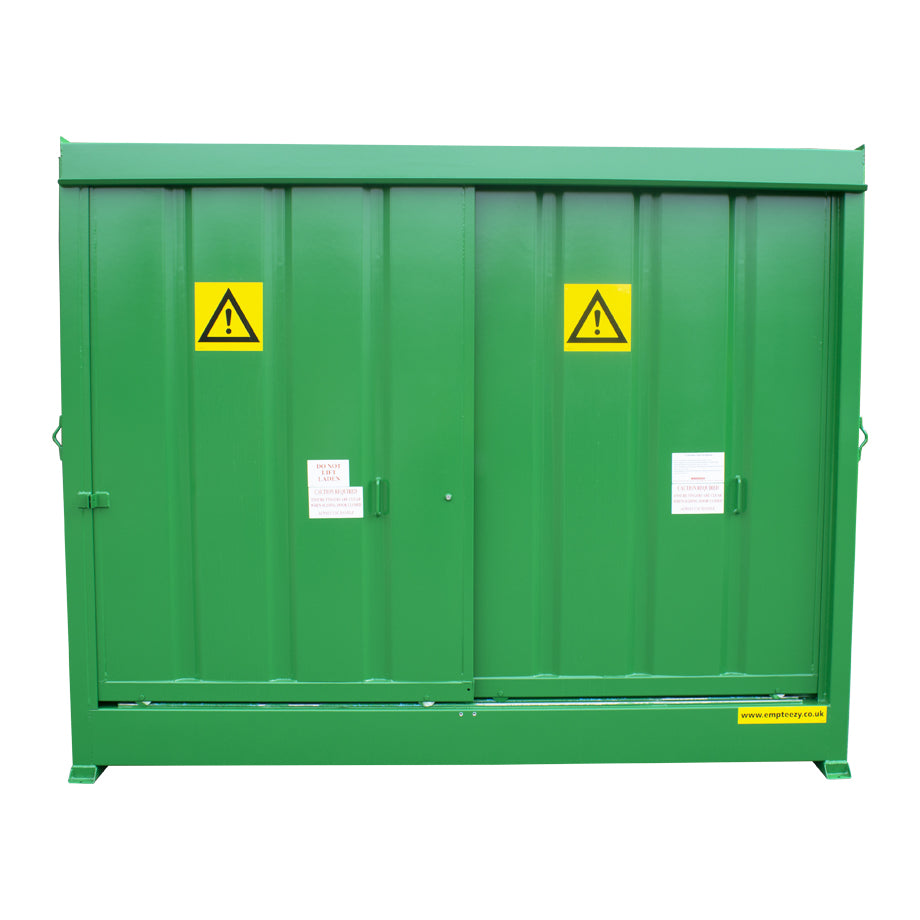

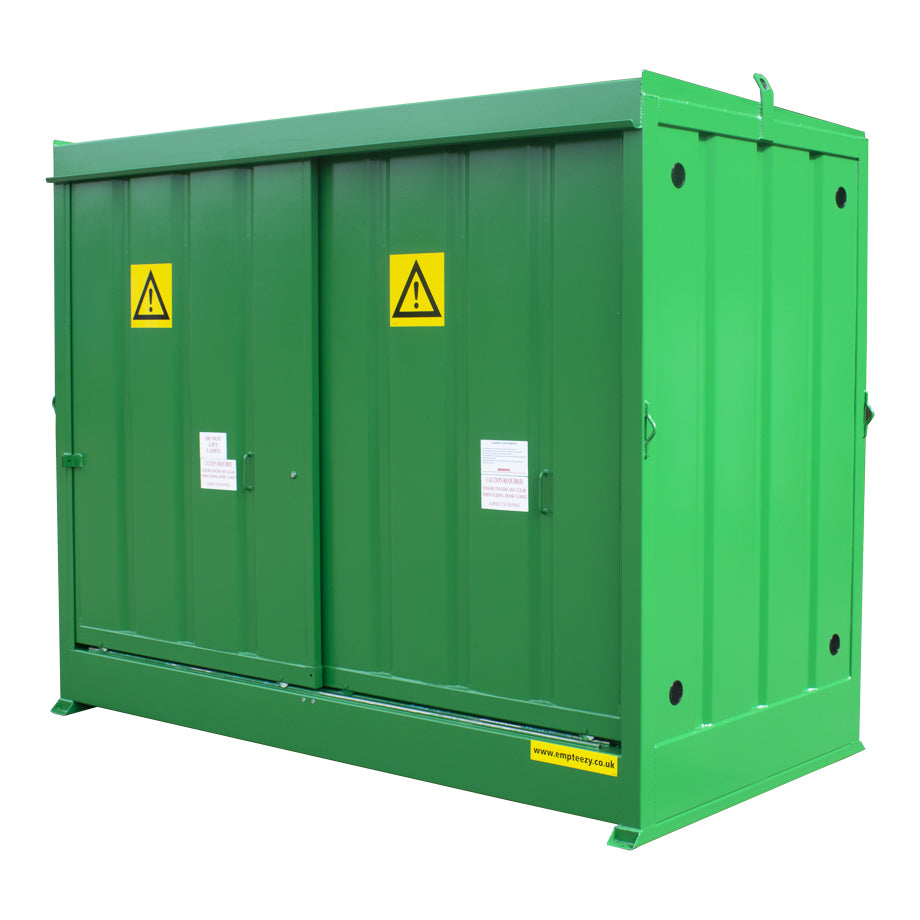

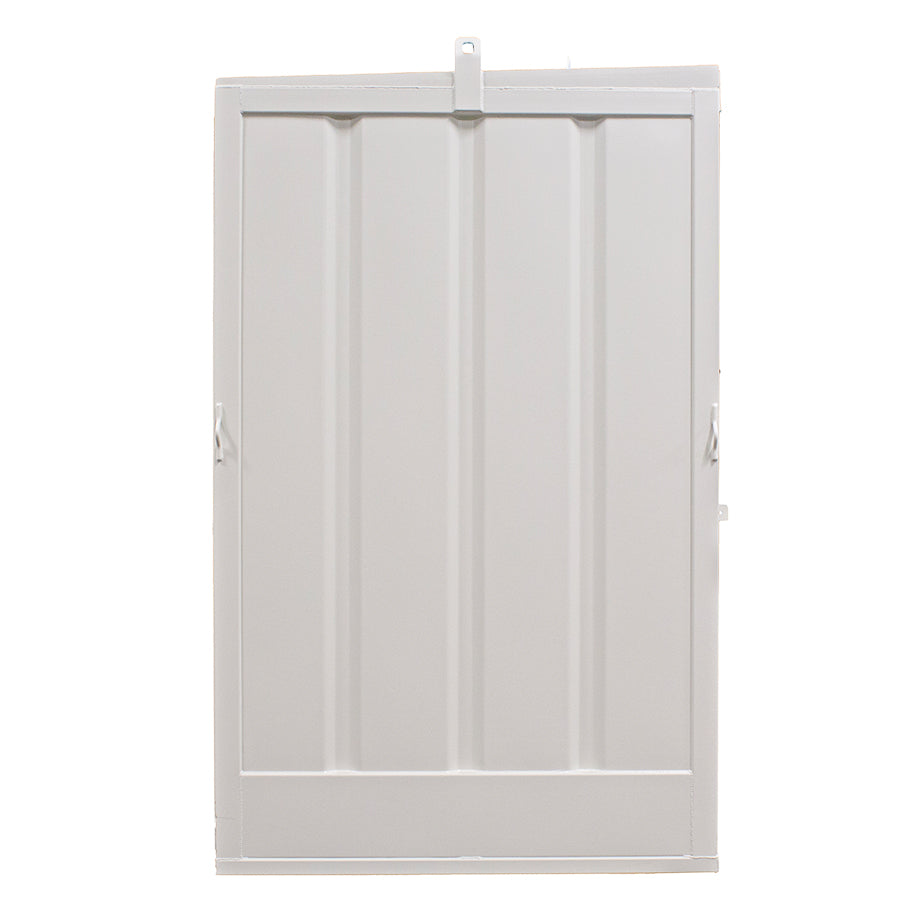

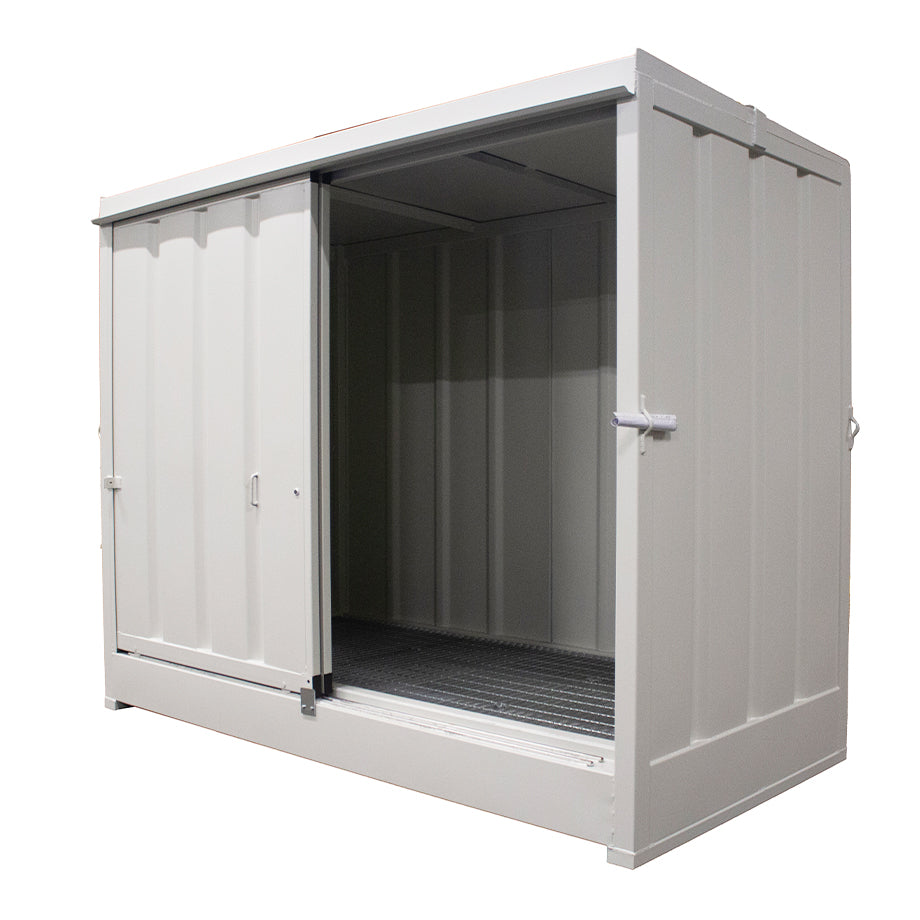

A 2mm pressed steel welded body construction provides the structural strength for this unit, while the roof which is fitted with lifting eyes is manufactured from 3mm mild steel. The two easy glide sliding doors are constructed from 2mm mild steel and are fitted with a central lock and padlock points (padlocks not supplied).
Constructed from 3mm mild steel, the sump is fully seam welded and fitted with pallet support beams for the pallets to sit on. The sump as you would expect complies fully with all current UK regulations relating to sump capacities and the underside is fitted with plinths to eliminate contact with ground and reduce the risk of corrosion. Pallets on the upper level sit directly onto a steel support frame and prior to painting the unit is fully shot blasted to provide a clean and keyed surface.

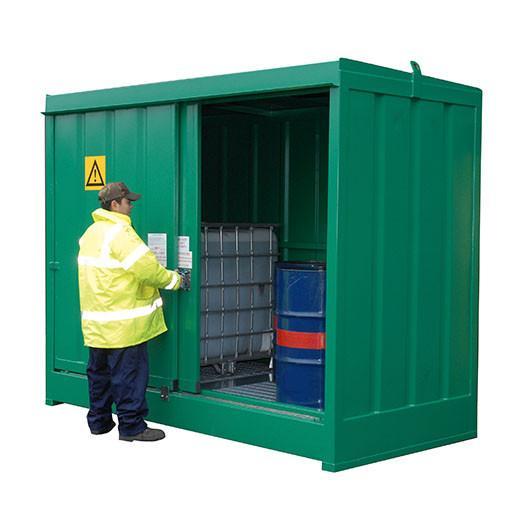

This model can hold up to 8 x 205ltr drums or 2 x 1000ltr IBC’s across two levels and will accommodate standard 1200mm x 1200mm, 1200mm x 1000mm and 1200mm x 800mm pallets.
*Full details available on request
- Air vents

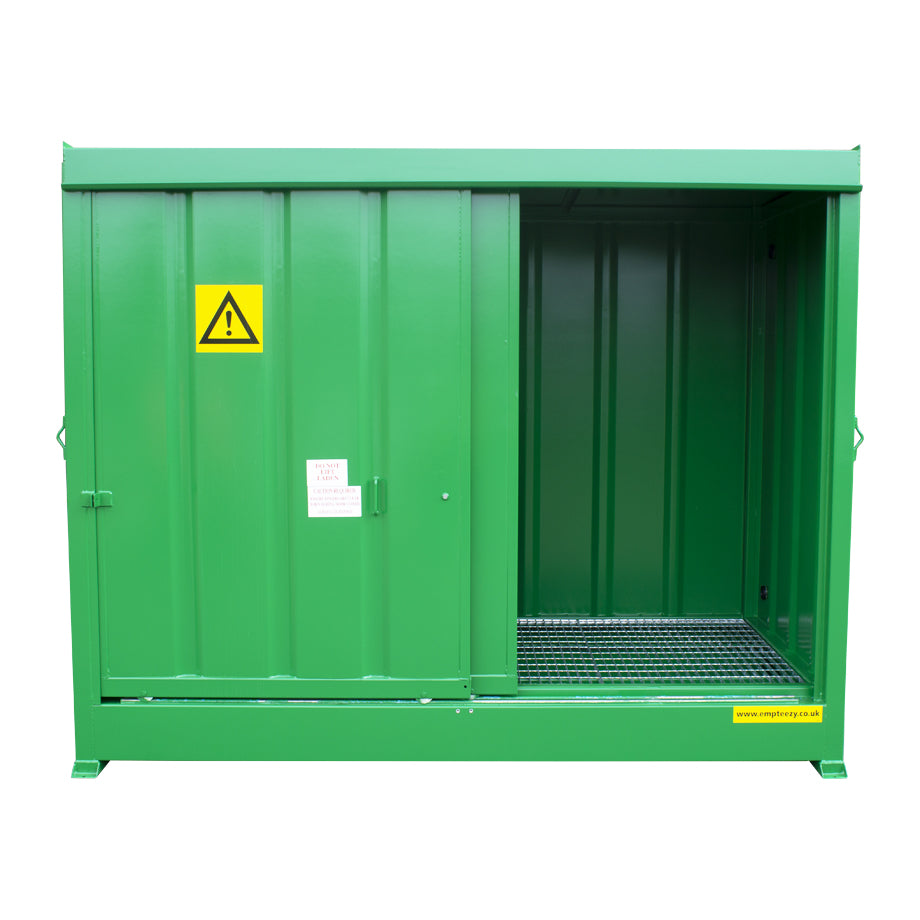

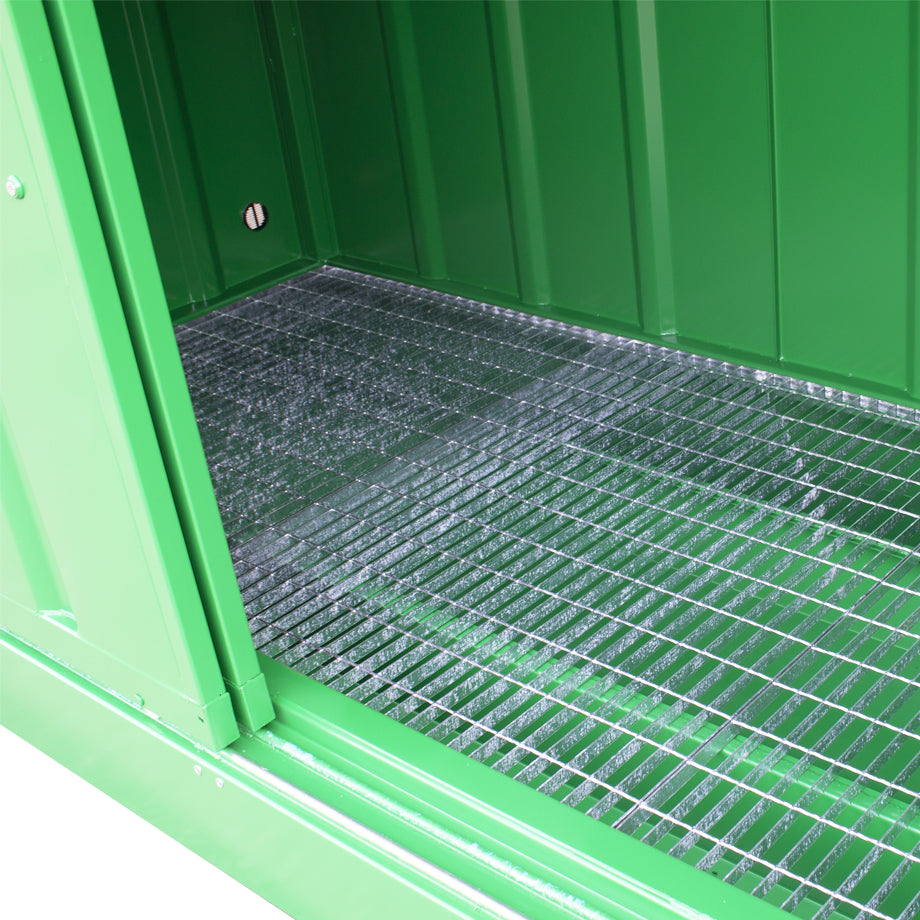

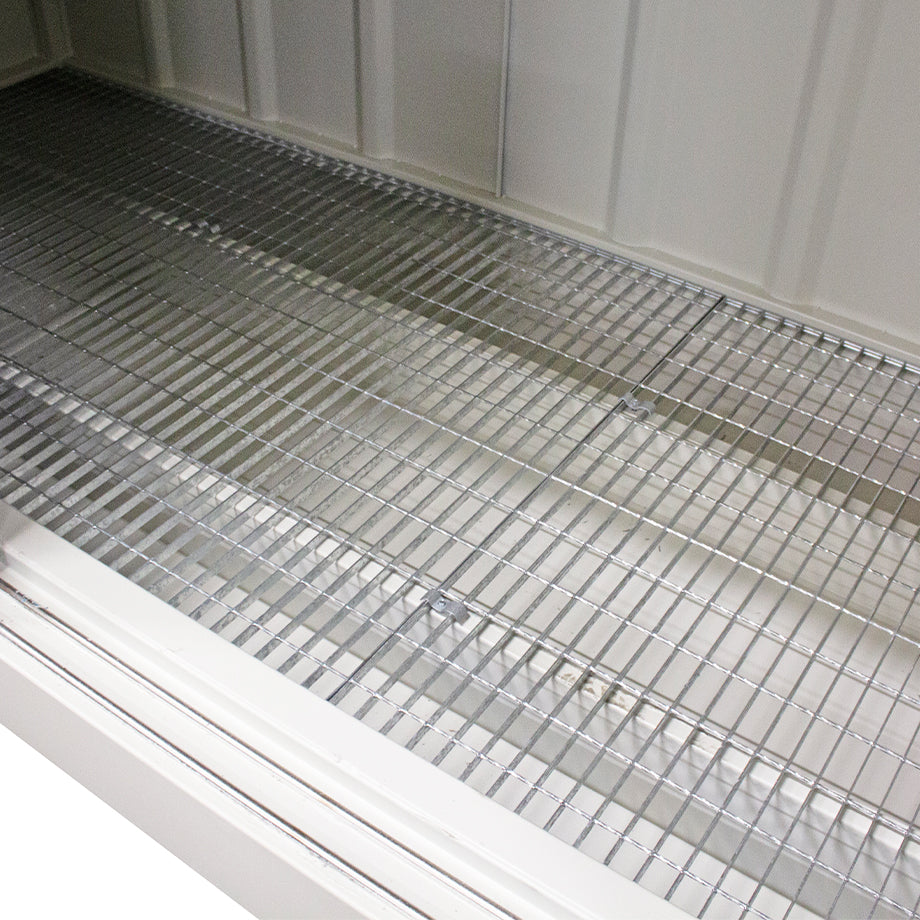

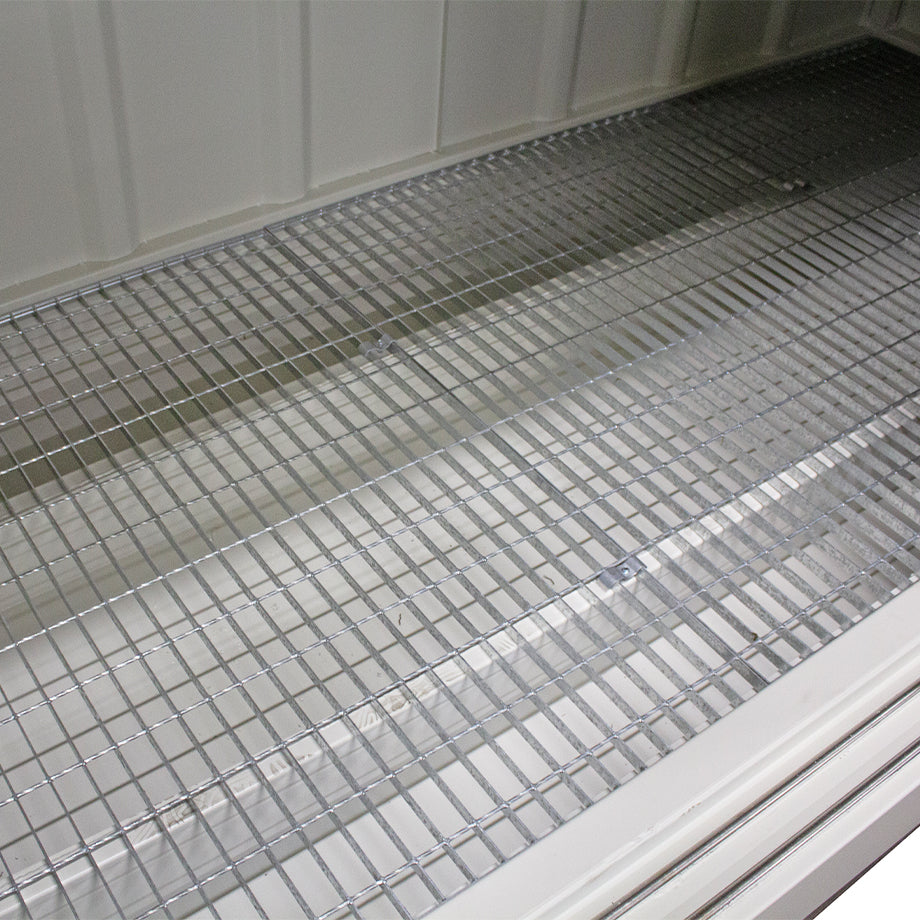

- Galvanised steel grid mesh
- Galvanised steel pallet channels
Please notify us at the time of ordering if you require any of these options.
This unit will be delivered by an HGV, possibly articulated therefore please ensure that a vehicle of this type can access your premises before ordering and advise us accordingly.
You will require an appropriate size/capacity fork lift truck to offload this item from the delivery vehicle. Our standard delivery doesn’t include any offloading.
The unit must be positioned on a solid level surface, ideally concrete of circa 150mm in depth and 100mm bigger overall than the unit. The purpose of this is to ensure the unit does not settle unevenly when loaded.
||2706mm L x 1410mm W x 2350mm H at the highest point of the unit
|Number of containers:
8 x 205ltr or 2 x 1000ltr – side by side
||Green RAL 6029
|Type of doors:
|Type of door lock:
||Padlock point (padlock not supplied) & keyed lock
||1295mm W x 1795mm H
A high build, quick drying primer/topcoat paint specifically designed for use directly on to metal or bare steel, this paint contains zinc phosphate anti-corrosive pigments and is applied with a minimum dry film thickness of 75 microns.
