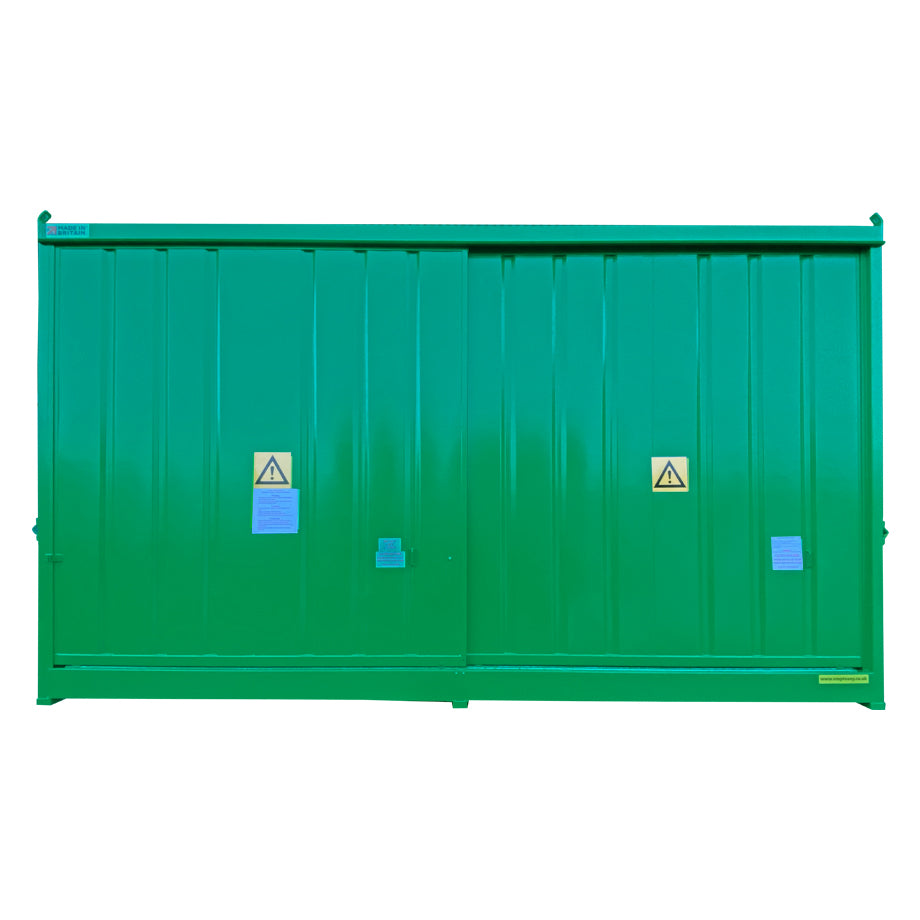

The base of this unit is manufactured from 3mm mild steel sheet and uses RHS cross members and pressed ribs for additional strength. All the corner posts and shelves, main rails and cross members are manufactured from rolled hollow section and the back, sides and door panels are pressed from 2mm mild steel sheet which is corrugated where required.

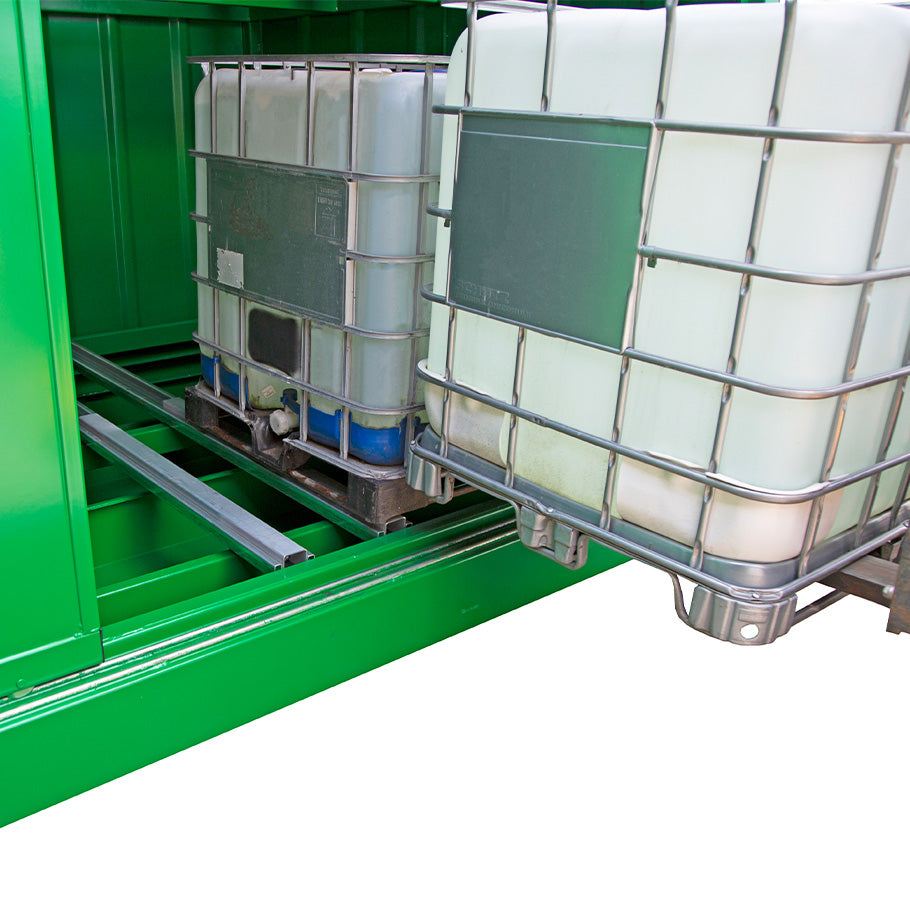

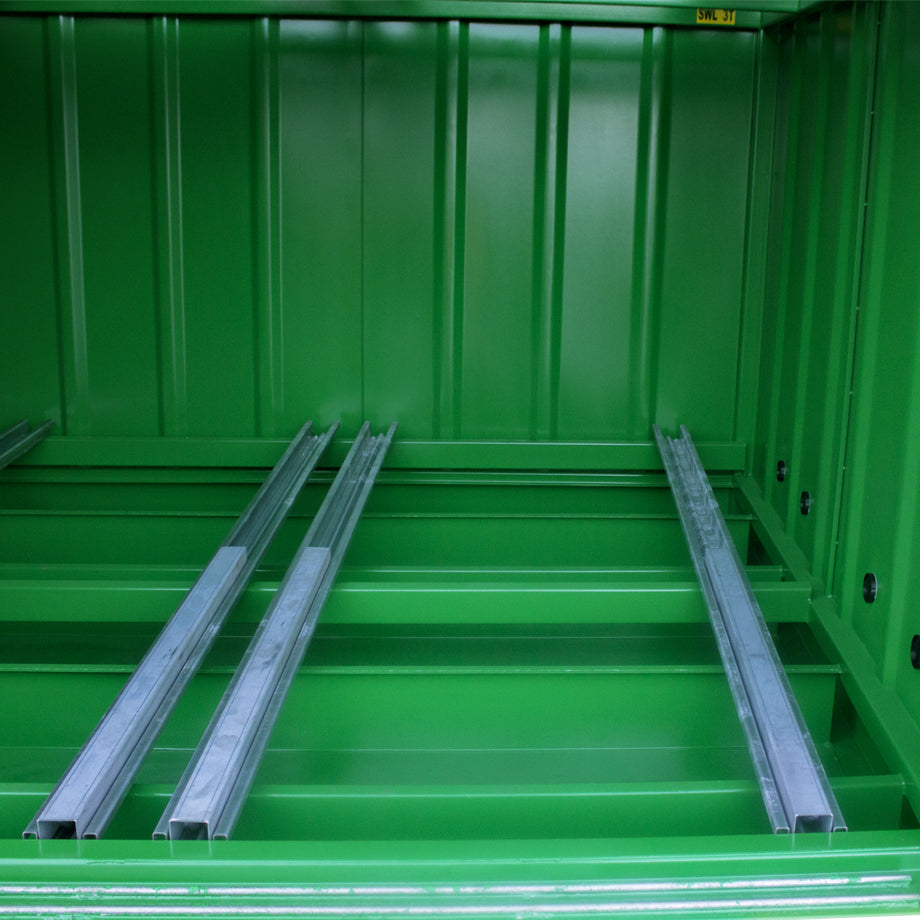

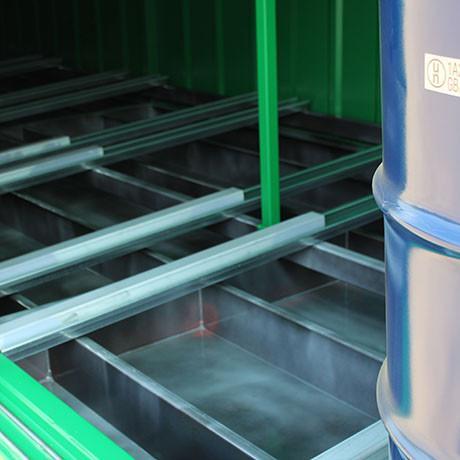

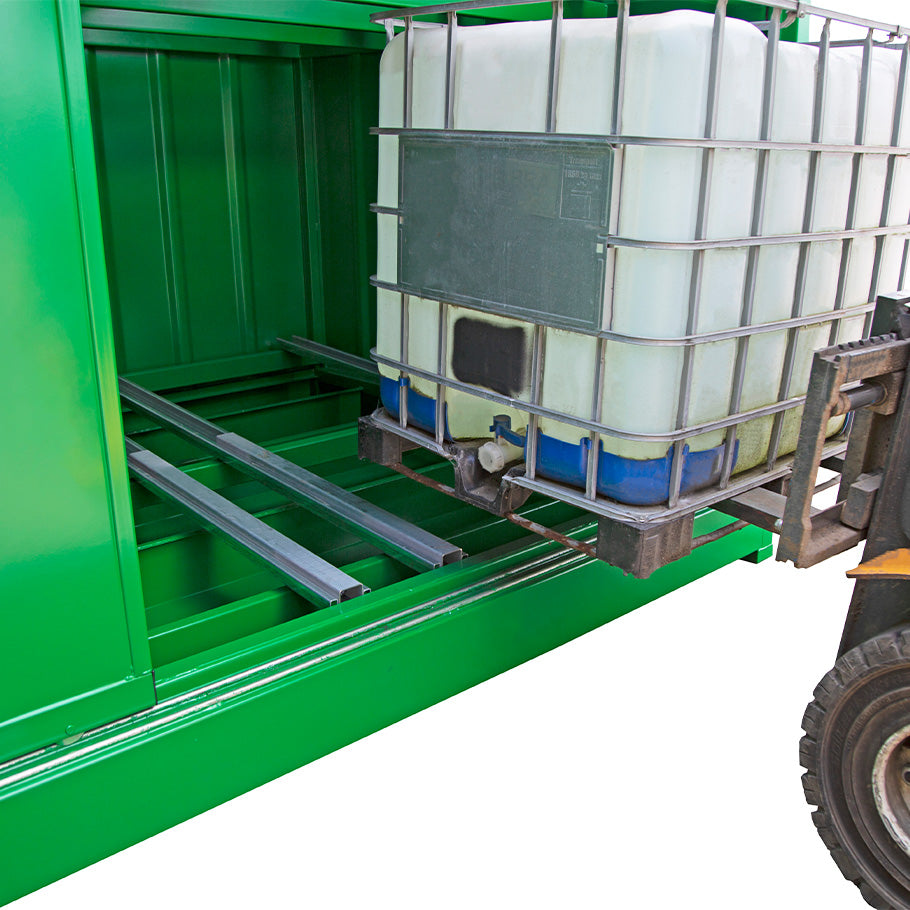

Constructed from 3mm mild steel, the sump is fully seam welded and fitted with a**pushback loading system which consists of a “sliding rail” device that allows the pallets to be pushed to the back of the unit and the front pallet used to control the movement of the back one. The sump as you would expect complies fully with all current UK regulations relating to sump capacities and the underside is fitted with plinths to eliminate contact with ground and reduce the risk of corrosion. Pallets on the upper level are also loaded on to a pushback loading system and prior to painting the unit is fully shot blasted to provide a clean and keyed surface.
This model can hold up to 64 x 205ltr drums or 16 x 1000ltr IBC’s across two levels and will accommodate standard 1200mm x 1200mm, 1200mm x 1000mm and 1200mm x 800mm pallets.
*Full details available on request
||5920mm L x 2800mm W x 3660mm H at the highest point of the unit
|Lower level clear space:
|Upper level clear space:
|Nº of containers:
||64 x 205ltr or 16 x 1000ltr - vertical
||Green RAL 6029
|Load capacity per level:
||4000kg (2 levels)
|Type of doors:
||: 3 sliding
|Type of door lock:
||Padlock points (Padlock not supplied) & keyed locks
||2810mm W x 3130mm H
||A high build, quick drying primer/topcoat paint specifically designed for use directly on to metal or bare steel, this paint contains zinc phosphate anti-corrosive pigments and is applied with a minimum dry film thickness of 75 microns.
