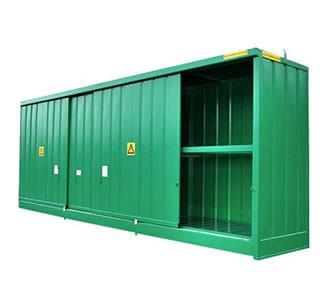

Drum & IBC Store - DPU48-12 ||To Hold 48 Drums or 12 IBC

drum and ibc storage

Drum & IBC Store - DPU48-12
To Hold 48 Drums or 12 IBC

This item is not avaliable for purchase online. Please contact us to discuss your requirements.

Price shown includes delivery to mainland UK address only*

Backed by our 20 year structural guarantee*

The base of this unit is manufactured from 3mm mild steel sheet and uses RHS cross members and pressed ribs for additional strength. All the corner posts and shelves, main rails and cross members are manufactured from rolled hollow section and the back, sides and door panels are pressed from 2mm mild steel sheet which is corrugated where required.



The sloping roof is pressed and fitted with suitable bracing, welded around the perimeter and fitted with crane lifting points, and the triple steel sliding doors run on easy glide track. Constructed from 3mm mild steel, the sump is fully seam welded and fitted with galvanised steel pallet channels (3 per pallet space). The sump as you would expect complies fully with all current UK regulations relating to sump capacities and the underside is fitted with plinths to eliminate contact with ground and reduce the risk of corrosion. Pallets on the upper level sit directly onto a steel support frame and prior to painting the unit is fully shot blasted to provide a clean and keyed surface.

This model can hold up to 48 x 205ltr drums or 12 x 1000ltr IBC’s across two levels and will accommodate standard 1200mm x 1200mm, 1200mm x 1000mm and 1200mm x 800mm pallets.

*Full details available on request

Chargeable Options:

  • Air vents
  • Galvanised steel grid mesh

Please notify us at the time of ordering if you require any of these options.

This unit will be delivered by an HGV, possibly articulated therefore please ensure that a vehicle of this type can access your premises before ordering and advise us accordingly.

You will require an appropriate size/capacity fork lift truck to offload this item from the delivery vehicle. Our standard delivery doesn’t include any offloading.

The unit must be positioned on a solid level surface, ideally concrete of circa 150mm in depth and 100mm bigger overall than the unit. The purpose of this is to ensure the unit does not settle unevenly when loaded.

External size: 8840mm L x 1500mm W x 3275mm H at the highest point of the unit
Lower level clear space: 1334mm H
Upper level clear space: 1350mm H
Nº of containers: 48 x 205ltr or 12 x 1000ltr - vertical
Sump capacity: 3300ltr
Colour: Green RAL 6029
Tare weight: 3100kg
Type of doors: 3 sliding
Type of door lock: Padlock points (padlocks not supplied) & keyed locks
Access apertures:

2810mm W 2780mm H (x2) & 2840mm W x 2780mm H (x1)

Paint specification: A high build, quick drying primer/topcoat paint specifically designed for use directly on to metal or bare steel, this paint contains zinc phosphate anti-corrosive pigments and is applied with a minimum dry film thickness of 75 microns.

Download a datasheet for DPU48-12
