Drum & IBC Store - DPU32-8RSD
To Hold 32 Drums
- Web Pricing includes mainland UK Delivery
- Worldwide delivery options available - call or email for quotes outside of mainland UK
- 3 & 20 Year Structural Guarantees on selected steel & plastic products
- Emtez are a UK manufacturer
Check our FAQ Page for further information.
Thanks for getting in touch. We will get back to you as soon as possible
Backed by our 20 year structural guarantee*

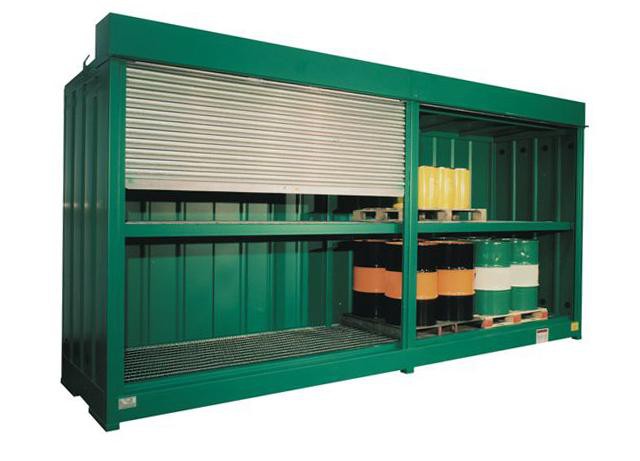

This model is fitted with roller shutter doors to allow access to the entire unit at the same time. The fully seam welded mild steel sump, which fully complies with all the current UK regulations relating to sump capacities is fitted with galvanised steel pallet channels (3 per pallet space), while pallets on the upper level sit directly onto a steel support frame. The base which is fitted with plinths to keep it off the ground and reduce the risk of corrosion is manufactured from mild steel sheet with RHS cross members and pressed ribs.
All the corner posts, shelves, main rails and cross members are constructed from rolled hollow section and the back and sides are pressed from mild steel sheet, which is corrugated where required. The sloping roof is fitted with suitable bracing, is fully welded around perimeter and incorporates crane lifting points). Prior to painting the unit is fully shot blasted to provide a clean and keyed surface.
This model can hold up to 32 x 205ltr drums or 8 x 1000ltr IBC’s across two levels and will accommodate standard 1200mm x 1200mm, 1200mm x 1000mm and 1200mm x 800mm pallets.
*Full details available on request
Type of door lock: Keyed locks
Paint specification: A high build, quick drying primer/topcoat paint specifically designed for use directly on to metal or bare steel, this paint contains zinc phosphate anti-corrosive pigments and is applied with a minimum dry film thickness of 75 microns.
- Air vents
- Galvanised steel grid mesh
Please notify us at the time of ordering if you require any of these options.
This unit will be delivered by an HGV, possibly articulated therefore please ensure that a vehicle of this type can access your premises before ordering and advise us accordingly.
You will require an appropriate size/capacity fork lift truck to offload this item from the delivery vehicle. Our standard delivery doesn’t include any offloading.
The unit must be positioned on a solid level surface, ideally concrete of circa 150mm in depth and 100mm bigger overall than the unit. The purpose of this is to ensure the unit does not settle unevenly when loaded.
|External size:||L5920 x W1500 x H3506mm at the highest point on the unit|
|Lower level clear space:||1335mm H|
|Upper level clear space:||1425mm H|
|Nº of containers:||32 x 205ltr – vertical or 8 x 1000ltr|
|Colour:||Green RAL 6029|
|Type of doors:||2 roller shutter|
|Access apertures:||2760mm W x 2860mm H|
|Type of door lock:||Keyed locks|
|Paint specification:||A high build, quick drying primer/topcoat paint specifically designed for use directly on to metal or bare steel, this paint contains zinc phosphate anti-corrosive pigments and is applied with a minimum dry film thickness of 75 microns.|
