Backed by our 20 year structural guarantee - details available on request.

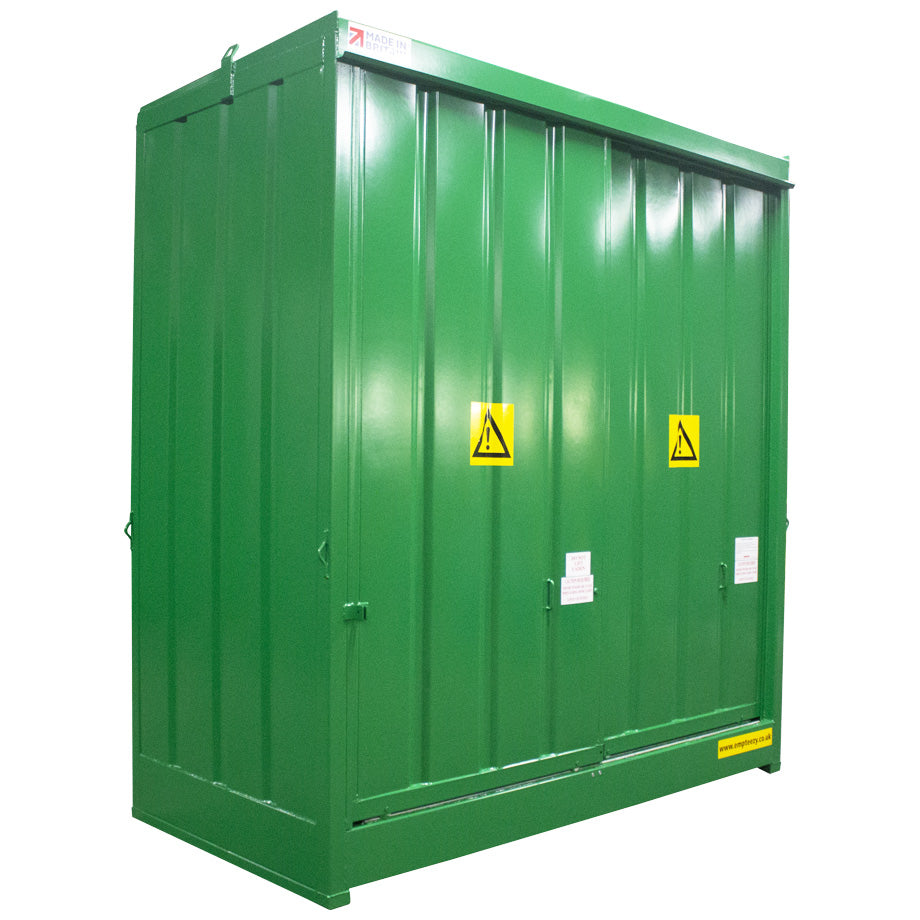

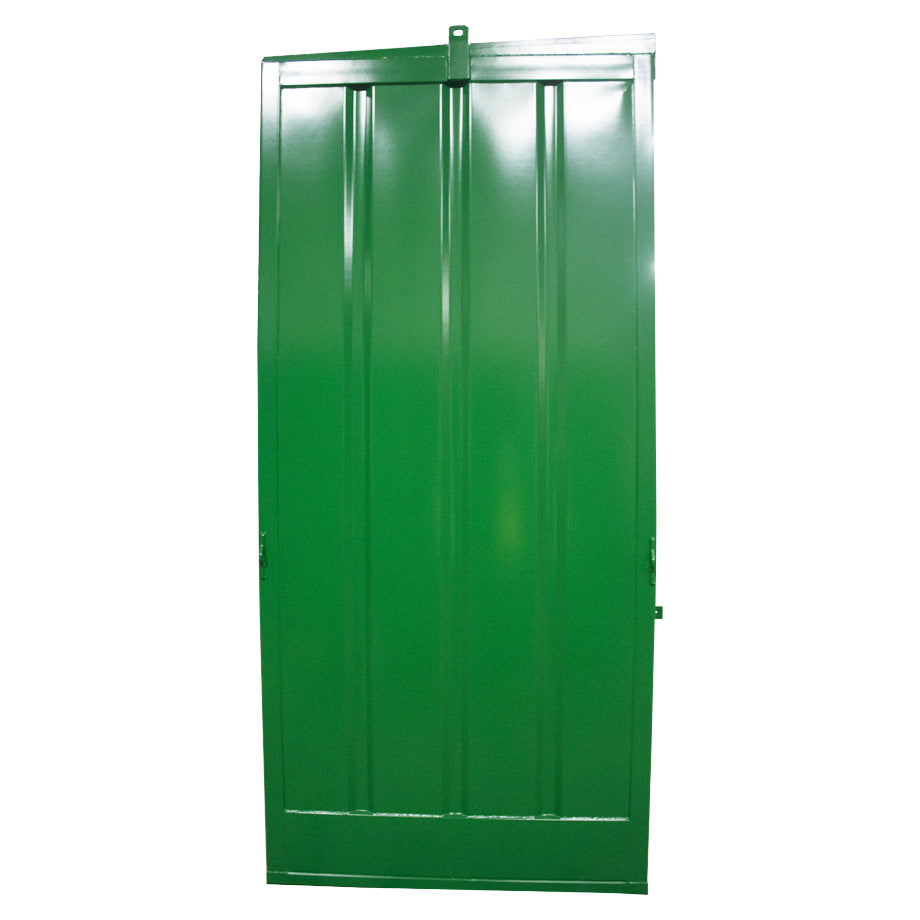

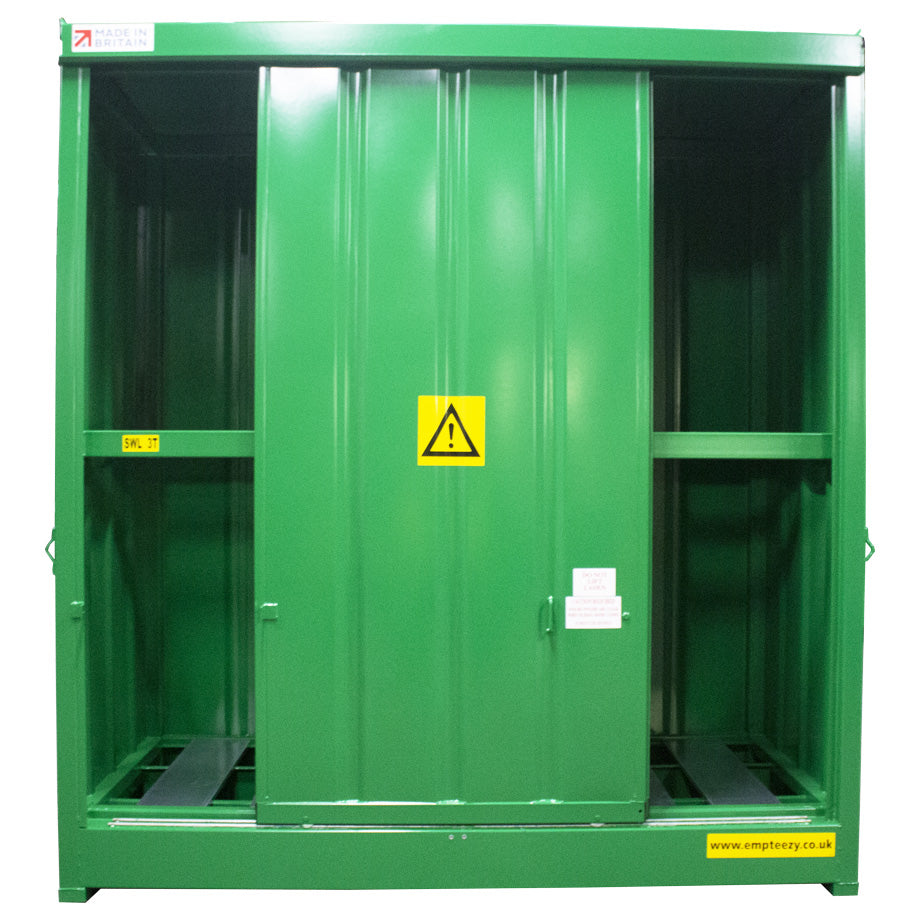

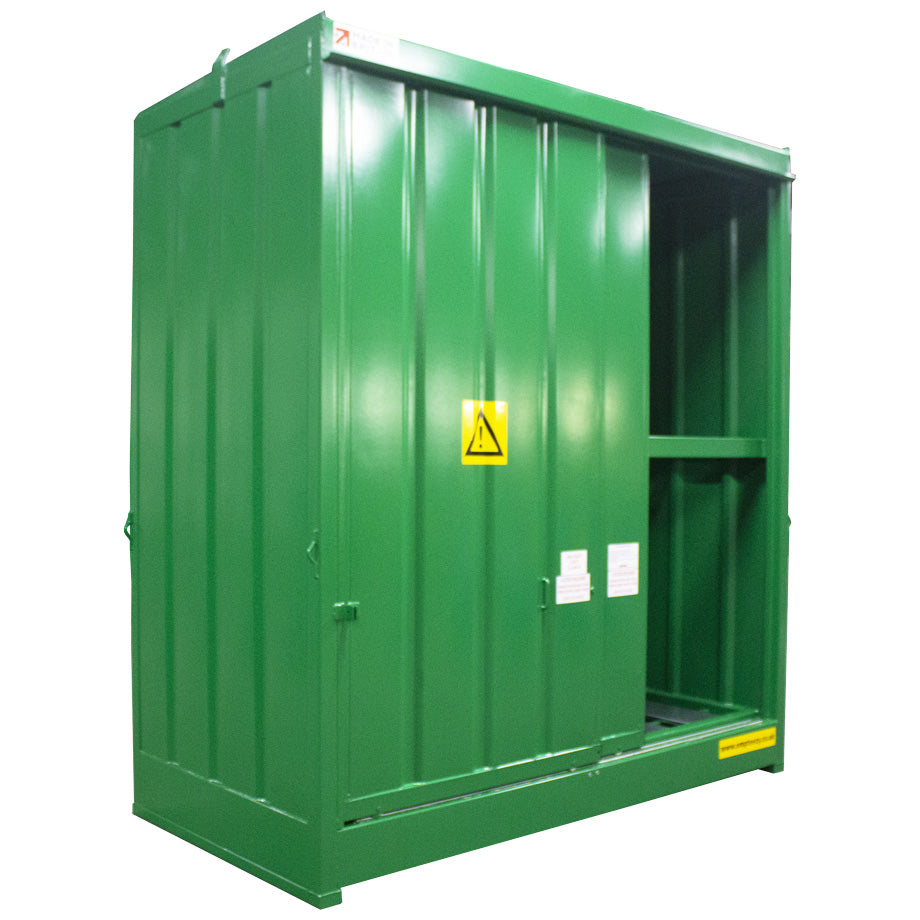

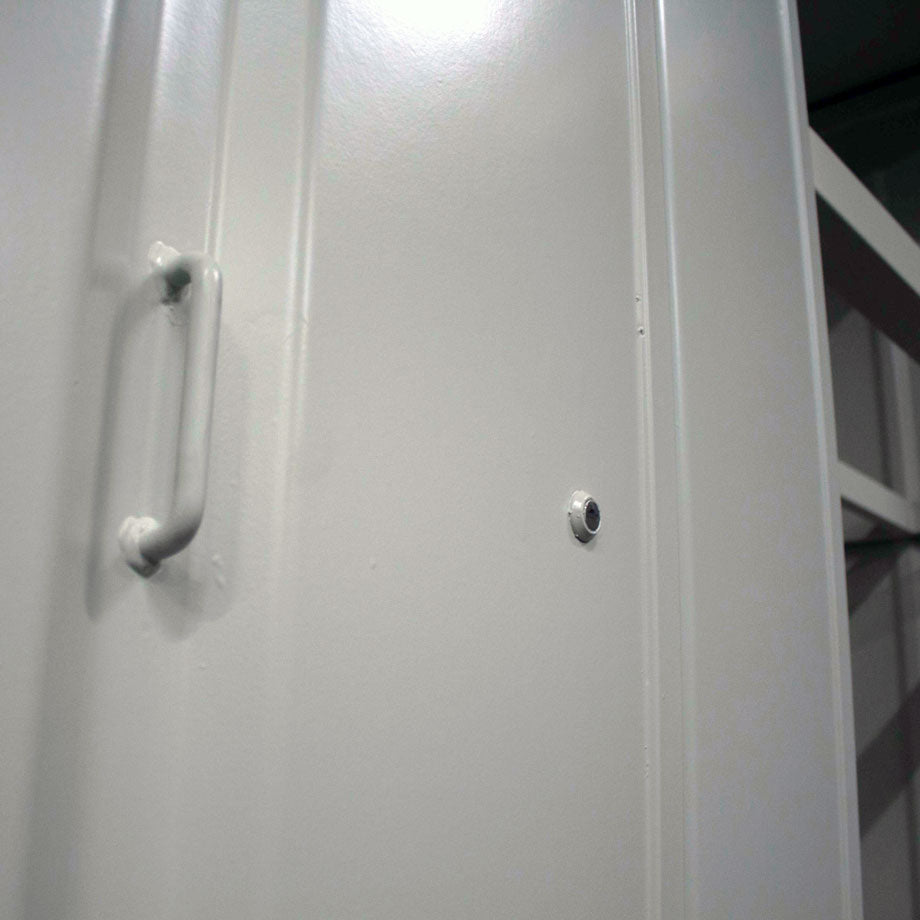

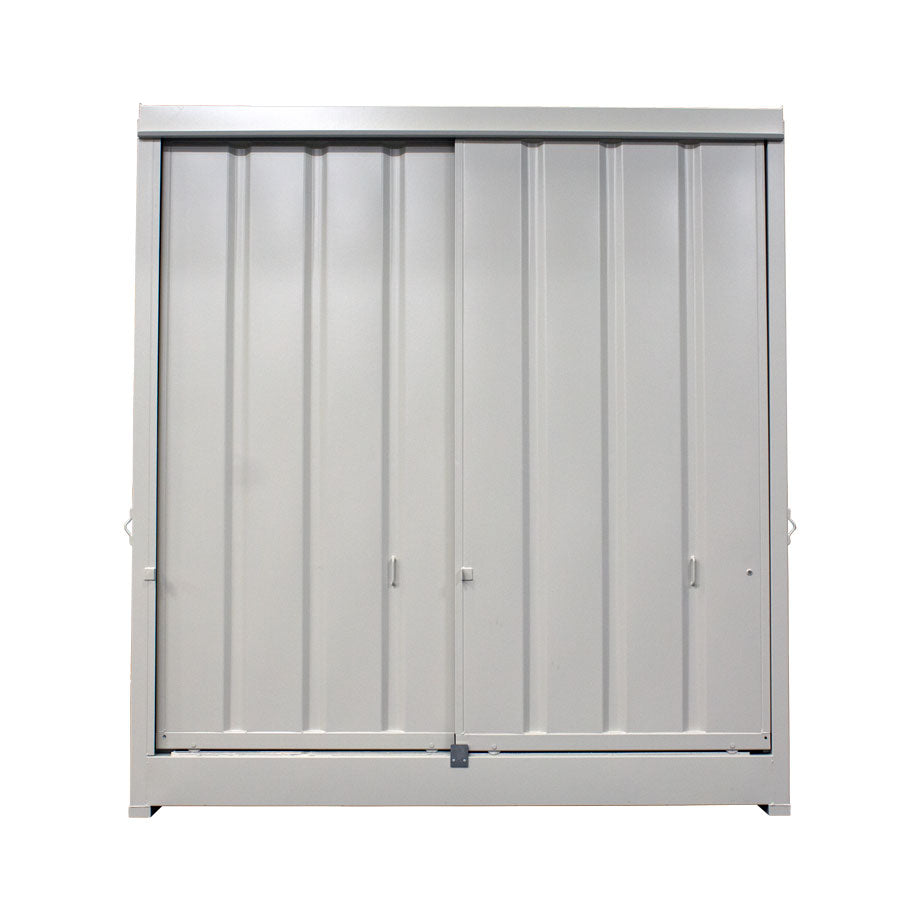

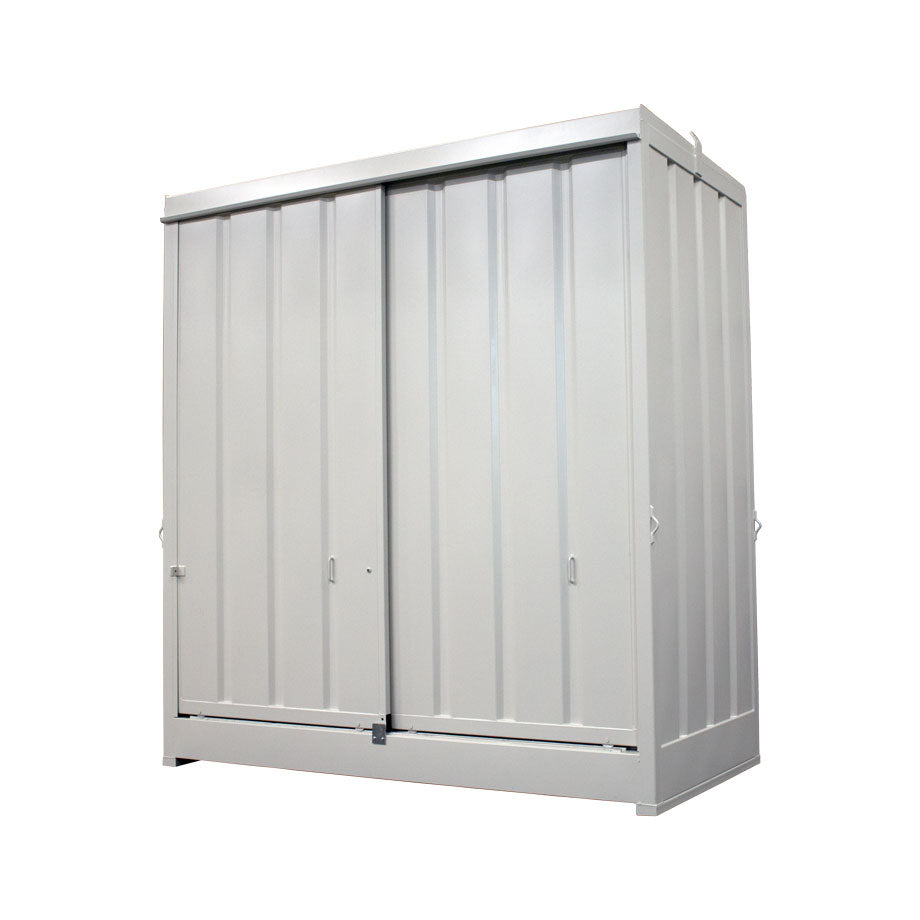

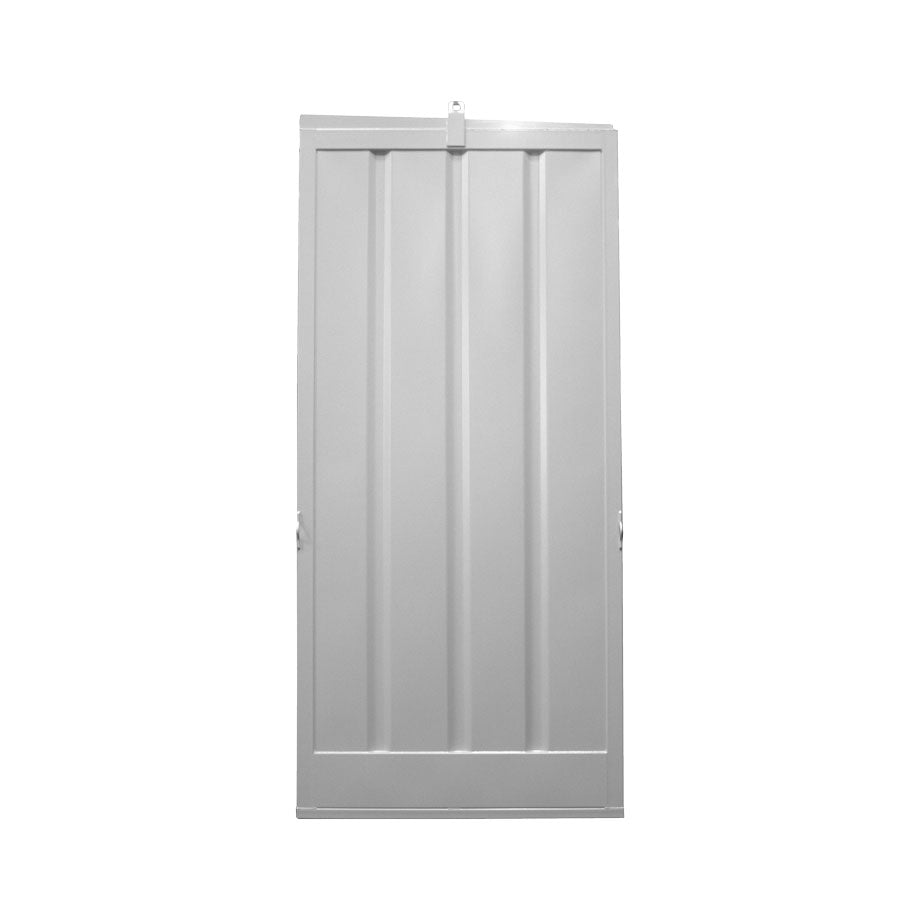

The base of this bunded store is manufactured from 3mm mild steel sheet with RHS cross members and pressed ribs. The corner posts, shelf frames and main rails are all made from rolled hollow section. The back, sides and doors are pressed from 2mm mild steel sheet (corrugated as required for additional strength) while the roof is pressed with suitable bracing.

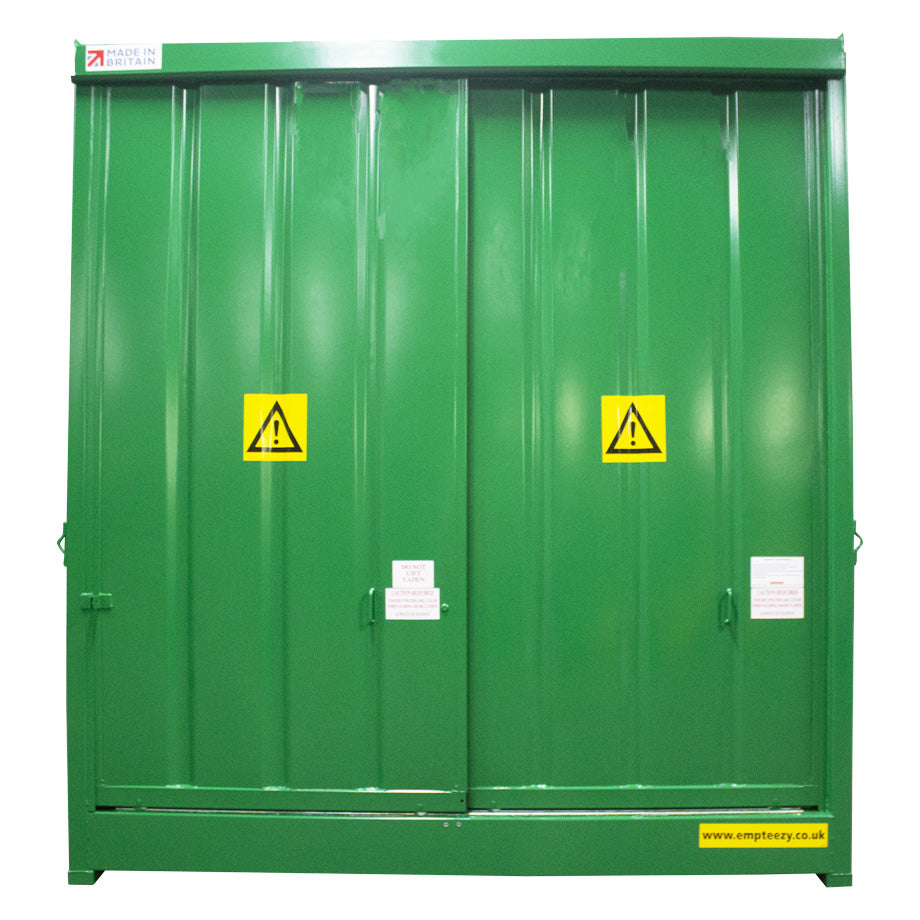

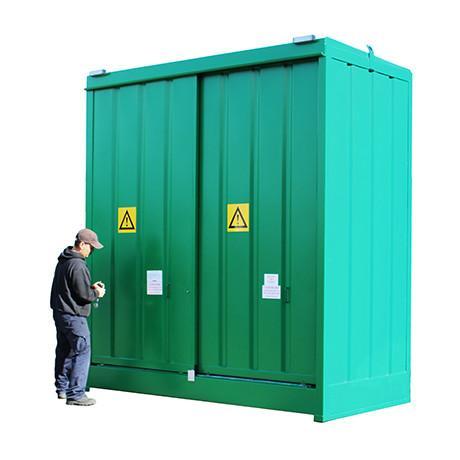

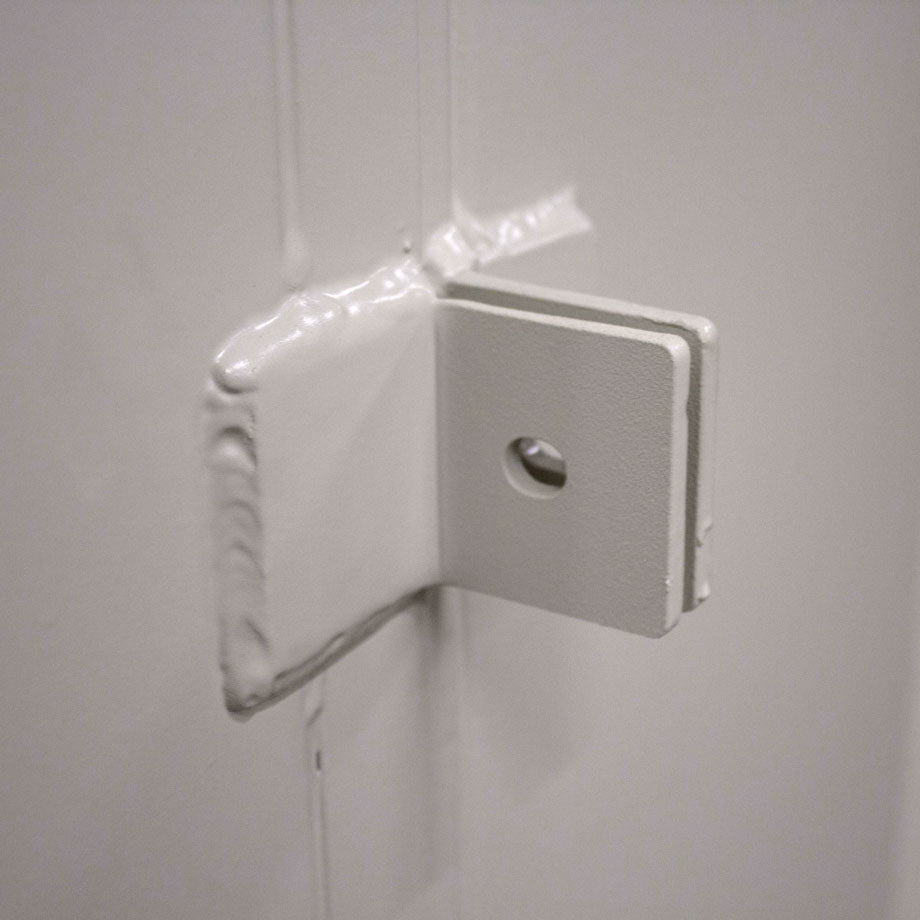

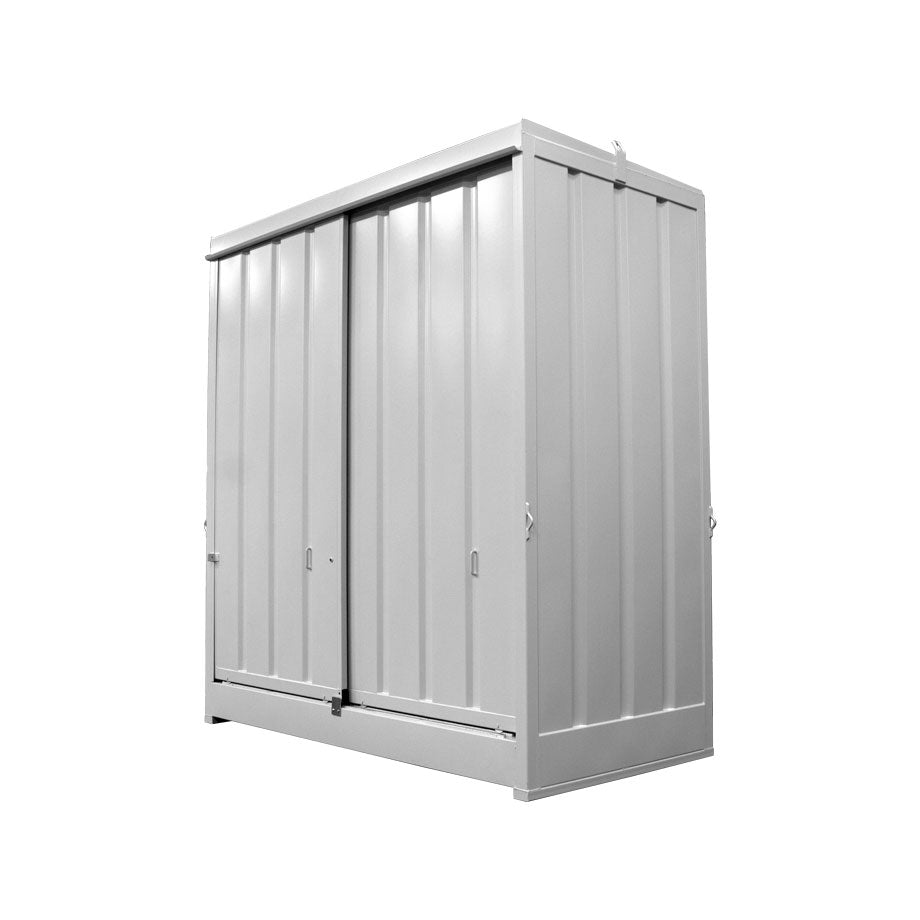

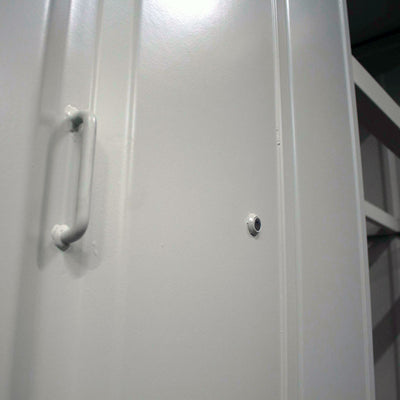

The store is welded around the perimeter (sump fully seam welded), fitted with crane lifting points (maximum 2000kg per lift point), double sliding doors and the unit is shot blasted before being painted.
The sump fully complies with all the UK regulations relating to sump capacities.

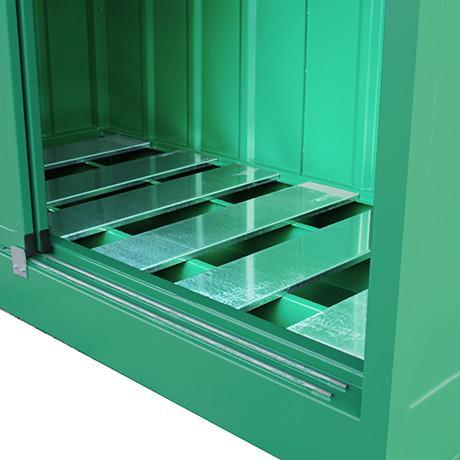

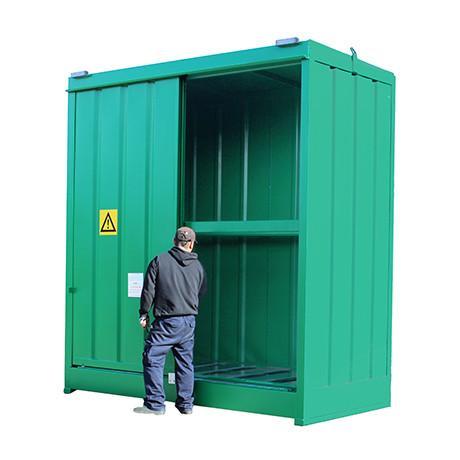

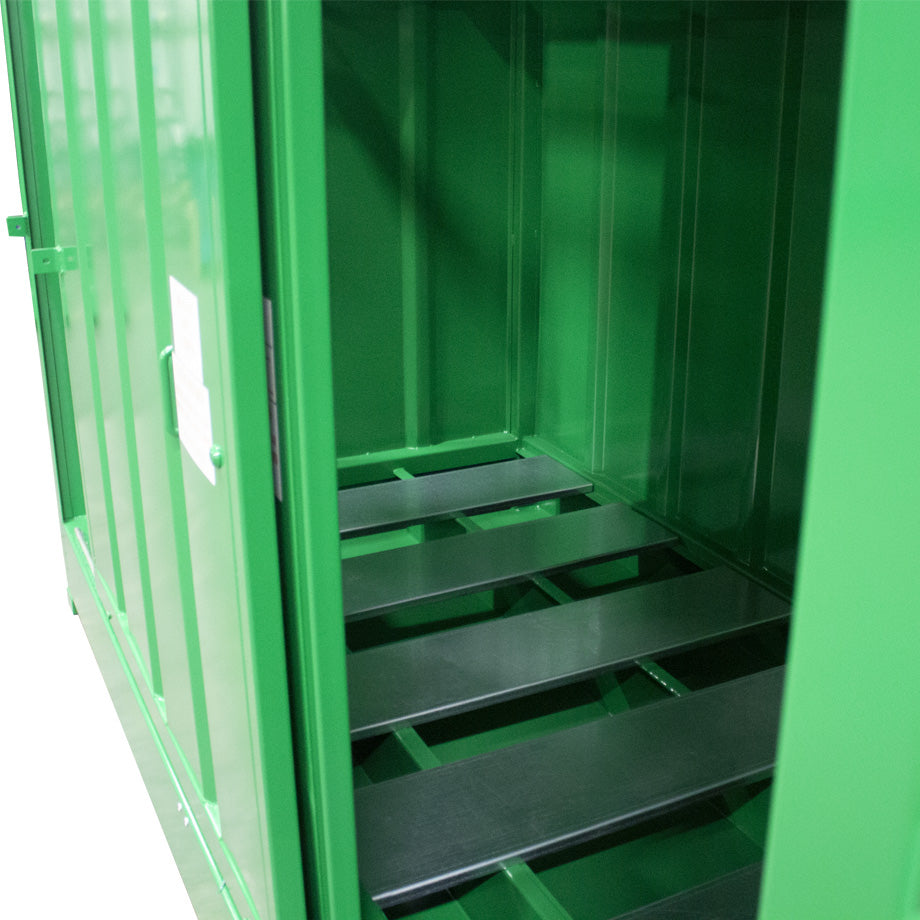

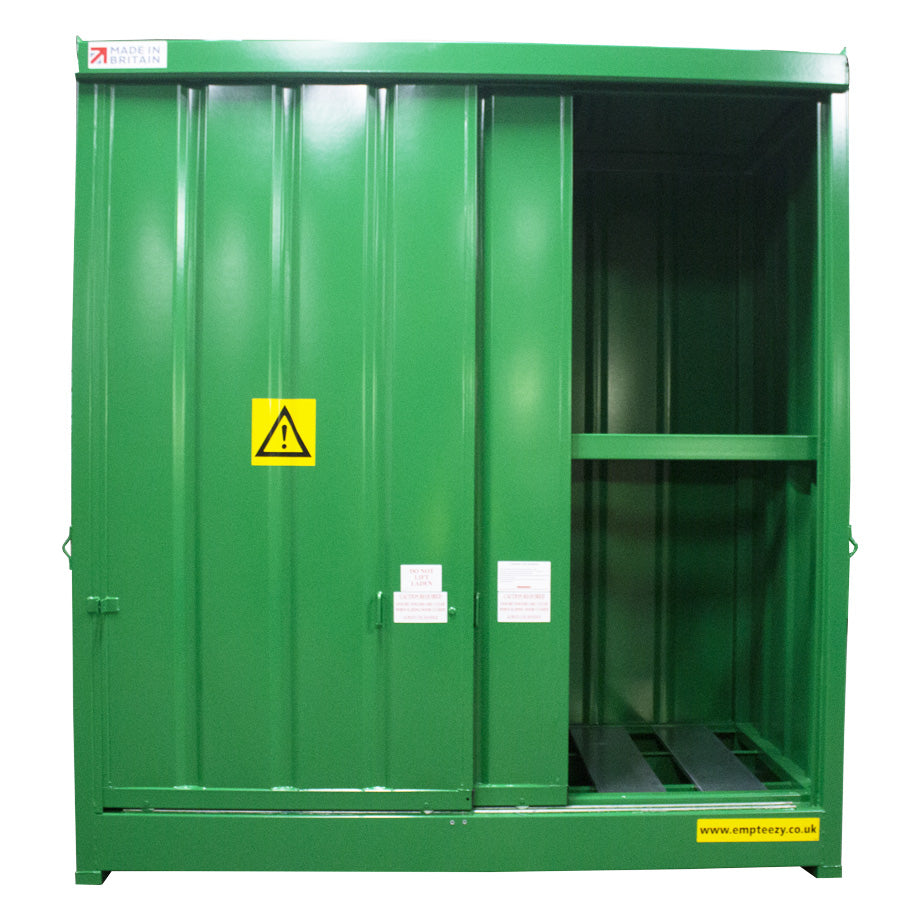

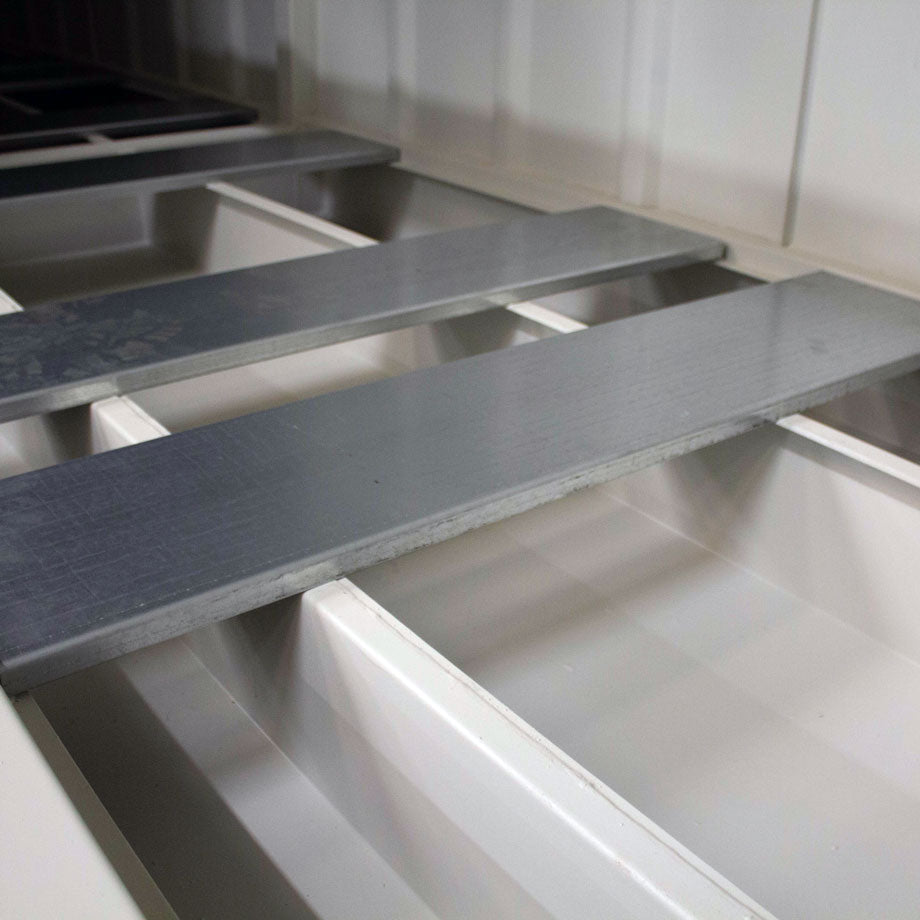

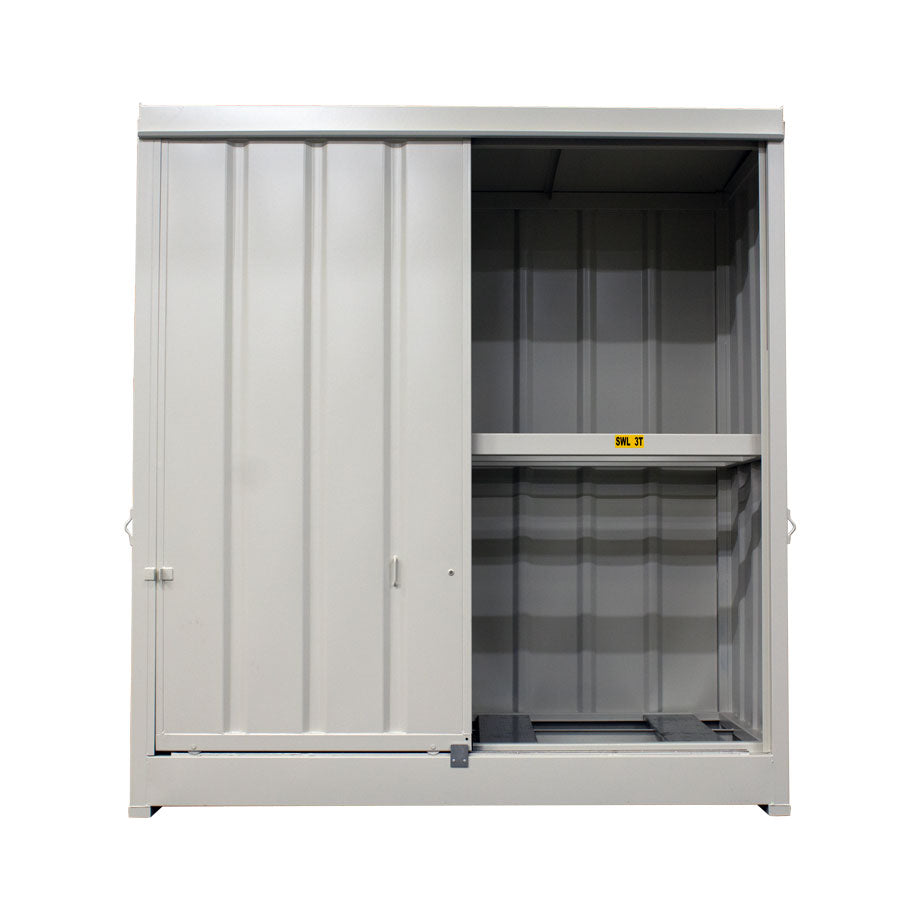

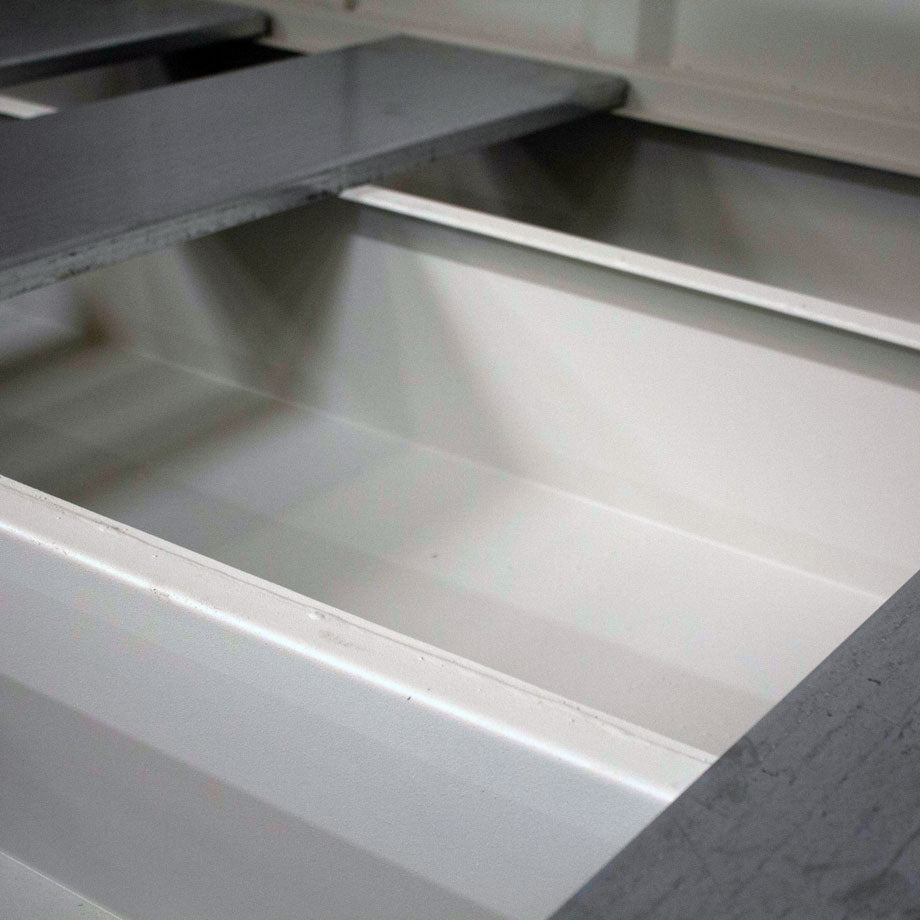

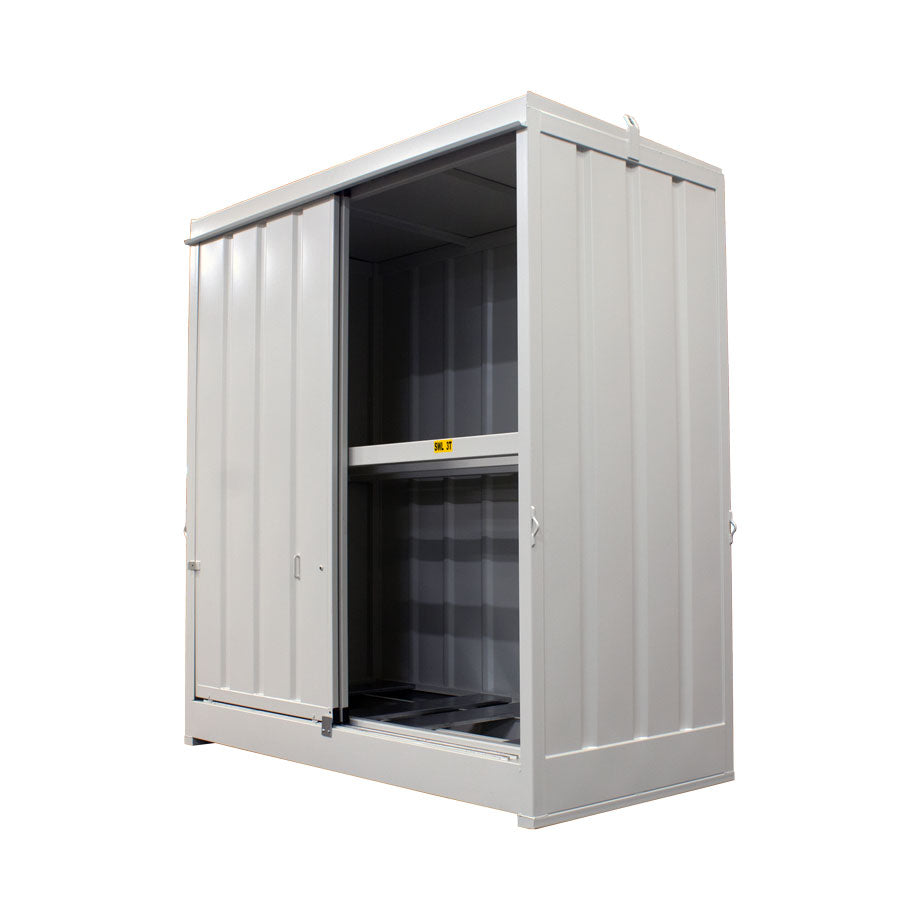

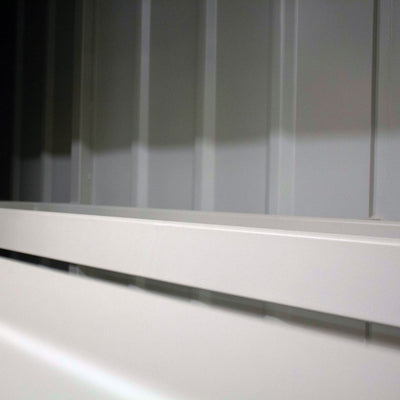

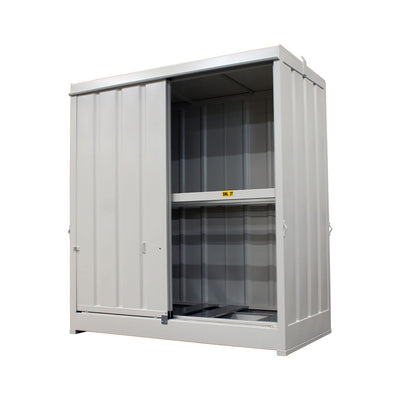

NOTE: The “floor” area above the sump is covered with galvanised steel channel sections so that loose drums or pallets can be stored directly on to it, while the upper shelf is an open, box section construction designed to support pallets. Grid mesh shelving is available for the upper shelf as a chargeable option for those who wish to have it fitted with a full “floor”. Please contact us for further information.
L3000 x W1500 x H3295mm at the highest point on the unit
|Number of containers:
||Sixteen 205ltr drums or four 1000ltr IBCs
||Green RAL 6029
Download a datasheet for DPU16-4
