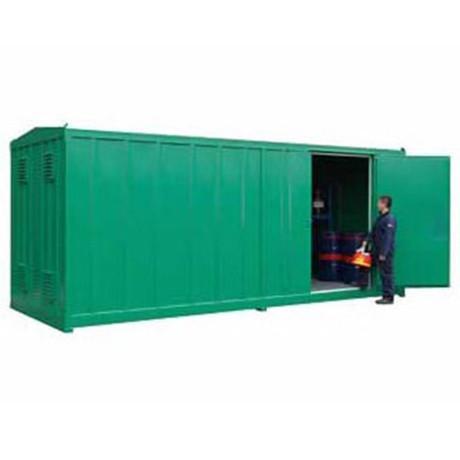

1 Hour Fire Rated Store - CS6FR
(To Hold 108 containers With Floor Space)
Thanks for getting in touch. We will get back to you as soon as possible
Backed by our 20 year structural guarantee - details available on request.
A rolled hollow welded frame creates a strong structure for this fire rated drum store. The walls, 1250mm wide hinged-doors and roof have been in-filled with Rockwool Firebatt insulation and covered with sheet steel to provide 1 hour fire rating.
A 3mm fully seam welded sump, with profiled rib strengtheners, creates a bunded area in case of a spill and base plinths eliminate contact with the ground. High and low level vents fitted with intumescent elements allow air to circulate. However in the event of a fire, these elements will expand and seal the vents, this takes place at temperatures above 150°C.
Shelving is provided on both sides of the store and the bulkhead door, fitted with a single cam door gear mechanism, can be secured with a padlock (not supplied).
The sump fully complies with all the UK regulations relating to sump capacities.
|External size:||L5920 x W2440 x H2658mm at the highest point on the unit|
|Number of containers:||One hundred and eight 25ltr cans|
|Colour:||Green RAL 6029|
