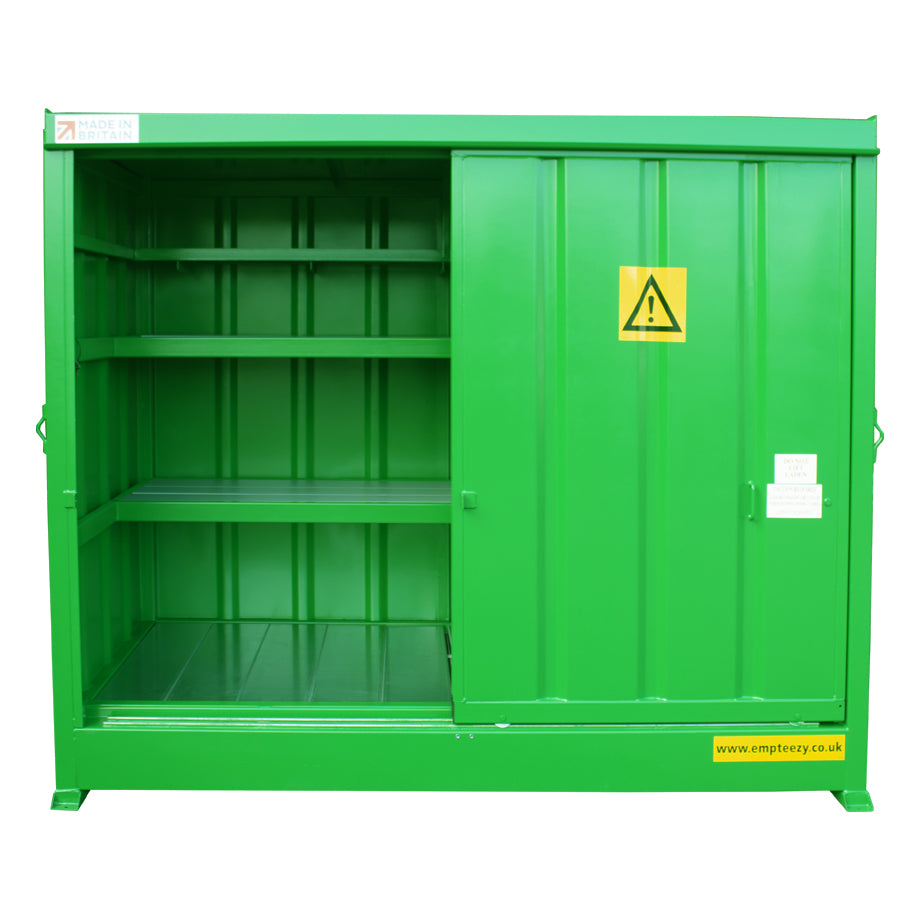

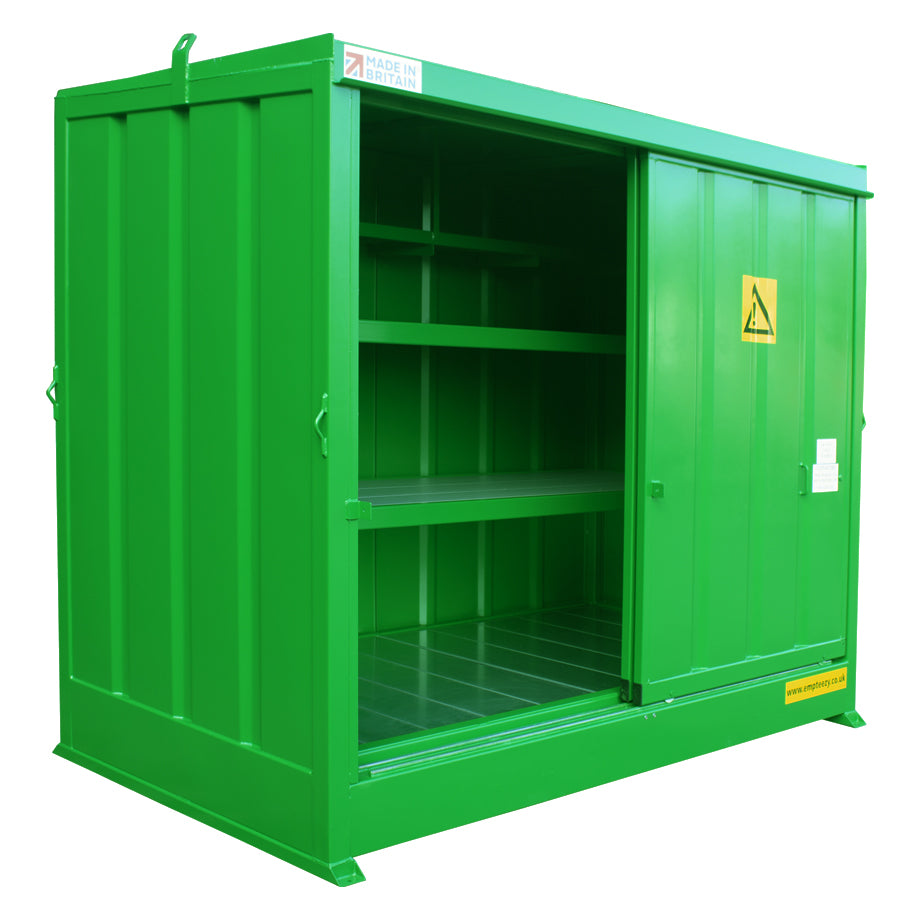

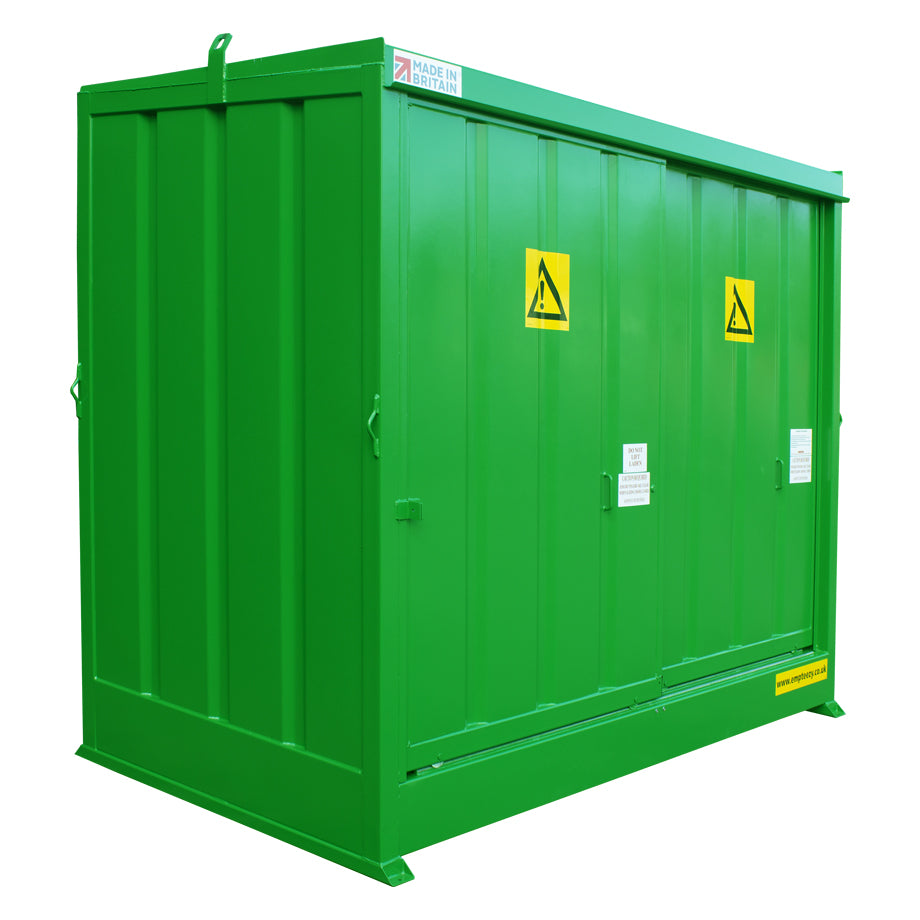

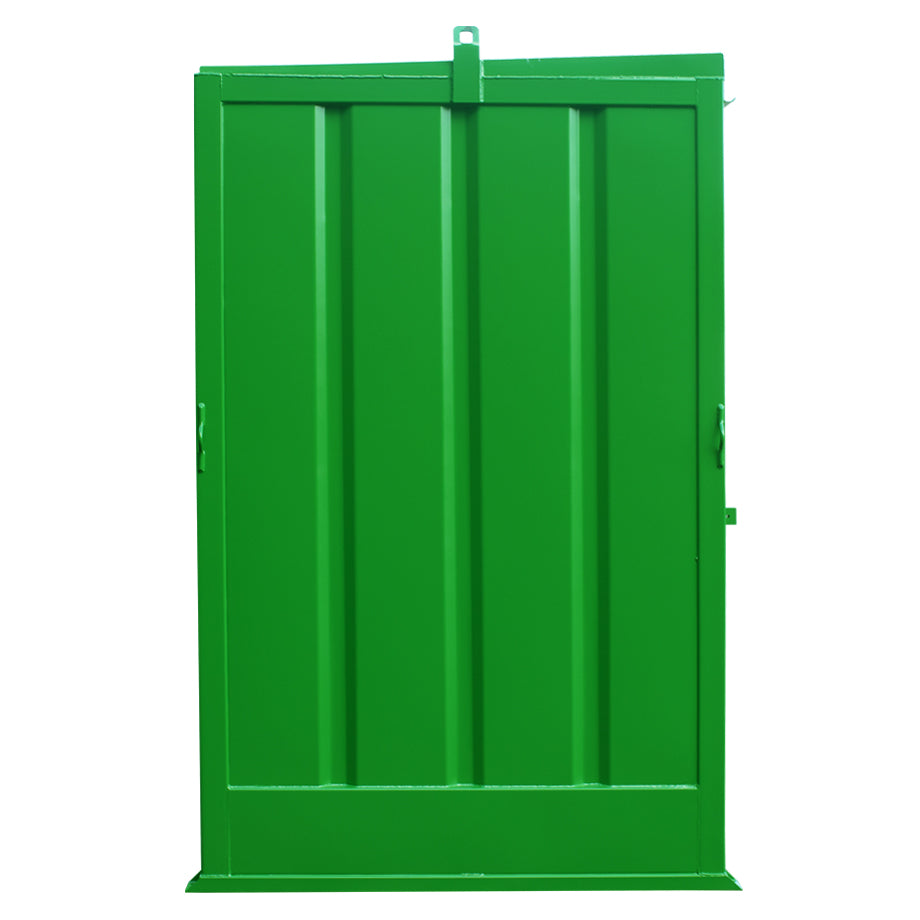

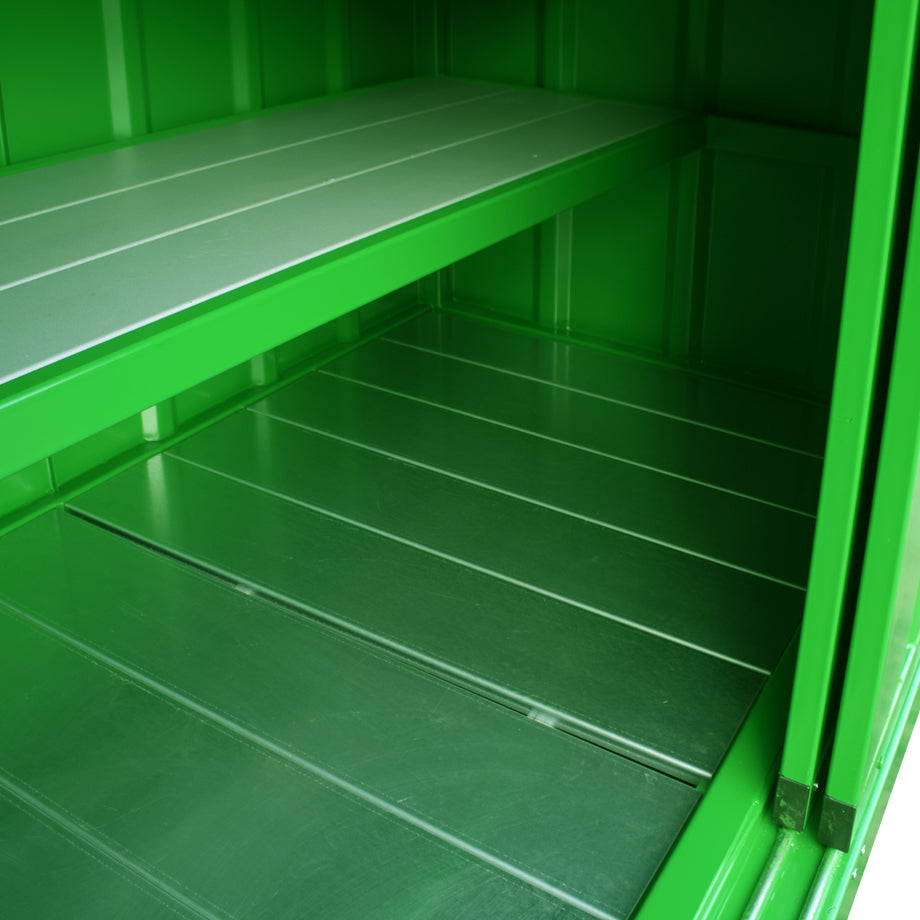

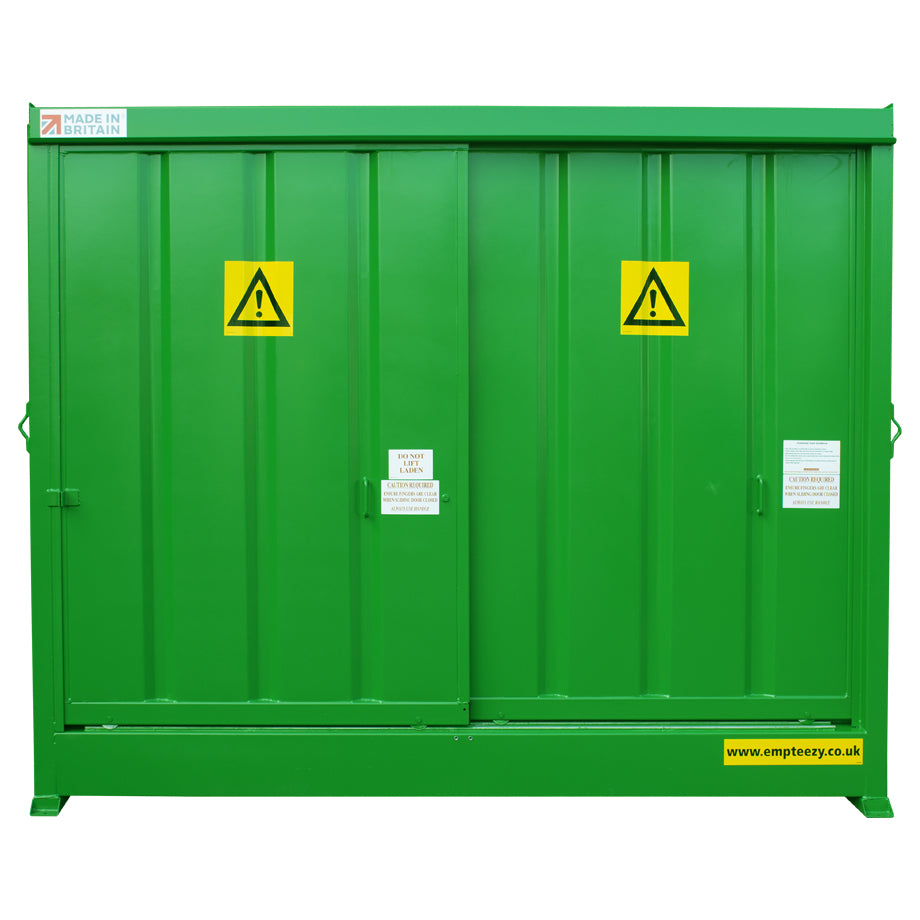

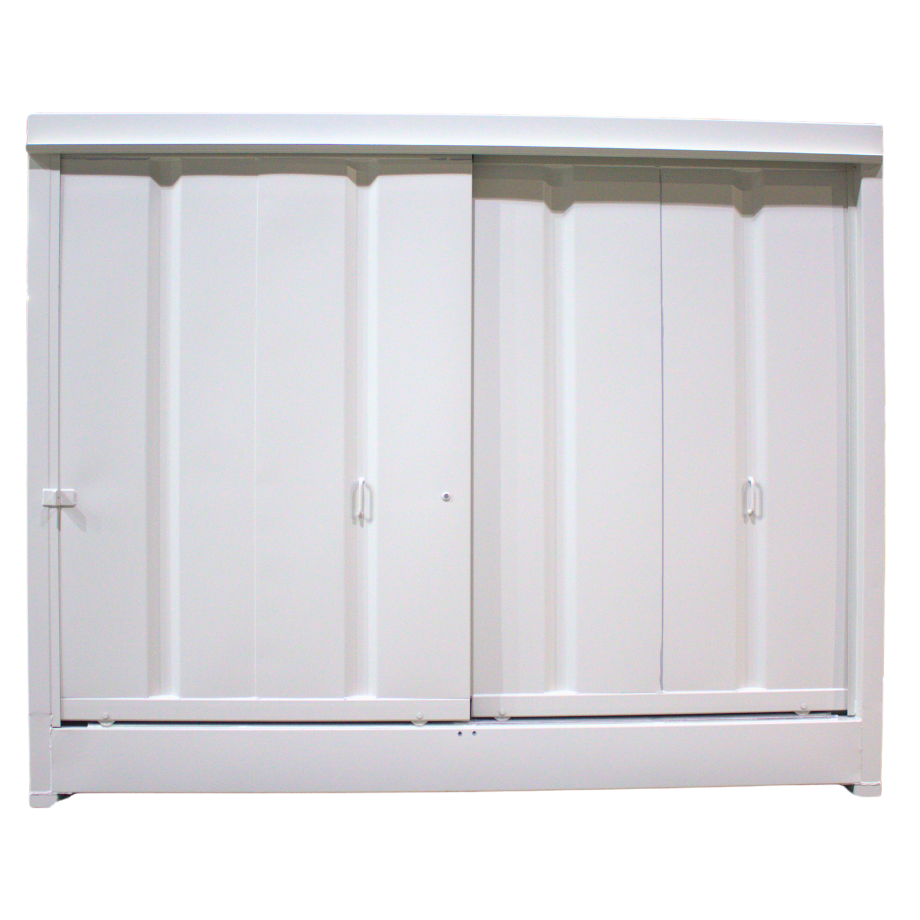

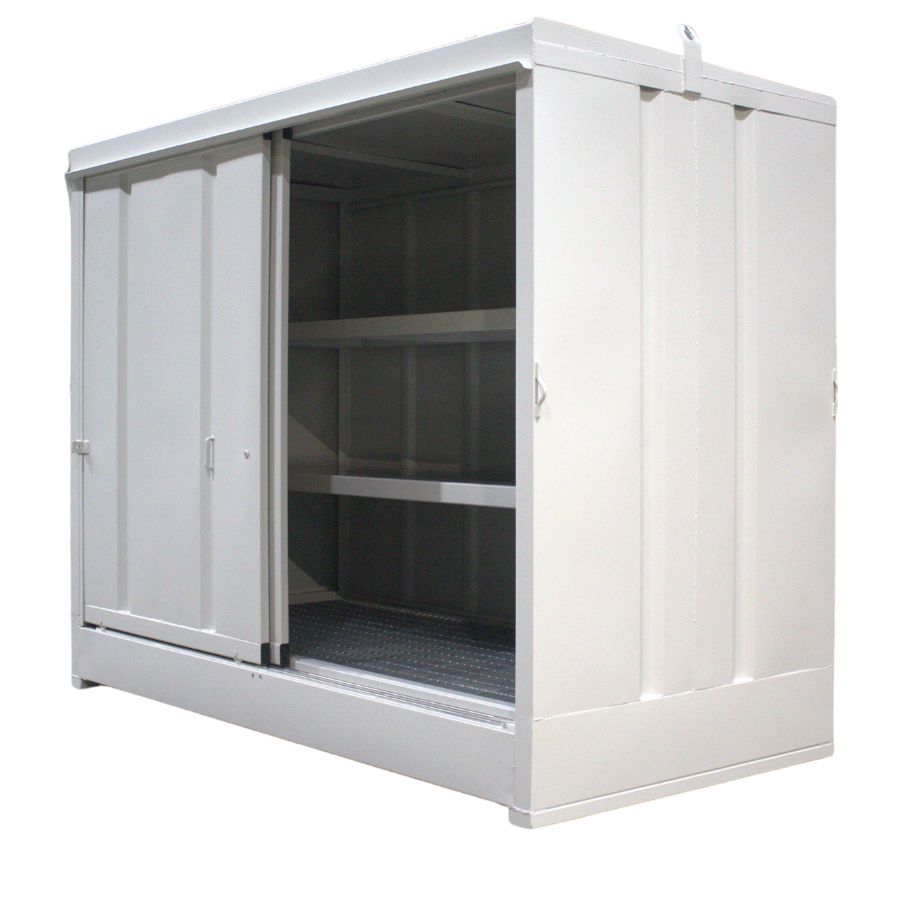

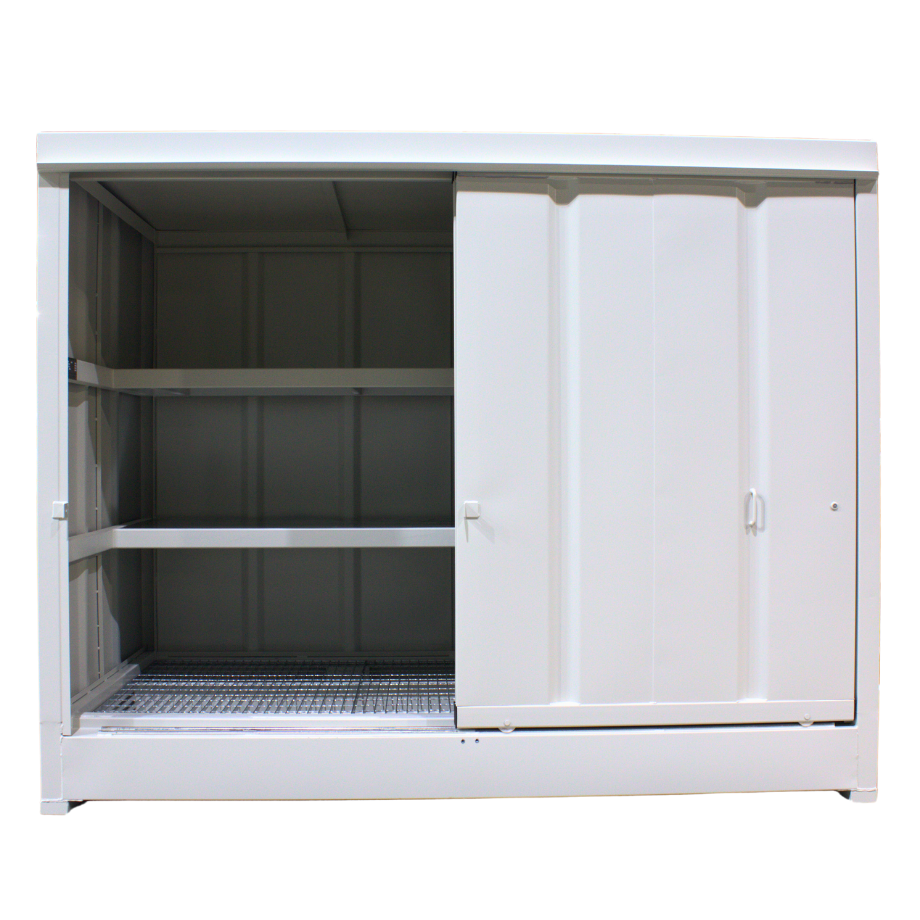

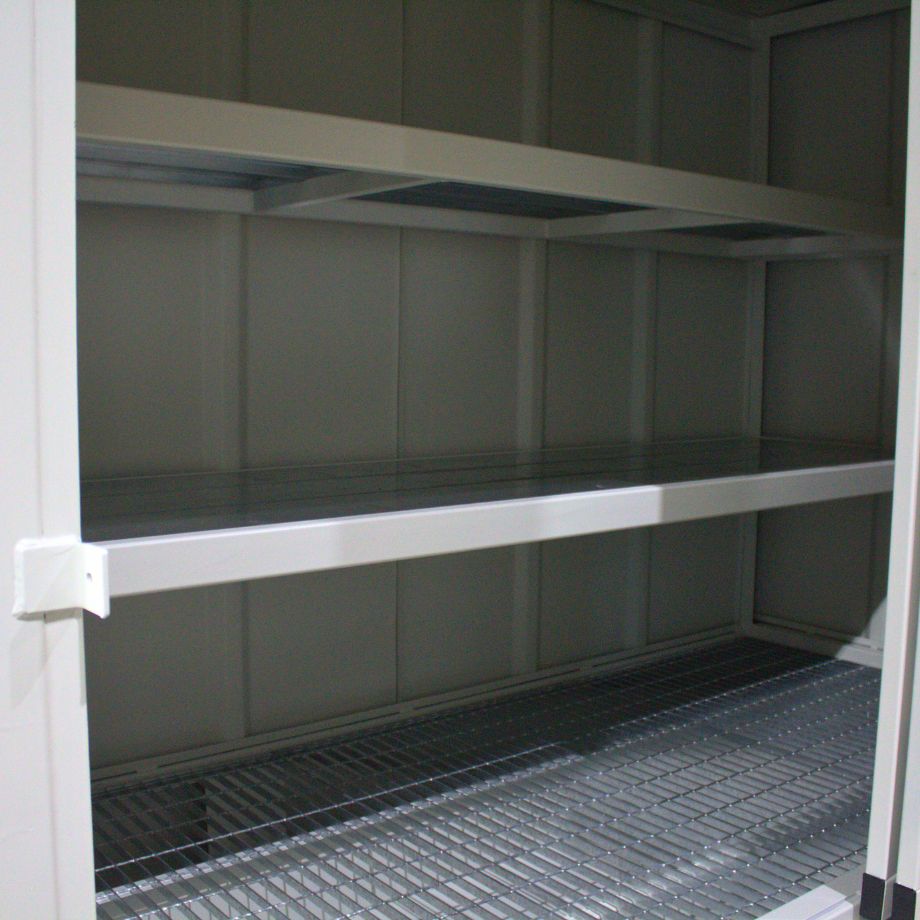

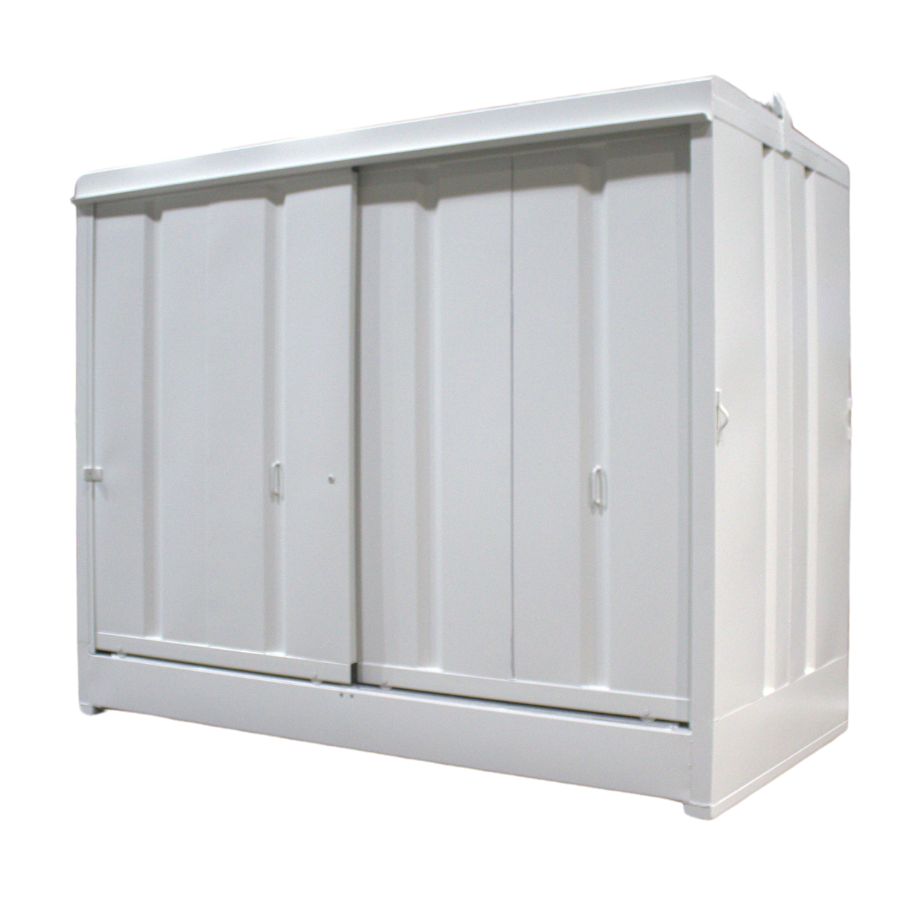

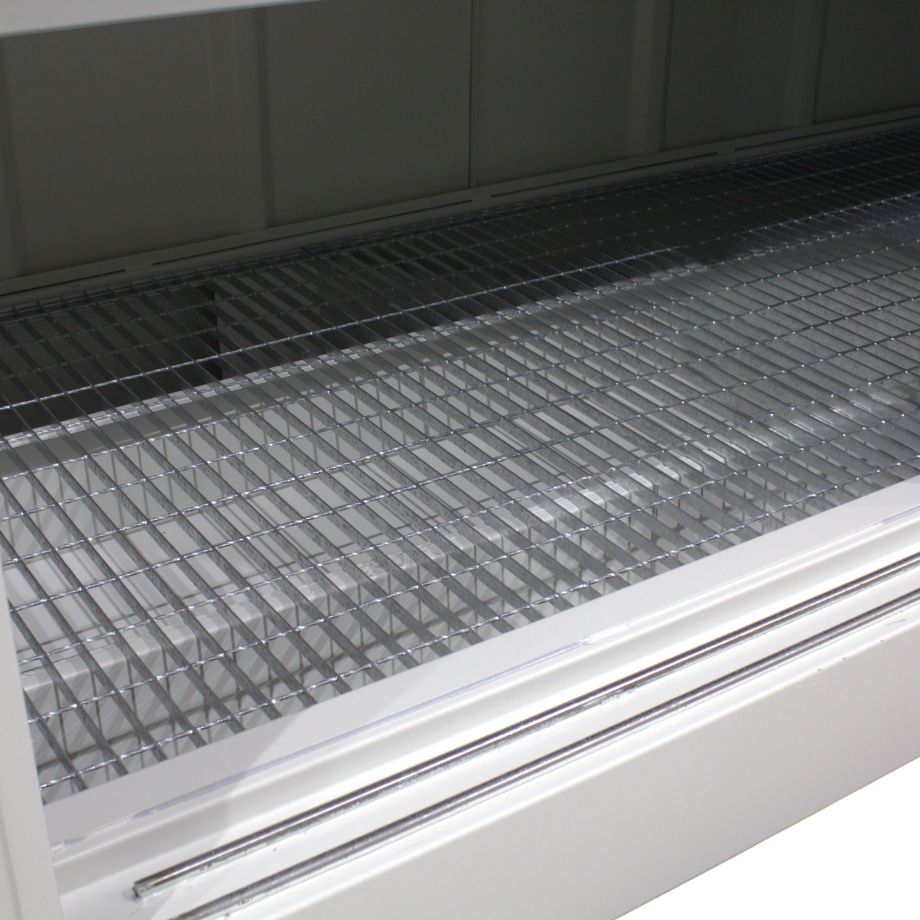

The base is manufactured from 3mm mild steel sheet with RHS cross members, all the corner posts, main rails and cross members are from rolled hollow section and the back side and door panels are pressed from 2mm mild steel sheet corrugated where required. The roof is pressed and fitted with suitable bracing and fully welded around the perimeter. High and low level louvre vents complete with flame arrestor mesh are fitted as standard and the double steel sliding doors run on easy glide tracks. The unit uses grid mesh above the fully seam welded sump, has a full width/full depth shelve and two full width 700mm deep shelves above that. The unit is shot blasted before being painted.
The sump fully complies with all the UK regulations relating to sump capacities.
L3000 x W1500 x H2450mm at the highest point on the unit
|Number of containers:
||80 x 25ltr + 1ltr, 2.5ltr or 5ltr cans
||Green RAL 6029
This unit will be delivered by an HGV, possibly articulated therefore please ensure that a vehicle of this type can access your premises before ordering and advise us accordingly.
You will require an appropriate size/capacity fork lift truck to offload this item from the delivery vehicle. Our standard delivery doesn’t include any offloading.
The unit must be positioned on a solid level surface, ideally concrete of circa 150mm in depth and 100mm bigger overall than the unit. The purpose of this is to ensure the unit does not settle unevenly when loaded.
Download a datasheet for CS3
