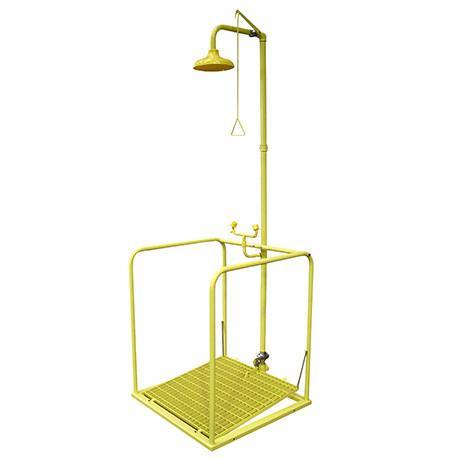

Combination Shower With Self Drain Platform

Combination Shower With Self Drain Platform - CPSE

CPSE

Combination Shower With Self Drain Platform - CPSE

£1,313.00 was

Please note: Prices do not include VAT

Price shown includes delivery to mainland UK address only*

Manufactured using galvanised pipe work which is protected with an anti-corrosive Polyamide 11 high visibility yellow plastic coating to give good resistance to acids, bases, seawater and oils, all fittings are brass and the 250mmØ shower head and eyewash bowl are manufactured from ABS reinforced plastic. The eyewash has two high flow, aerated low pressure outlets fitted with automatic opening dust covers.

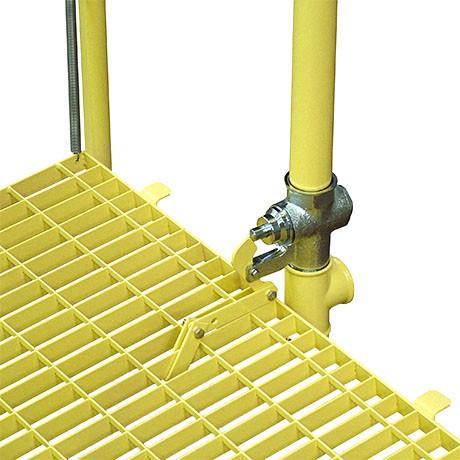

This combination safety shower and eyewash is fitted with an automatic drain system to remove residual water after use and has been designed to meet and exceed the internationally recognised standards: EN15154 parts 1 & 2, DIN12899.3 and ANSI Z358.1.

Water inlet: 1¼” BSP
Water inlet pressure: Recommended 2 bar with a maximum of 8 bar - please notify us prior to ordering if your water pressure is below 1.5 bar
Shower flow rate: Regulated at 110lpm
Shower operation: Pull handle
Shower valve: Automatic drain & full bore 1¼”
Eyewash flow rate: 22lpm
Eyewash operation: Push paddle & foot treadle
Eyewash valve: Automatic drain & full bore ½”
Waste: 1¼” BSP
Total weight: 36kg
Dimensions: 76 x 25 x 20cm

Download a datasheet for CPSE

Download a technical drawing for CPSE
