Backed by our 20 year structural guarantee*
The base is manufactured from 3mm mild steel sheet with RHS cross members and pressed ribs for additional strength. The main frame work is manufactured from rolled hollow section, while the back, sides and door panels are pressed from 2mm mild steel sheet corrugated where required. The roof is fitted with lifting eyes and fully welded around perimeter.

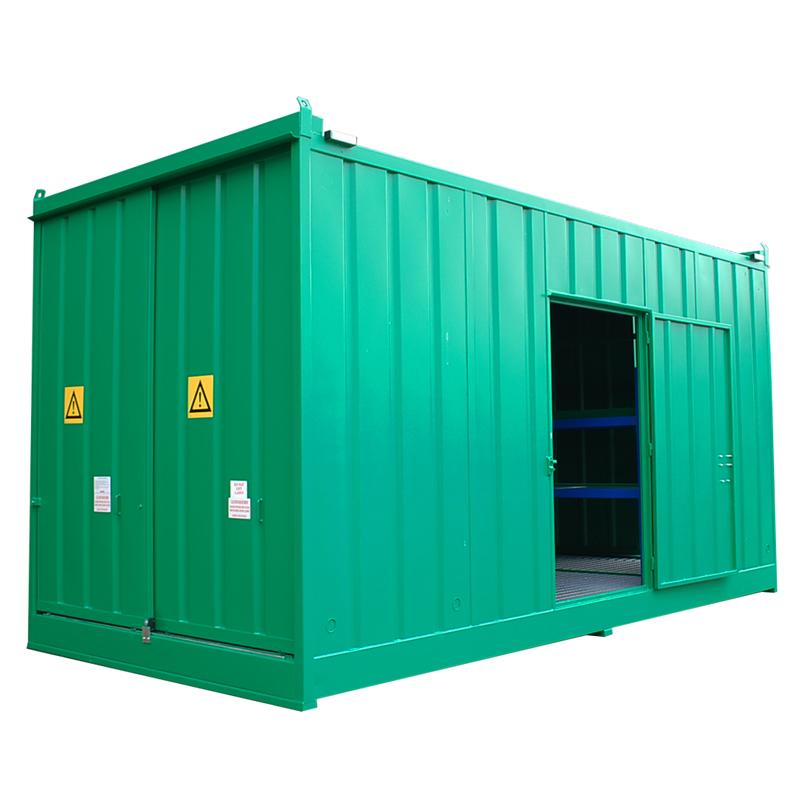

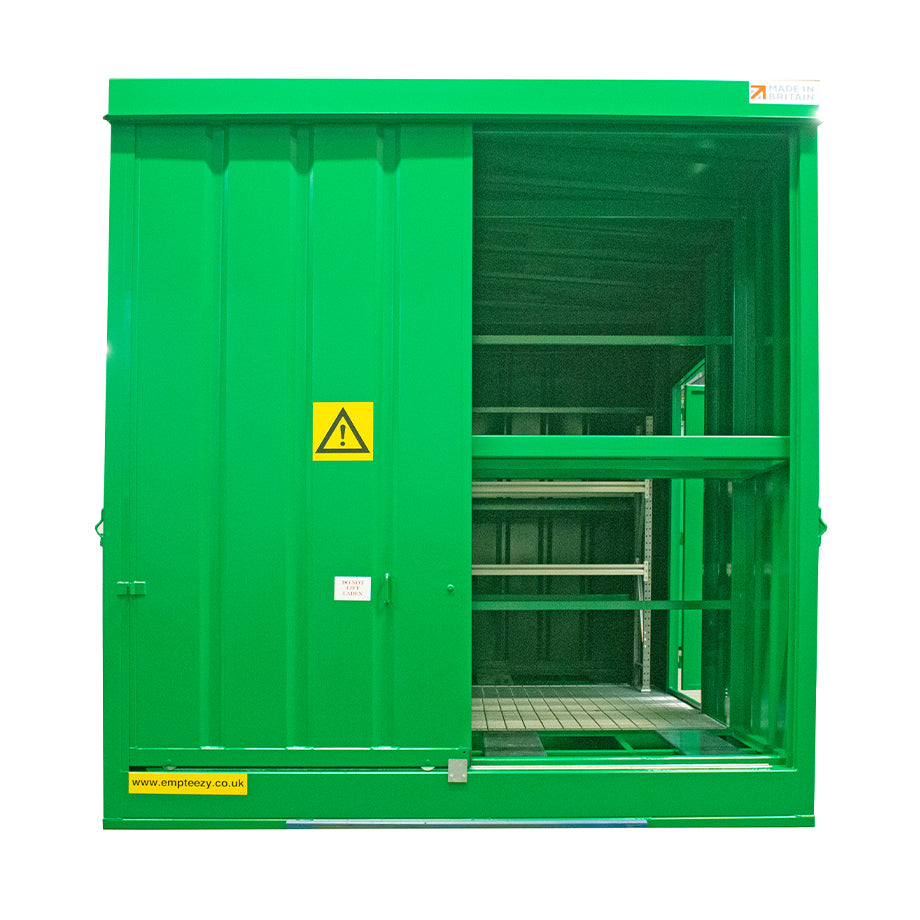

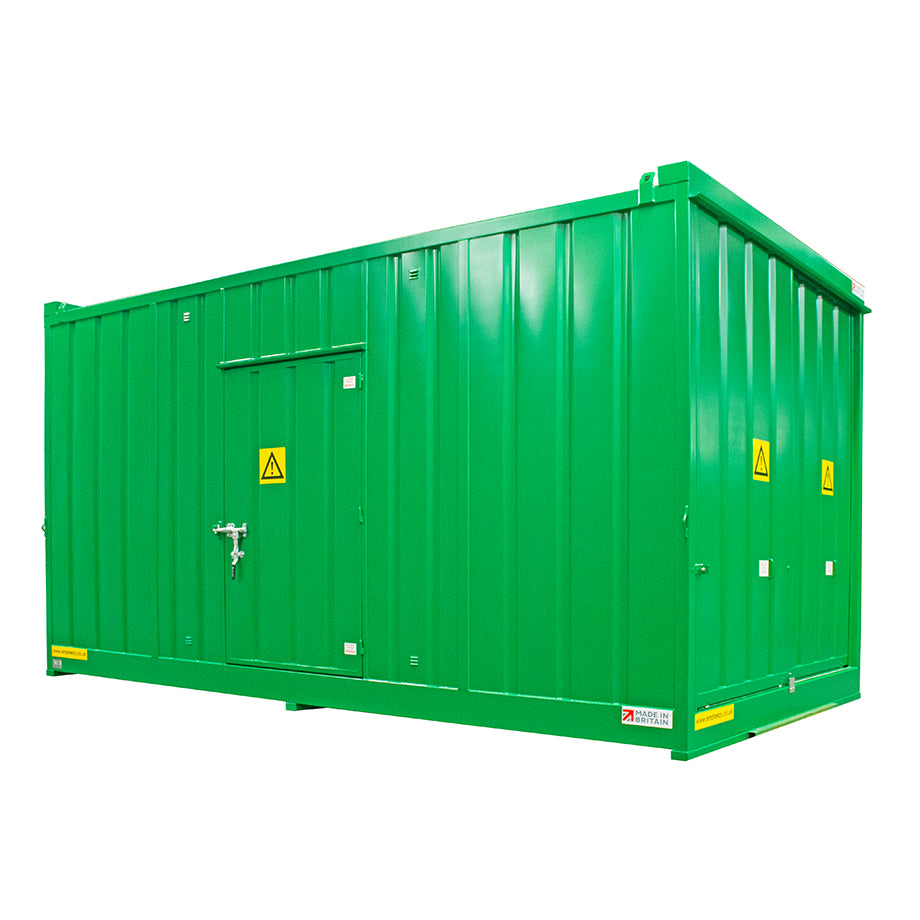

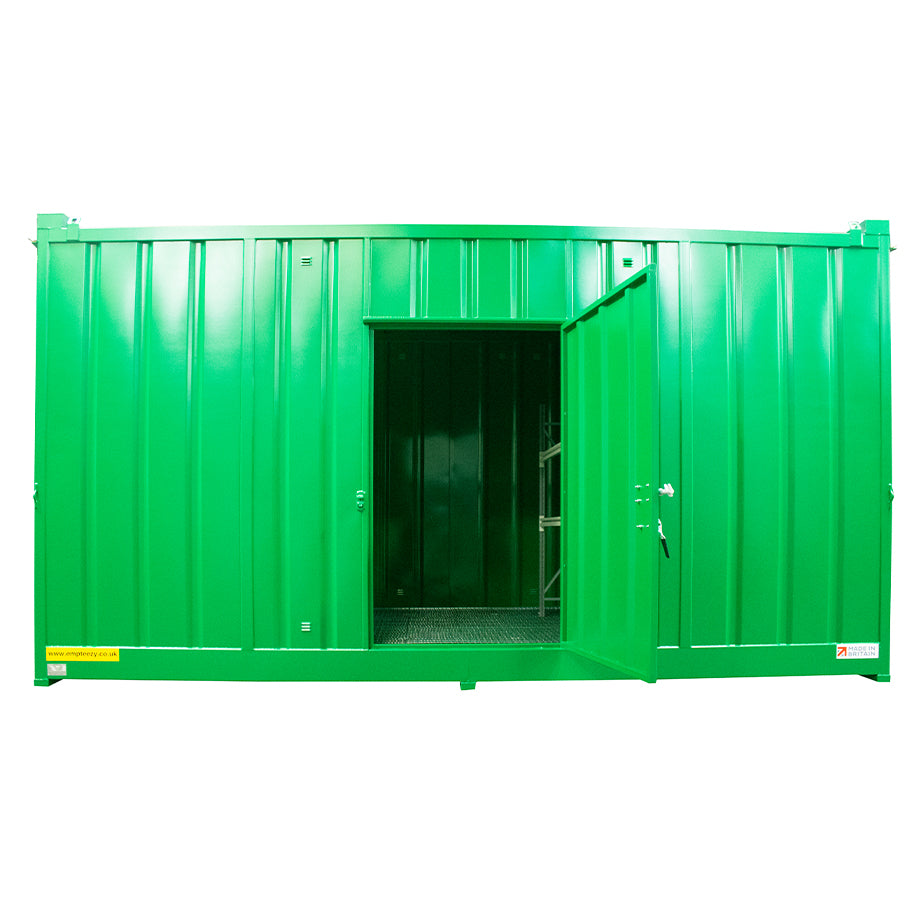

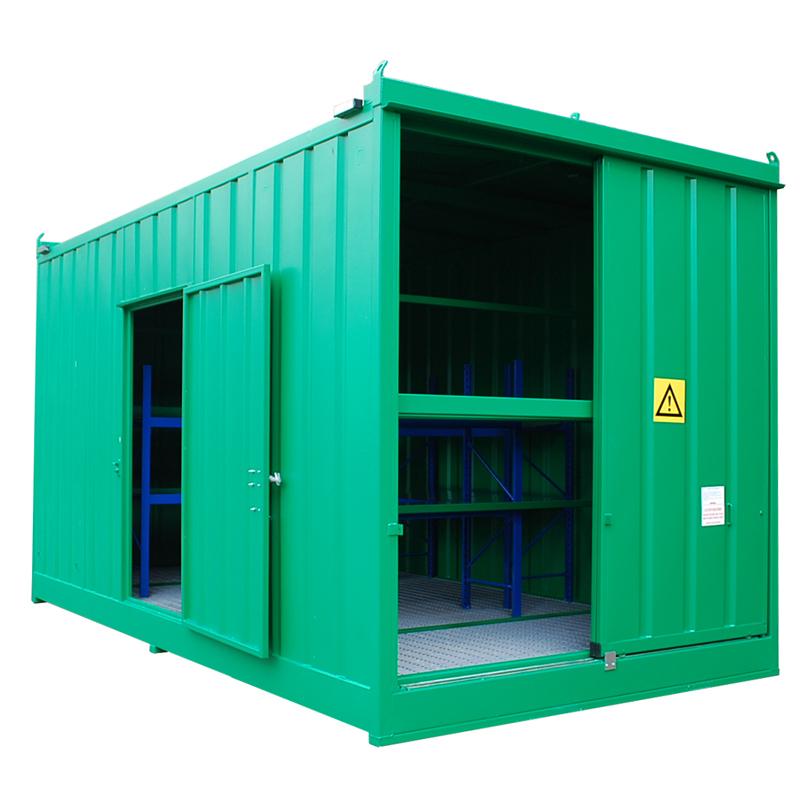

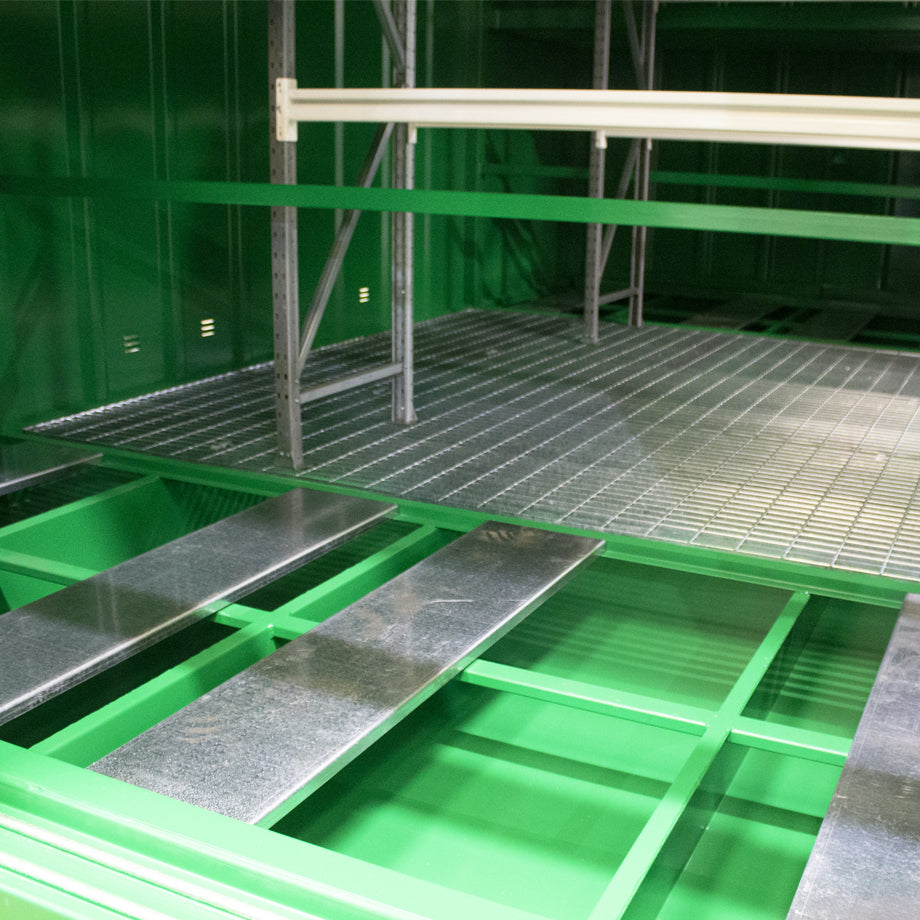

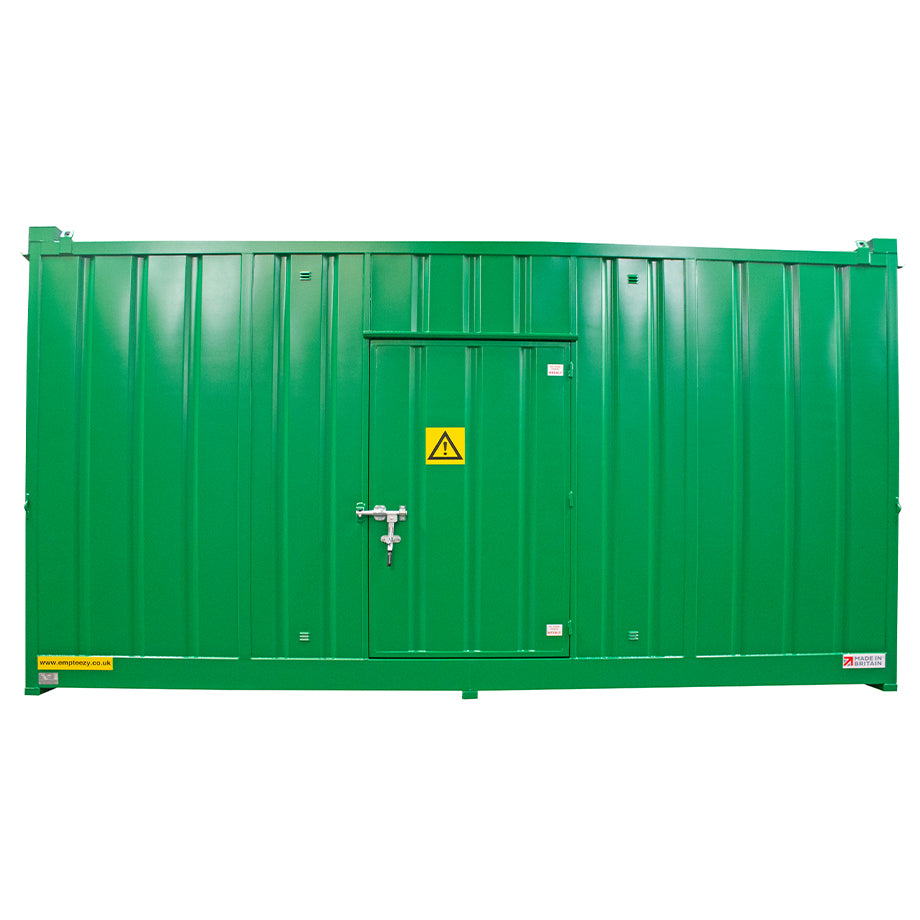

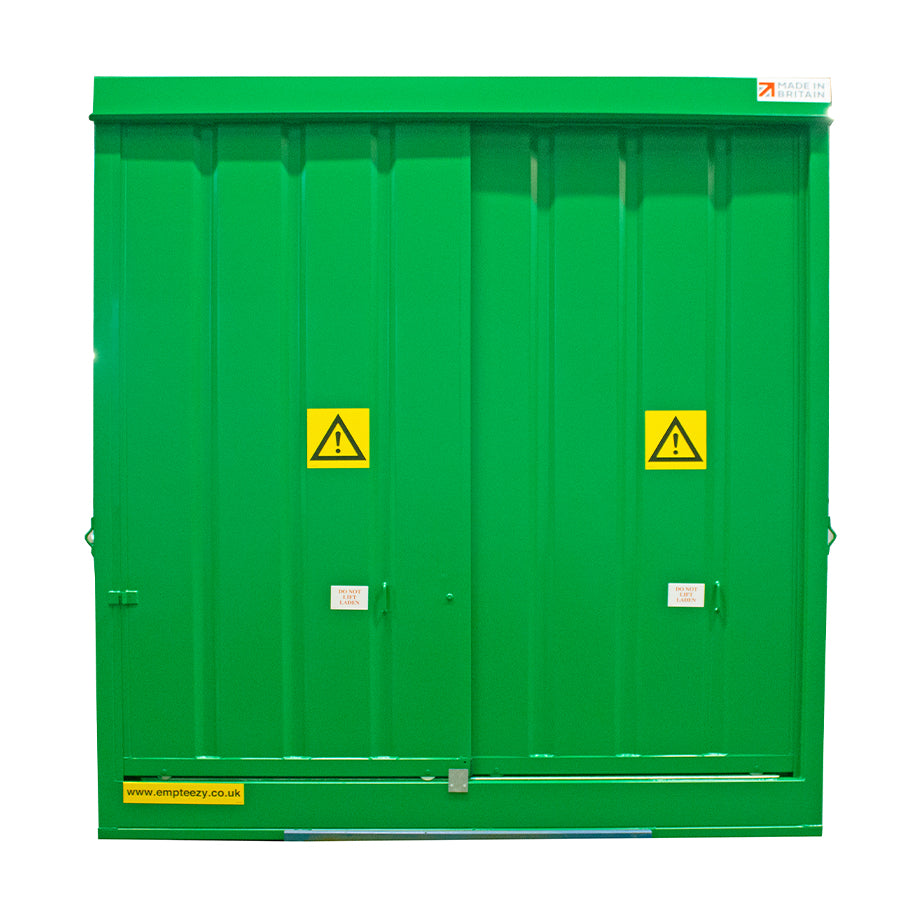

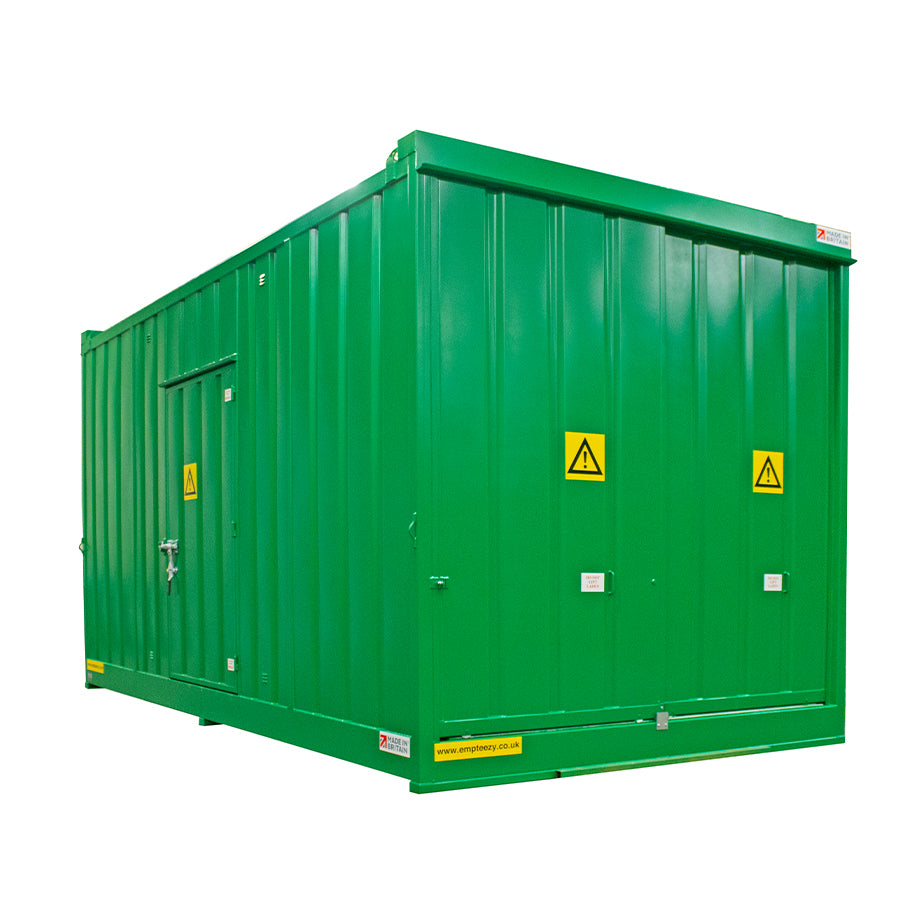

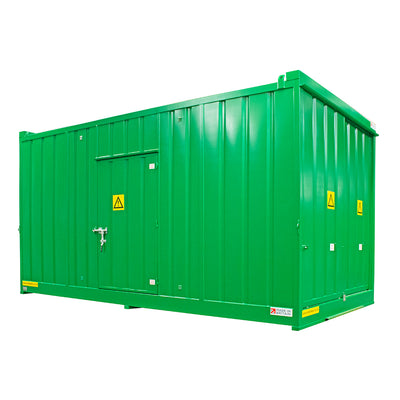

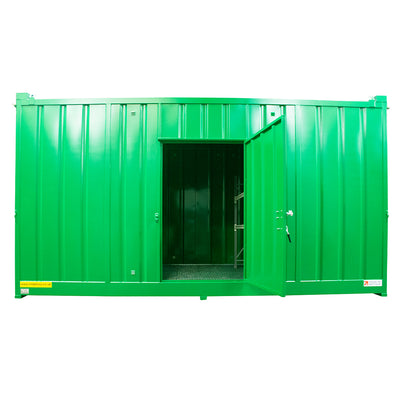

Each end of the unit is fitted with lockable, sliding doors giving access to drum/IBC store areas and the shelved walk-in store (in the middle) is accessed via a hinged door on the side of the unit. The internal divides between the different areas is an open framework and the entire unit is protected by a fully seam welded sump which fully complies with all the current UK regulations relating to sump capacities. The sumps in both the walk-in store and drum/IBC storage areas are covered with galvanized steel grid mesh sections and pallets on the upper level of the drum/IBC store are placed directly onto a steel support frame. The underside of the unit is fitted with plinths to eliminate ground contact and reduce the risk of corrosion, prior to painting the unit is fully shot blasted to provide a clean and keyed surface.
This model can hold a total of 32 x 205ltr drums or 8 x 1000ltr IBC’s across two levels and will accommodate standard 1200mm x 1200mm, 1200mm x 1000mm and 1200mm x 800mm pallets, plus the walk-in area which contains shelving for small containers.
*Full details available on request
Full dividing walls between the different compartments
Please notify us at the time of ordering if you require any of these options.
This unit will be delivered by an HGV, possibly articulated therefore please ensure that a vehicle of this type can access your premises before ordering and advise us accordingly.
You will require an appropriate size/capacity fork lift truck to offload this item from the delivery vehicle. Our standard delivery doesn’t include any offloading.
The unit must be positioned on a solid level surface, ideally concrete of circa 150mm in depth and 100mm bigger overall than the unit. The purpose of this is to ensure the unit does not settle unevenly when loaded.
||FLK accessed store at both ends with a walk-in store in the middle
||6000mm L x 3000mm W x 3325mm H at the highest point of the unit
|Lower level clear space:
||1334mm H in the FLK accessed stores
|Upper level clear space:
||1350mm H in the FLK accessed stores
|Walk-in area internal size:
||3m x 3m
|Nº of containers:
||32 x 205ltr or 8 x 1000ltr
|Number of rack sets:
|Rack set size:
||1930mm L x 620mm W x 1800mm H (overall)
|Number of shelves per rack set:
|Load capacity per shelf:
|Incremental adjustment for shelving:
||Green RAL 6029
|Load capacity per level:
||2000kg (x4) FLK access stores
|Type of doors:
||4 sliding (2 per FLK accessed store) & 1 hinged
|Type of door lock:
||Padlock points & keys lock + Cam-lock gear (Padlocks not supplied)
||1360mm W x 2780mm H & 1250mm W x 2170mm H
||A high build, quick drying primer/topcoat paint specifically designed for use directly on to metal or bare steel, this paint contains zinc phosphate anti-corrosive pigments and is applied with a minimum dry film thickness of 75 microns.
FLK = Fork Lift Truck
